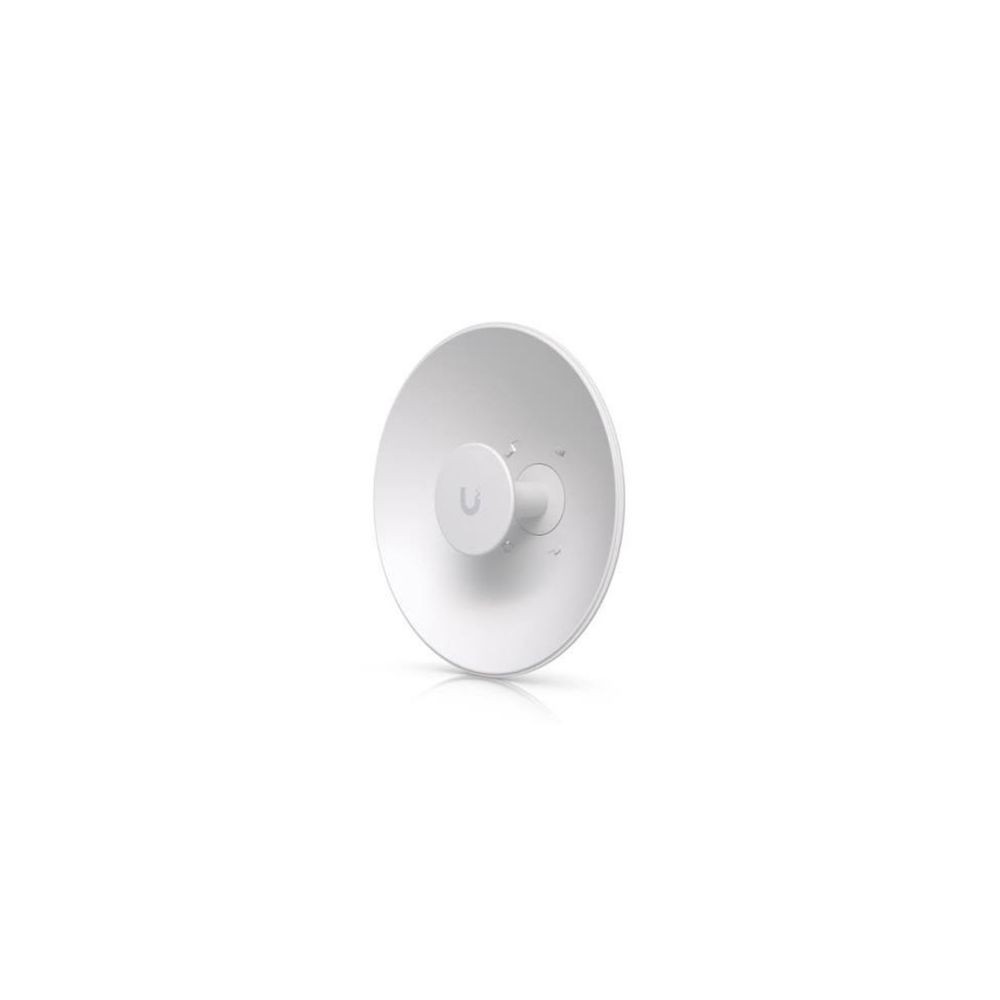

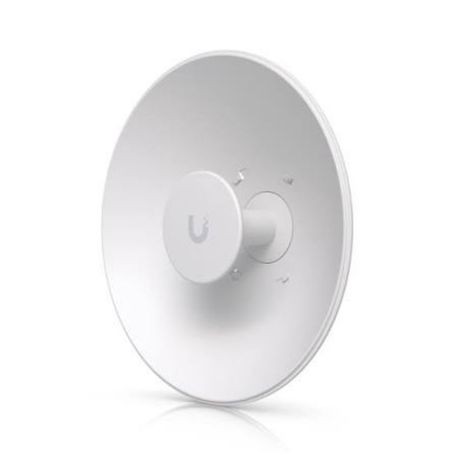

Ubiquiti UISP-Dish-Mini 26 dBi 5 7 GHz Compact Dish Antenna with Waveguide
Overview
The Ubiquiti UISP-Dish-Mini is a compact 5–7 GHz dish antenna designed for compatible UISP wireless deployments. It provides 26 dBi gain and supports direct radio connection through its integrated waveguide configuration.
RF Performance
The UISP-Dish-Mini operates from 5.15 to 6.875 GHz and provides 26 dBi gain with dual-linear polarization. Ubiquiti specifies a maximum VSWR of 2:1 and cross-polarization isolation of 15 dB.
Beamwidth and Alignment
The antenna has an azimuth beamwidth of 5.8–9° at 3 dB and 7.6–12.5° at 6 dB. Elevation beamwidth is specified at the same ranges. Mechanical elevation adjustment is ±20°, with 0° electrical downtilt.
Mechanical and Environmental
The antenna dish measures 420 mm in diameter and 140 mm deep. With the waveguide installed, the assembly measures 420 × 211.3 mm. The dish uses powder-coated galvanized steel and UV-stabilized polycarbonate, while the waveguide uses aluminum alloy and UV-stabilized polycarbonate. It supports pole mounting on 32–76 mm diameter poles and provides IPX6 weatherproofing.
Key Features
- 26 dBi gain across 5.15–6.875 GHz
- Compact 420 mm diameter dish antenna
- Direct radio connection through waveguide
- Dual-linear polarization with 15 dB cross-polarization isolation
- IPX6 weatherproofing and up to 200 km/h wind survivability
Applications
The UISP-Dish-Mini is intended for compatible 5–7 GHz point-to-point wireless links where a directional 26 dBi antenna is required. Confirm the radio, frequency range, mounting arrangement, and waveguide interface before deployment.
DC Supplies Product Note
Verify compatibility between the selected radio and the UISP-Dish-Mini waveguide before installation. The included alignment mounting kit supports pole installation, with mechanical elevation adjustment of ±20°. Ensure the installation structure can accommodate the antenna dimensions and specified wind loading.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UISP-Dish-Mini |
| Product Type | 5–7 GHz Directional Dish Antenna |
| Frequency Range | 5.15–6.875 GHz |
| Gain | 26 dBi |
| Polarization | Dual-Linear |
| Azimuth Beamwidth | 5.8–9° (3 dB) / 7.6–12.5° (6 dB) |
| Elevation Beamwidth | 5.8–9° (3 dB) / 7.6–12.5° (6 dB) |
| Electrical Downtilt | 0° |
| Maximum VSWR | 2:1 |
| Cross-Polarization Isolation | 15 dB |
| Mechanical Elevation Adjustment | ±20° |
| Dish Dimensions | Ø420 × 140 mm (Ø16.5 × 5.5") |
| Dish with Waveguide Dimensions | Ø420 × 211.3 mm (Ø16.5 × 8.3") |
| Dish Weight | 1.95 kg (4.3 lb) |
| Mount Weight | 1 kg (2.2 lb) |
| Waveguide Weight | 0.45 kg (1 lb) |
| Pole Mount Diameter | 32–76 mm (1.25–3") |
| Weatherproofing | IPX6 |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 348 N at 200 km/h (78 lbf at 124 mph) |
| NDAA Compliant | Yes |
Frequently Asked Questions
What is the Ubiquiti UISP-Dish-Mini?
It is a compact directional 5–7 GHz dish antenna with 26 dBi gain and a direct radio connection through its waveguide.
What frequency range does the UISP-Dish-Mini support?
Ubiquiti specifies a frequency range of 5.15 to 6.875 GHz.
What is the antenna gain?
The UISP-Dish-Mini provides 26 dBi gain.
What type of polarization does it use?
The antenna uses dual-linear polarization and provides 15 dB cross-polarization isolation.
How is the UISP-Dish-Mini mounted?
It uses pole mounting for 32–76 mm diameter poles and includes an alignment mounting kit with ±20° mechanical elevation adjustment.
Is the UISP-Dish-Mini weatherproof?
Yes. Ubiquiti specifies IPX6 weatherproofing and wind survivability up to 200 km/h.
