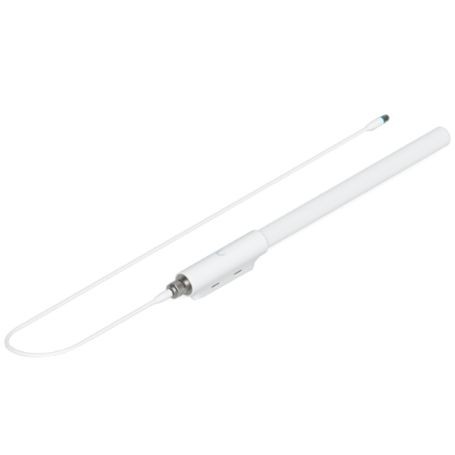

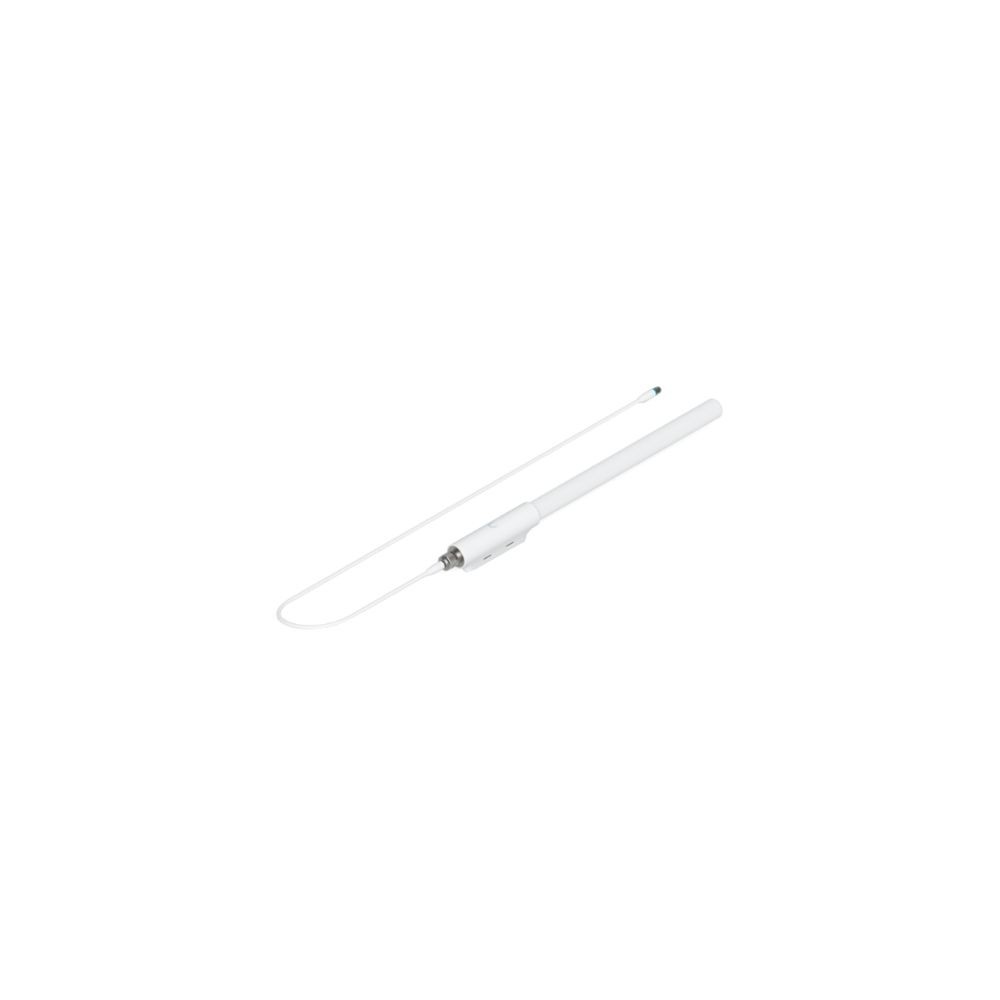

Ubiquiti UACC-USL-ANT-HG SuperLink 7 dBi High-Gain Omnidirectional Antenna
Overview
The Ubiquiti UACC-USL-ANT-HG is a high-gain omnidirectional antenna designed to extend the range of compatible UniFi SuperLink systems. It provides 7 dBi gain for SuperLink communications and is housed in an IP67-rated enclosure for outdoor deployment. Ubiquiti specifies a SuperLink range of up to 5 km (3.1 mi) and Bluetooth range of up to 100 m (328 ft).
Wireless Performance
The antenna operates with SuperLink in the 860–930 MHz range and supports Bluetooth from 2400–2480 MHz. Antenna gain is rated at 7 dBi for SuperLink and 4 dBi for Bluetooth. The specified maximum ranges are based on the respective wireless technology and deployment conditions.
Outdoor Installation
The UACC-USL-ANT-HG uses a pole-mount design compatible with pole diameters from 25 to 55 mm (1–2.17"). The antenna is rated IP67 for weather protection and supports an operating temperature range of -40 to 60°C (-40 to 140°F).
Key Features
- 7 dBi SuperLink antenna gain
- 4 dBi Bluetooth antenna gain
- Omnidirectional antenna design
- IP67-rated outdoor enclosure
- Pole mounting for 25–55 mm diameter poles
Applications
The antenna is designed for SuperLink deployments where additional wireless coverage is required from a compatible SuperLink gateway. Its outdoor-rated enclosure and pole-mount design support residential, commercial, and other installations where the antenna must be positioned externally.
DC Supplies Product Note
Confirm the SuperLink gateway compatibility and available mounting location before deployment. The antenna uses an RP-N female antenna connector and is supplied with an antenna cable using RP-SMA male and RP-N male connectors.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-USL-ANT-HG |
| Product Type | SuperLink High-Gain Omnidirectional Antenna |
| SuperLink Frequency | 860–930 MHz |
| Bluetooth Frequency | 2400–2480 MHz |
| SuperLink Antenna Gain | 7 dBi |
| Bluetooth Antenna Gain | 4 dBi |
| SuperLink Maximum Range | Up to 5 km (3.1 mi) |
| Bluetooth Maximum Range | Up to 100 m (328 ft) |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 25–55 mm (1–2.17") |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| Antenna Connector | 1 × RP-N Female |
| Antenna Cable | 1 × RP-SMA Male, 1 × RP-N Male |
| Device Dimensions | 468.9 × 31.8 × 44.1 mm (18.5 × 1.3 × 1.7") |
| Dimensions with Cable | 1458.4 × 31.8 × 44.1 mm (57.4 × 1.3 × 1.7") |
| Cable Length | 1000 mm (39.4") |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Device Weight | 275 g (9.7 oz) |
| Cable Weight | 65 g (2.3 oz) |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10 to 90% noncondensing |
| UniFi Application Suite | Protect |
| Certification | CE |
Frequently Asked Questions
What is the UACC-USL-ANT-HG?
The UACC-USL-ANT-HG is a high-gain omnidirectional antenna designed to extend the range of compatible UniFi SuperLink systems.
What is the SuperLink antenna gain?
Ubiquiti specifies 7 dBi gain for SuperLink communications.
What range does the antenna support?
Ubiquiti specifies a maximum SuperLink range of up to 5 km (3.1 mi) and Bluetooth range of up to 100 m (328 ft).
Can the antenna be installed outdoors?
Yes. The antenna has an IP67-rated enclosure and an operating temperature range of -40 to 60°C.
What pole sizes are supported?
The pole mount supports diameters from 25 to 55 mm (1–2.17").
