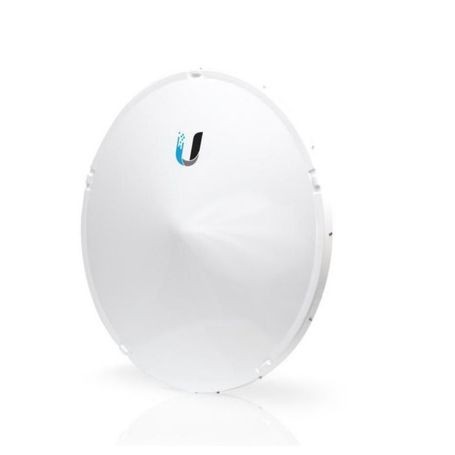

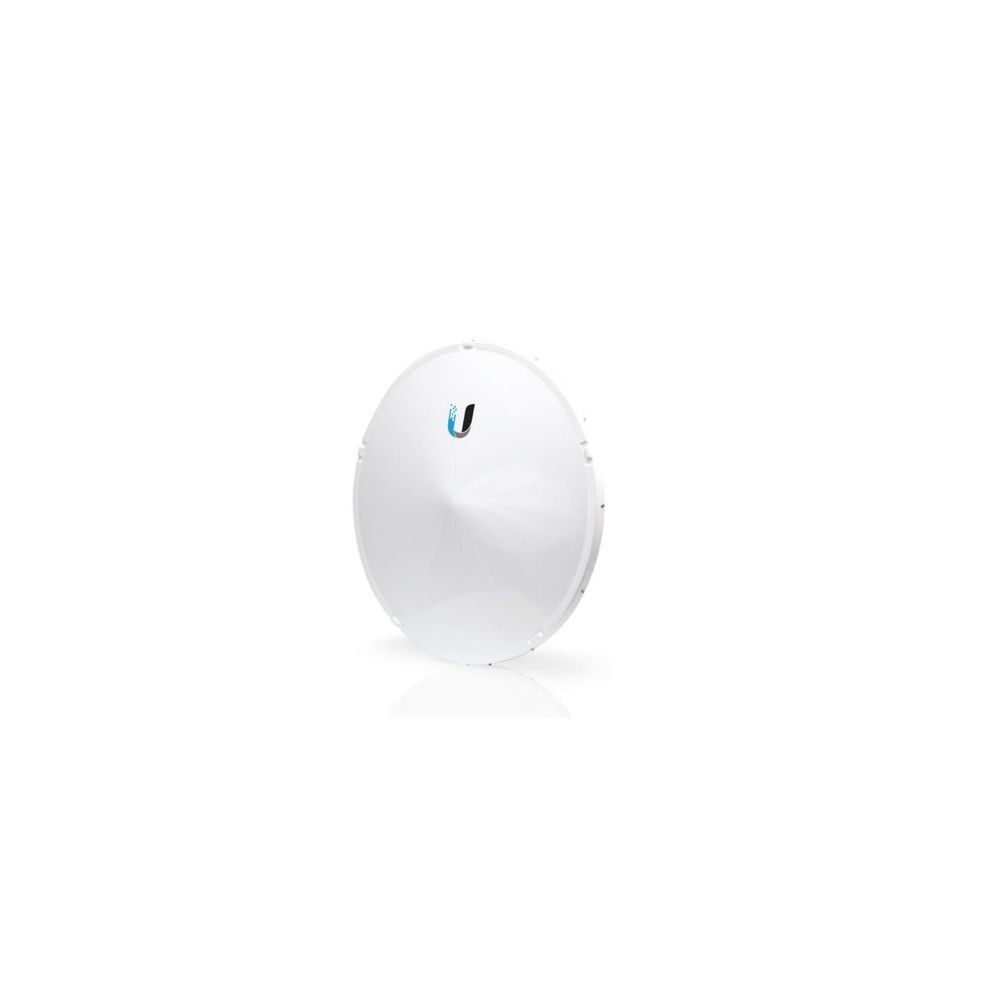

The Ubiquiti AF11-COMPLETE-LB is an airFiber 11 GHz low-band licensed backhaul system combining the AF-11 radio with an AF-11G35 35 dBi dish antenna. It is designed for long-range full-duplex point-to-point wireless backhaul and supports SISO operation with the included low-band duplexer, with MIMO available using a second compatible duplexer.
Backhaul Performance
The system supports up to 1.2+ Gbps maximum throughput and a specified maximum range of 300+ km under appropriate link conditions. The radio operates in the 10.7–11.7 GHz low-band range, subject to regional regulatory requirements.
RF and Duplexing
The included AF-11G35 antenna provides 35 dBi gain with 2.5° horizontal and vertical beamwidth. The radio supports SISO and MIMO operation and includes one low-band duplexer pre-installed for SISO operation. MIMO requires a second AF-11-DUP-L low-band duplexer.
Network and Power
The AF-11 provides one Gigabit Ethernet RJ45 data interface and one 10/100 Mbps management interface. Power is supplied through passive four-pair PoE or the terminal block using 38–56V DC. A 50V, 1.2A Gigabit PoE adapter is included.
Outdoor Deployment
The AF-11G35 dish is designed for tower and pole installations with 200 km/h wind survivability and 1538 N wind loading at 200 km/h. The radio operates from -40°C to 55°C, making the system suitable for demanding outdoor backhaul environments.
Key Features
- 11 GHz licensed low-band point-to-point backhaul system
- 35 dBi AF-11G35 dish antenna
- 1.2+ Gbps maximum throughput and 300+ km specified maximum range
- One low-band duplexer included for SISO operation
- 200 km/h wind survivability for the antenna
Applications
The AF11-COMPLETE-LB is suited to licensed carrier backhaul, WISP infrastructure, long-distance tower-to-tower links, enterprise backbone connectivity, and other fixed point-to-point wireless transport applications requiring licensed 11 GHz spectrum.
DC Supplies Product Note
The AF11-COMPLETE-LB is supplied as a complete radio-and-dish system, but MIMO operation requires an additional AF-11-DUP-L duplexer. Frequency selection and operation are subject to applicable licensing and regional regulations.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | AF11-COMPLETE-LB |
| Product Type | 11 GHz Low-Band Backhaul Radio with Dish Antenna |
| Series | airFiber 11 |
| Radio Model | AF-11 |
| Antenna Model | AF-11G35 |
| Operating Frequency | 10.7–11.7 GHz, regulatory dependent |
| Antenna Gain | 35 dBi |
| Maximum Throughput | 1.2+ Gbps |
| Maximum Range | 300+ km |
| Wireless Modes | SISO / MIMO |
| Maximum Conducted TX Power | 30 dBm, regulatory dependent |
| Frequency Accuracy | ±1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz, regulatory dependent |
| Encryption | 128-bit AES |
| Data Interface | 1 × Gigabit Ethernet RJ45 |
| Management Interface | 1 × 10/100 Mbps Ethernet |
| Power Method | Passive PoE, 4-pair; terminal block direct-wire |
| Power Supply | 50V DC, 1.2A Gigabit PoE adapter included |
| Supported Voltage | 38–56V DC |
| Maximum Power Consumption | 36W |
| RF Connectors | 4 × weatherproof SMA; 2 × waterproof N-Type |
| Dish Beamwidth | 2.5° HPOL / 2.5° VPOL |
| Dish Maximum VSWR | 2:1 |
| Dish Polarization | H/V; ±45° after rotating OMT |
| Cross-Polarization Isolation | 35 dB |
| Dish Wind Survivability | 200 km/h (125 mph) |
| Dish Wind Loading | 1538 N at 200 km/h |
| Operating Temperature | -40 to 55°C |
| Radio Dimensions | 12.9 × 4.4 × 3.4 in |
| Radio Weight | 5 lb |
| Dish Dimensions | 31.9 × 31.9 × 18.1 in |
| Dish Weight | 15.74 lb without mount; 26.12 lb with mount |
| Mounting | Pole mount |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is included with the AF11-COMPLETE-LB?
The package includes the AF-11 radio, AF-11G35 antenna, low-band duplexer, 50V Gigabit PoE adapter, RF cables, antenna shroud, mounting brackets, pole clamps, and associated mounting hardware.
What frequency does the AF11-COMPLETE-LB use?
The low-band version operates from 10.7 to 11.7 GHz, subject to regional regulatory requirements.
What throughput does the system support?
Ubiquiti specifies maximum throughput of more than 1.2 Gbps.
Does the package support MIMO?
Yes. The radio supports SISO and MIMO, but the package includes one low-band duplexer for SISO operation. A second AF-11-DUP-L duplexer is required for MIMO.
What antenna is included?
The system includes the AF-11G35 35 dBi dish antenna with 2.5° horizontal and vertical beamwidth.
Is the 11 GHz band license-free?
No. Operation of the AF-11 at 11 GHz is subject to applicable spectrum licensing and country-specific regulatory requirements.
