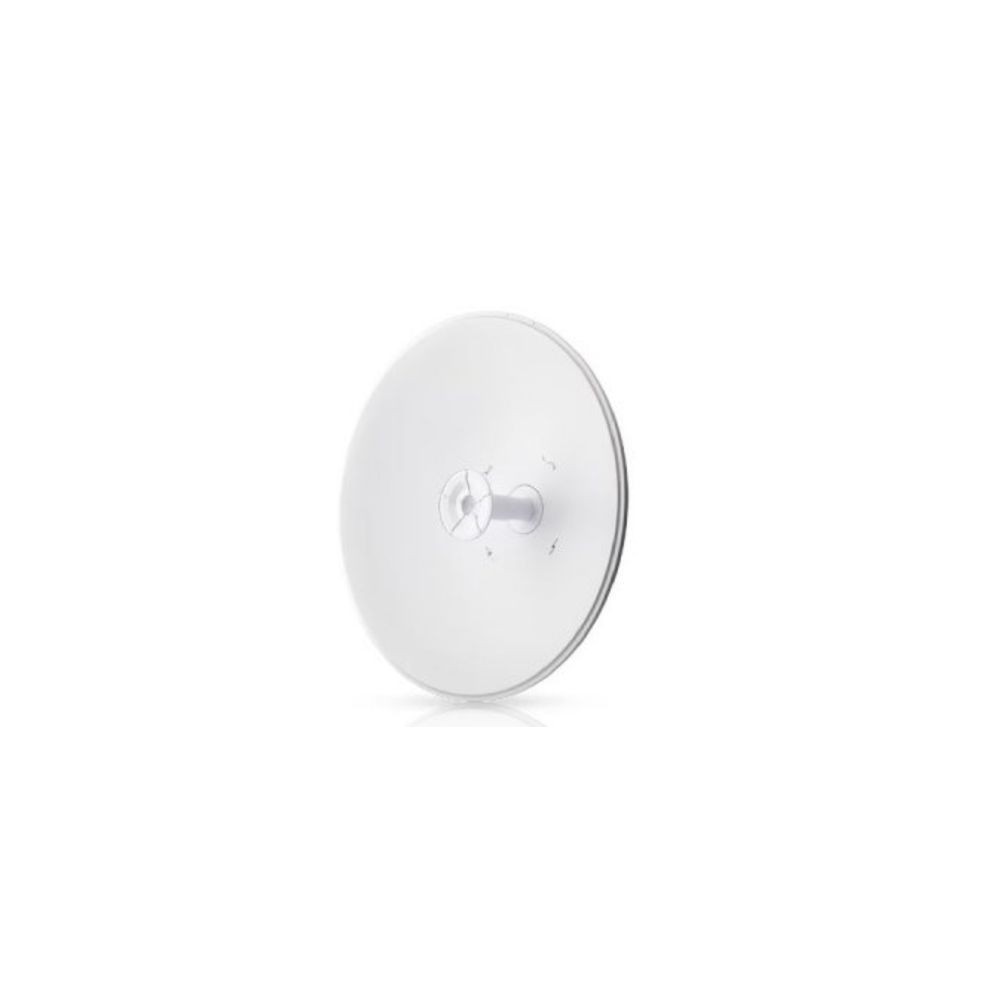

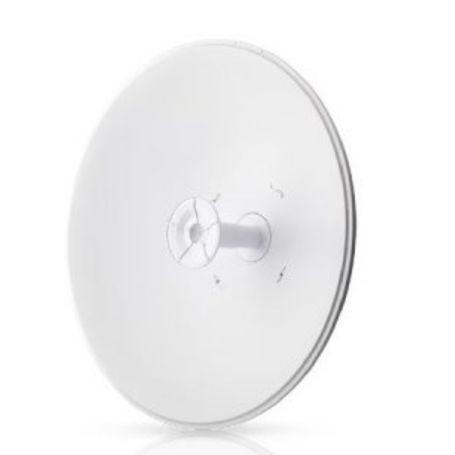

The Ubiquiti AF-5G30-S45-US is a 5 GHz, 30 dBi Slant 45 antenna designed for long-range point-to-point wireless links using Ubiquiti airFiber X radios. Its 650 mm reflector provides focused RF performance, while the dual-linear polarization and 30 dB front-to-back ratio support directional backhaul deployments.
RF Performance
The antenna operates from 5.1 to 5.9 GHz and provides 30 dBi of gain with a maximum VSWR of 1.6:1. Its dual-linear polarization and Slant 45 configuration are designed for airFiber X wireless backhaul applications.
Point-to-Point Deployment
The AF-5G30-S45-US is an antenna component rather than a complete wireless radio. It is designed to pair with a compatible 5 GHz airFiber radio to create a directional point-to-point link.
Outdoor Construction
The antenna is designed for outdoor tower and pole installations, with 200 km/h wind survivability and a specified wind loading of 790 N at 200 km/h. The included mounting hardware provides a universal pole mount and airFiber radio mounting interface.
Key Features
- 30 dBi gain at 5 GHz
- 5.1–5.9 GHz operating frequency
- Slant 45 dual-linear polarization
- 30 dB front-to-back ratio
- 200 km/h wind survivability
Applications
The AF-5G30-S45-US is suited to carrier backhaul, WISP infrastructure, tower-to-tower connectivity, and long-distance fixed wireless point-to-point links where a high-gain directional antenna is required.
DC Supplies Product Note
The antenna is supplied as a directional antenna assembly with its mounting hardware and weatherproof RF jumpers. A compatible 5 GHz airFiber radio is required separately to form a complete wireless link.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | AF-5G30-S45-US |
| Product Type | 5 GHz Directional Dish Antenna |
| Series | airFiber X |
| Frequency | 5.1–5.9 GHz |
| Gain | 30 dBi |
| Polarization | Dual Linear |
| Slant | 45° |
| Maximum VSWR | 1.6:1 |
| Front-to-Back Ratio | 30 dB |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 790 N at 200 km/h (178 lbf at 125 mph) |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal pole mount and airFiber radio bracket |
| Included Mounting Hardware | Universal pole mount, airFiber radio bracket, weatherproof RF jumpers |
| NDAA Compliant | Yes |
FAQs
What is the AF-5G30-S45-US used for?
It is a high-gain 5 GHz directional antenna designed for long-range airFiber X point-to-point wireless links.
What gain does the antenna provide?
The antenna provides 30 dBi of gain.
What frequency range does it support?
The specified operating frequency range is 5.1–5.9 GHz.
Does the AF-5G30-S45-US include a wireless radio?
No. It is an antenna assembly. A compatible 5 GHz airFiber radio is required separately.
What are the antenna's wind specifications?
Ubiquiti specifies 200 km/h wind survivability and 790 N wind loading at 200 km/h.
