Overview

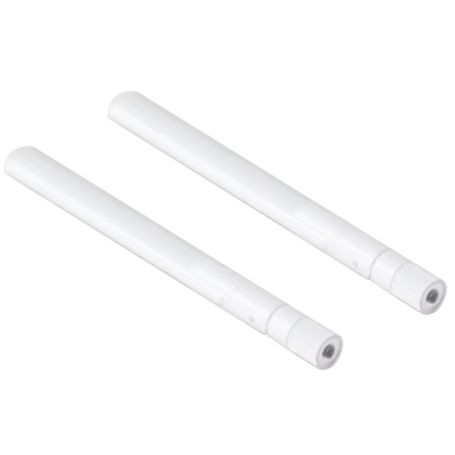

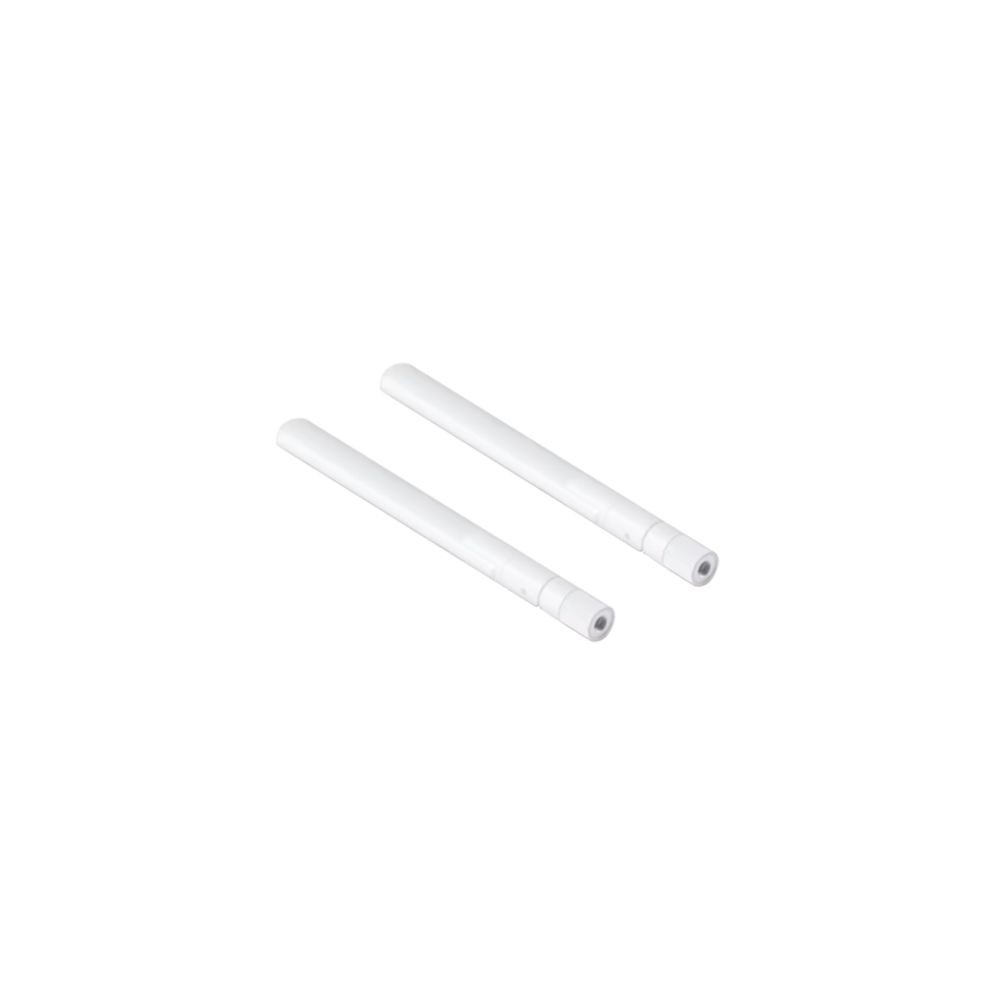

The Ubiquiti UACC-UK-ULTRA-OMNI-ANTENNA-AO is an external omnidirectional antenna accessory designed specifically for the Swiss Army Knife Ultra access point. The antenna pair provides extended-range, dual-band coverage for outdoor wireless deployments.
Wireless Coverage
The antenna pair provides 3 dBi gain on the 2.4 GHz band and 4 dBi gain on the 5 GHz band. Its omnidirectional radiation pattern is designed to provide coverage around the access point rather than concentrating the RF signal in a single directional beam.
Outdoor Construction
The antennas are designed for outdoor exposed installations and have an IPX6 weatherproofing rating. The construction uses thermoplastic polyester elastomer, polycarbonate, polybutylene terephthalate, and polyoxymethylene.
Key Features
- Designed for Swiss Army Knife Ultra
- Omnidirectional dual-band antenna pair
- 4 dBi gain at 5 GHz
- 3 dBi gain at 2.4 GHz
- IPX6 weatherproofing for outdoor exposure
Applications
The UACC-UK-ULTRA-OMNI-ANTENNA-AO is intended for outdoor Swiss Army Knife Ultra deployments where an omnidirectional antenna pattern and extended dual-band coverage are required.
DC Supplies Product Note
This product is an antenna accessory for the Swiss Army Knife Ultra rather than a standalone wireless access point. Compatibility should be verified with the UK-Ultra before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-UK-ULTRA-OMNI-ANTENNA-AO |
| Product Type | Omnidirectional Antenna |
| Compatibility | Swiss Army Knife Ultra |
| Quantity | Pair |
| Polar Pattern | Omnidirectional |
| 2.4 GHz Antenna Gain | 3 dBi |
| 5 GHz Antenna Gain | 4 dBi |
| Weatherproofing | IPX6 |
| Enclosure Material | Thermoplastic polyester elastomer, polycarbonate, polybutylene terephthalate, polyoxymethylene |
| Dimensions | 154 × 15 × 15 mm (6.1 × 0.6 × 0.6 in) |
| Weight | 42 g (1.5 oz) per pair |
FAQs
What device is the UACC-UK-ULTRA-OMNI-ANTENNA-AO compatible with?
It is designed for the Ubiquiti Swiss Army Knife Ultra access point.
What is the antenna gain?
The antenna provides 3 dBi gain at 2.4 GHz and 4 dBi gain at 5 GHz.
Is it an omnidirectional antenna?
Yes. It uses an omnidirectional radiation pattern for coverage around the access point.
Can it be used outdoors?
Yes. Ubiquiti specifies IPX6 weatherproofing for outdoor exposed use.
How many antennas are included?
The specified weight and product configuration identify the antenna as a pair.
