Overview

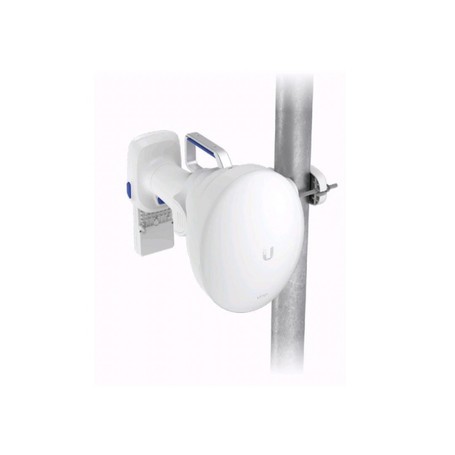

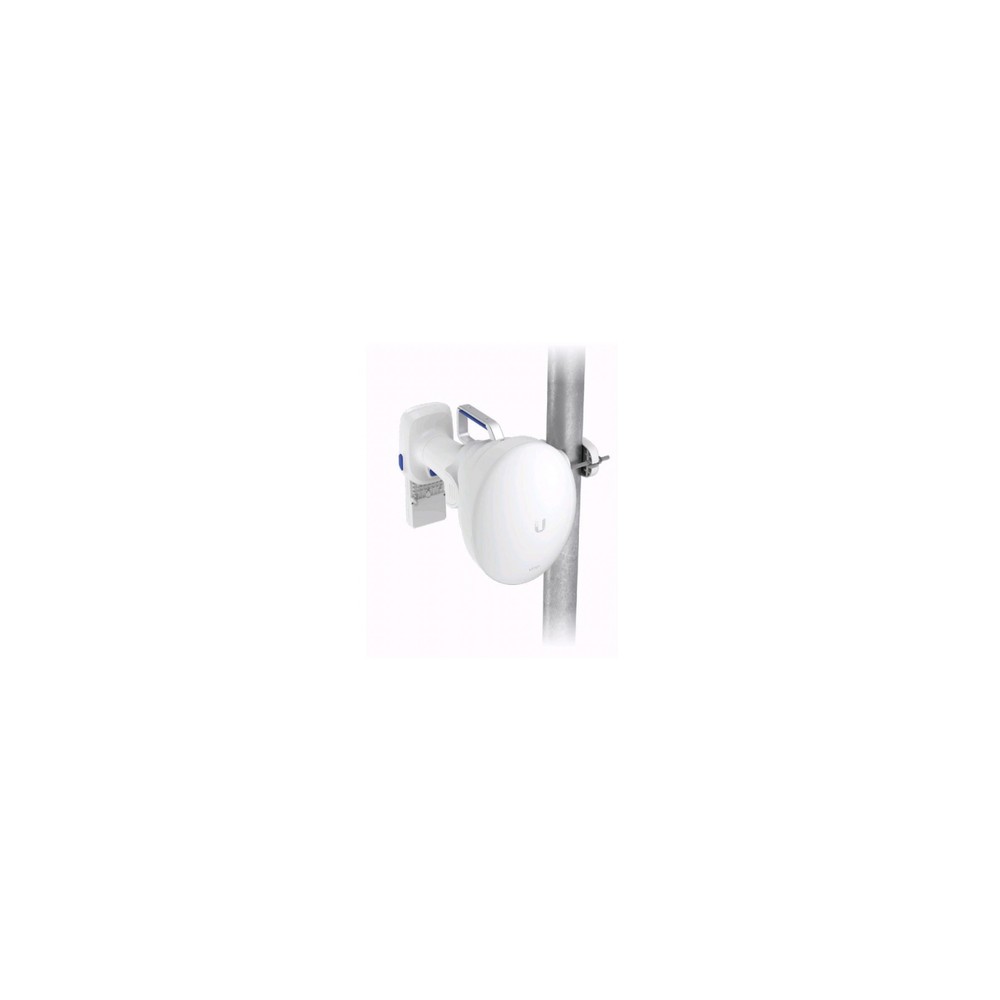

The Ubiquiti UISP-Horn is a high-isolation point-to-multipoint (PtMP) horn antenna designed for wide-band 5GHz wireless deployments. It operates from 5.15 to 6.875 GHz and provides 19.5 dBi gain with a 30° azimuth beamwidth.
Wireless Coverage
The UISP-Horn provides 30° azimuth and 25° elevation beamwidth at the 6 dB points. Its dual-linear polarization and high front-to-back ratio are designed for sectorized PtMP deployments where controlled coverage and isolation are important.
Radio Compatibility
The antenna is designed for compatible Ubiquiti radios using the UISP Horn interface, including supported airFiber, LTU Rocket, and airMAX Rocket Prism AC 5 GHz radio platforms. Its snap-in radio connection uses the included waveguide adapter and side latches for securing the compatible radio.
Construction and Weather Protection
The enclosure combines UV-stabilized polycarbonate and aluminum alloy. The antenna is rated IPX6 for weather protection and is designed for outdoor deployment. Ubiquiti specifies wind survivability up to 200 km/h (124 mph) and wind loading of 90 N at 200 km/h.
Mounting and Alignment
The UISP-Horn is designed for pole mounting on poles measuring 25 to 70 mm (1 to 3 inches) in diameter. The included alignment mount provides mechanical adjustment of ±20° in elevation and ±25° in azimuth, allowing the antenna to be positioned for the intended wireless coverage area.
Key Features
- 19.5 dBi gain for 5GHz PtMP deployments
- 5.15–6.875 GHz wide operating frequency range
- 30° azimuth and 25° elevation beamwidth
- Dual-linear polarization with 20 dB cross-polarization isolation
- IPX6 weatherproof enclosure with included alignment mount
Applications
The UISP-Horn is intended for outdoor PtMP wireless networks where a controlled sector pattern and high isolation are required. It can be used as a sector antenna with compatible Ubiquiti wireless radios in ISP and fixed-wireless access deployments.
DC Supplies Product Note
The UISP-Horn is an antenna rather than a complete wireless radio. A compatible Ubiquiti radio is required for wireless operation, and the antenna's snap-in mounting interface should be matched to the supported radio platform before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UISP-Horn |
| Product Type | PtMP Horn Antenna |
| Product Family | UISP Horn |
| Frequency Range | 5.15–6.875 GHz |
| Gain | 19.5 dBi |
| Azimuth Beamwidth | 30° (6 dB) |
| Elevation Beamwidth | 25° (6 dB) |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | 20 dB |
| Electrical Downtilt | 0° |
| Maximum VSWR | 2:1 |
| Front-to-Back Ratio | Typical 45–50 dB; minimum 40 dB |
| Mounting | Pole Mount |
| Pole Diameter | 25–70 mm (1–3 in) |
| Alignment Adjustment | ±20° elevation, ±25° azimuth |
| Weatherproofing | IPX6 |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 90 N at 200 km/h (20 lbf at 124 mph) |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Dimensions | 282 x 224 x 380 mm (11.1 x 8.8 x 15 in) |
| Device Weight | 3.06 kg (6.75 lb) |
| Mount Weight | 925 g (2.04 lb) |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti UISP-Horn?
The UISP-Horn is a 19.5 dBi 5GHz high-isolation horn antenna designed for point-to-multipoint wireless deployments.
What frequency range does the UISP-Horn support?
It covers a wide 5.15 to 6.875 GHz frequency range.
What is the beamwidth of the UISP-Horn?
The antenna has a 30° azimuth beamwidth and 25° elevation beamwidth at the 6 dB points.
Which radios can be used with the UISP-Horn?
It is designed for compatible Ubiquiti radios using its snap-in radio interface, including supported airFiber 5XHD, LTU Rocket, and airMAX Rocket Prism AC 5 GHz platforms.
Is the UISP-Horn suitable for outdoor use?
Yes. It has an IPX6-rated enclosure and is specified for wind survivability up to 200 km/h.
