Detailed Specifications

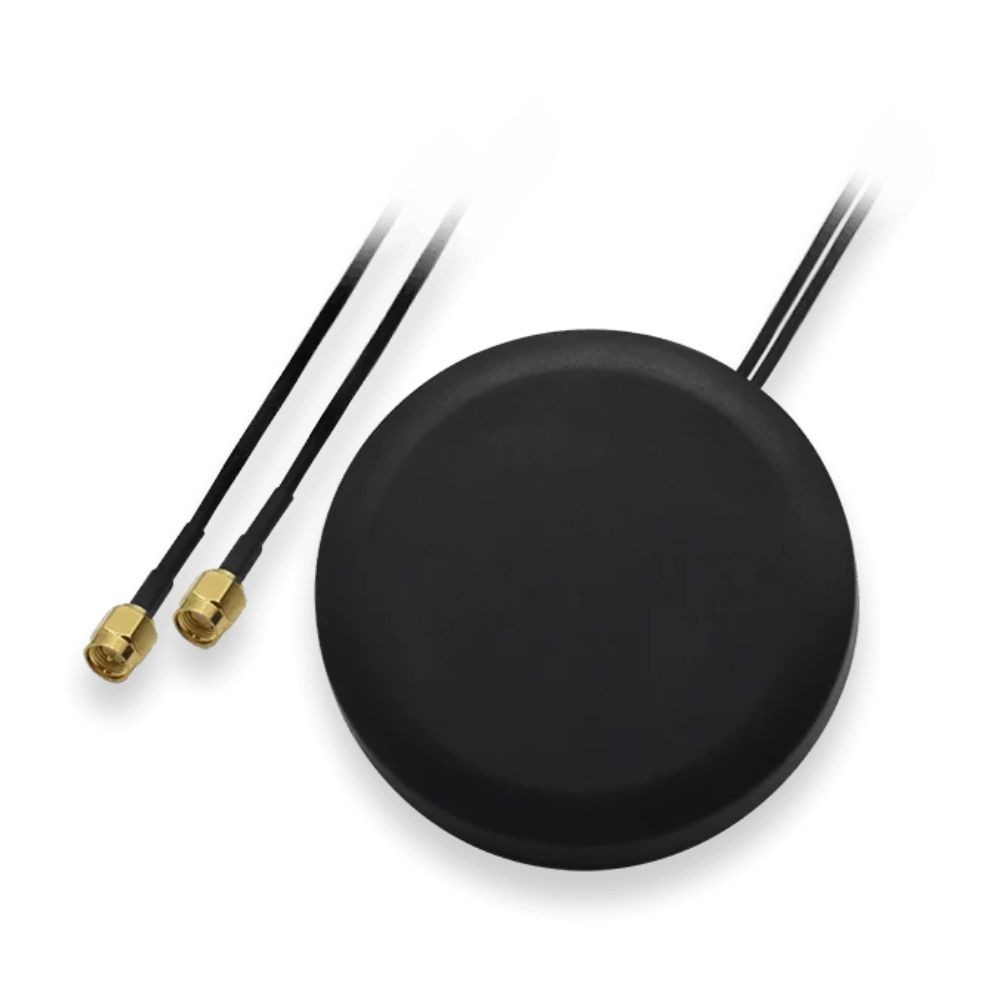

Teltonika PR1KCL25 Combo MIMO Mobile Roof Antenna
Overview :
The Teltonika PR1KCL25 is an outdoor MIMO cellular antenna designed to improve LTE signal reception for industrial mobile connectivity. It incorporates dual independent elements to support main and auxiliary cellular paths, enabling better data performance with routers equipped with two antenna inputs. The antenna is built into a compact, low-profile enclosure with screw-mount hardware for durable installation on vehicle roofs, cabinets, or other exposed surfaces. Its IP65-rated housing and UV-resistant materials allow deployment in harsh weather environments without compromising long-term reliability.
Key Features :
Dual-element MIMO LTE antenna design
Wide cellular band frequency coverage
IP65 outdoor-rated enclosure
3 m cables with SMA male connectors
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | PR1KCL25 |
| Product Type | Outdoor Combo MIMO LTE Antenna |
| Frequency Range | 698-960 MHz & 1710-2690 MHz |
| Main Antenna Gain | 2.5 dBi |
| Auxiliary Antenna Gain | 2.0 dBi |
| Polarization | Linear |
| Impedance | 50 Ω |
| VSWR | < 3.0 |
| Connector Interfaces | 2 × SMA male |
| Cables Included | 2 × RG174, 3000 mm |
| Mounting Method | Screw mount |
| Radome Material | UV-resistant plastic and cable |
| Ingress Protection | IP65 (excluding cable outlet) |
| Operating Temperature | -40 °C to +85 °C |
| Housing Dimensions | Ø 81.3 × 15.2 mm |
| Weight | ~157 g |
