Detailed Specifications

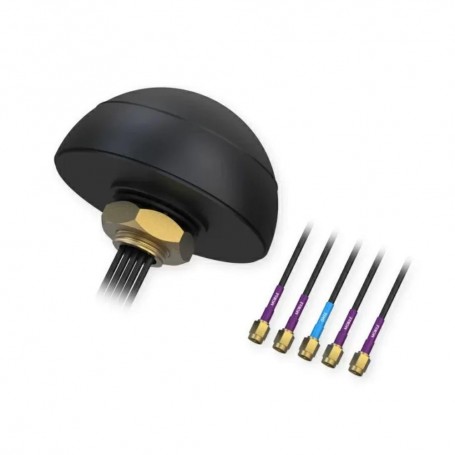

Teltonika PR1KS536 Outdoor Multi Radio Antenna
Overview :
The Teltonika PR1KS536 is an outdoor omni-directional antenna designed to support multiple wireless technologies including cellular LTE/5G bands, dual-band Wi-Fi, and GNSS positioning. It enables consolidated reception for routers and gateways in industrial, transport, and edge networking deployments. This antenna improves signal strength and coverage for wireless WAN and local Wi-Fi networks while providing GNSS data for location services and timing. Its robust IP67-rated enclosure and integrated mounting hardware make it suitable for harsh environmental installations.
Key Features :
Multi-band cellular support with wide frequency coverage
Dual-band Wi-Fi (2.4 GHz and 5 GHz) reception
High-gain GNSS for GPS/GLONASS/BeiDou/Galileo
IP67-rated rugged outdoor housing
Technical Specifications
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | PR1KS536 |
| Product Type | Outdoor Multi-Radio Antenna |
| Cellular Frequency Range | 617-960, 1710-2700, 3300-3800 MHz |
| Cellular Max Gain | 5 dBi |
| Wi-Fi Frequency Range | 2400-2500 MHz, 4900-5980 MHz |
| Wi-Fi Max Gain | 7 dBi |
| GNSS Frequency Range | 1559-1609 MHz |
| GNSS Polarization | RHCP |
| GNSS Max Gain | 28 dBi |
| Impedance | 50 Ω |
| VSWR | < 2.0 (cellular/Wi-Fi) |
| Connector Interfaces | 2 × SMA (cellular), 2 × RP-SMA (Wi-Fi), 1 × SMA (GNSS) |
| Cables Included | 5 × low-loss cables |
| Radiation Pattern | Omni-directional |
| Ingress Protection | IP67 |
| Operating Temp. | -40 °C to 75 °C |
| Mounting Options | Wall, mast, ceiling |
