Detailed Specifications

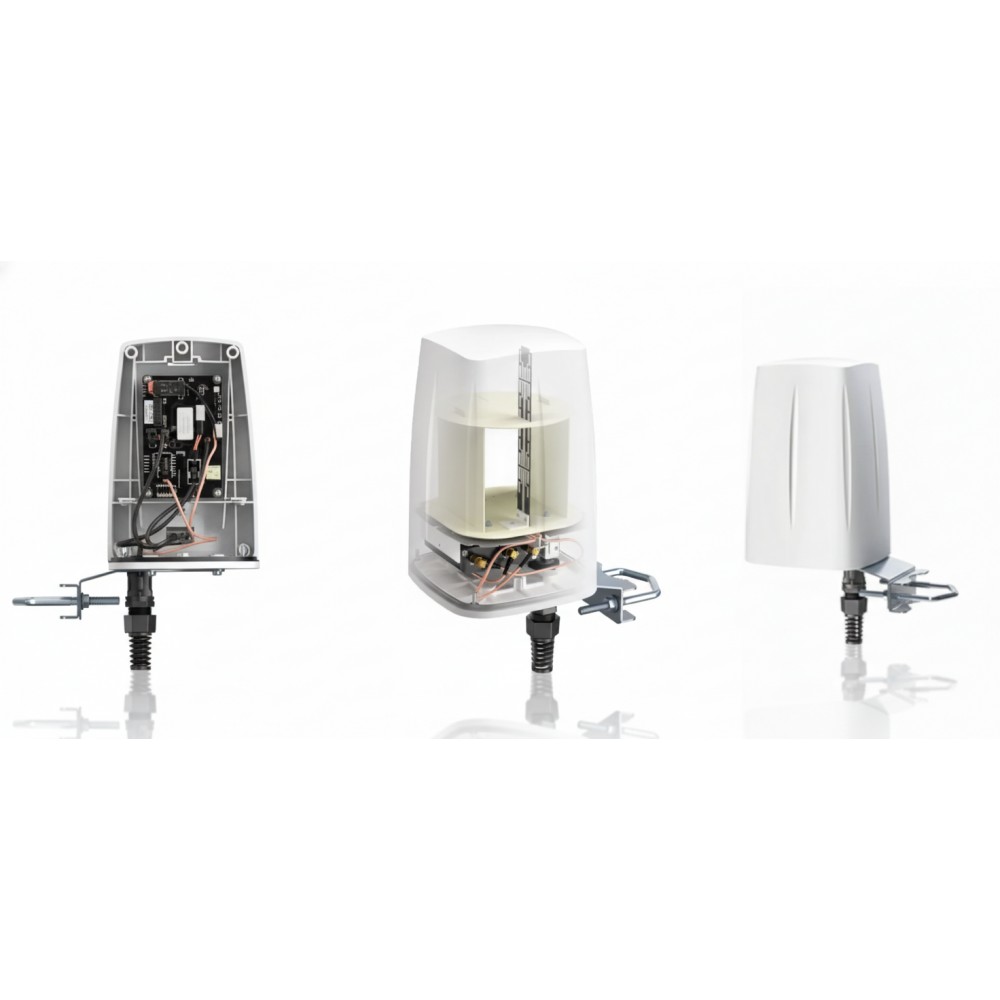

Teltonika PR1IC860 Outdoor LTE Wi-Fi Antenna
Overview :
The Teltonika PR1IC860 is an outdoor omni-directional antenna designed to improve reception for cellular (LTE) and Wi-Fi signals around industrial installations. It is built to work with routers in the RUT2 series and provides broader wireless coverage than typical indoor antennas. The antenna supports multiple LTE frequency bands and a 2.4 GHz Wi-Fi band, enabling better signal capture in outdoor and remote deployments. Its fully sealed enclosure and integrated mounting bracket allow wall, ceiling, or mast installation in harsh environments.
Key Features :
Omni-directional LTE antenna with multi-band support
Dual-frequency 2.4 GHz Wi-Fi coverage
IP67 outdoor-rated enclosure
Wall, ceiling, or mast mounting
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | PR1IC860 |
| Product Type | Outdoor LTE/Wi-Fi Antenna |
| LTE Frequency Range | 617-960, 1700-2200, 2300-2700, 3300-3800 MHz |
| LTE Max Gain | 4 dBi |
| Wi-Fi Frequency Range | 2400-2500 MHz |
| Wi-Fi Max Gain | 6 dBi |
| Radiation Pattern | Omni-directional |
| Polarization | Vertical |
| Impedance | 50 Ω |
| VSWR | < 2.00 |
| Connector Interfaces | 2 × SMA male (LTE), 1 × RP-SMA male (Wi-Fi) |
| Cables Included | 3 × RG316 |
| Operating Temp. | -40 °C to 75 °C |
| Ingress Protection | IP67 |
| Mounting | Wall/ceiling/mast |
| Weight | ~1500 g |
