Detailed Specifications

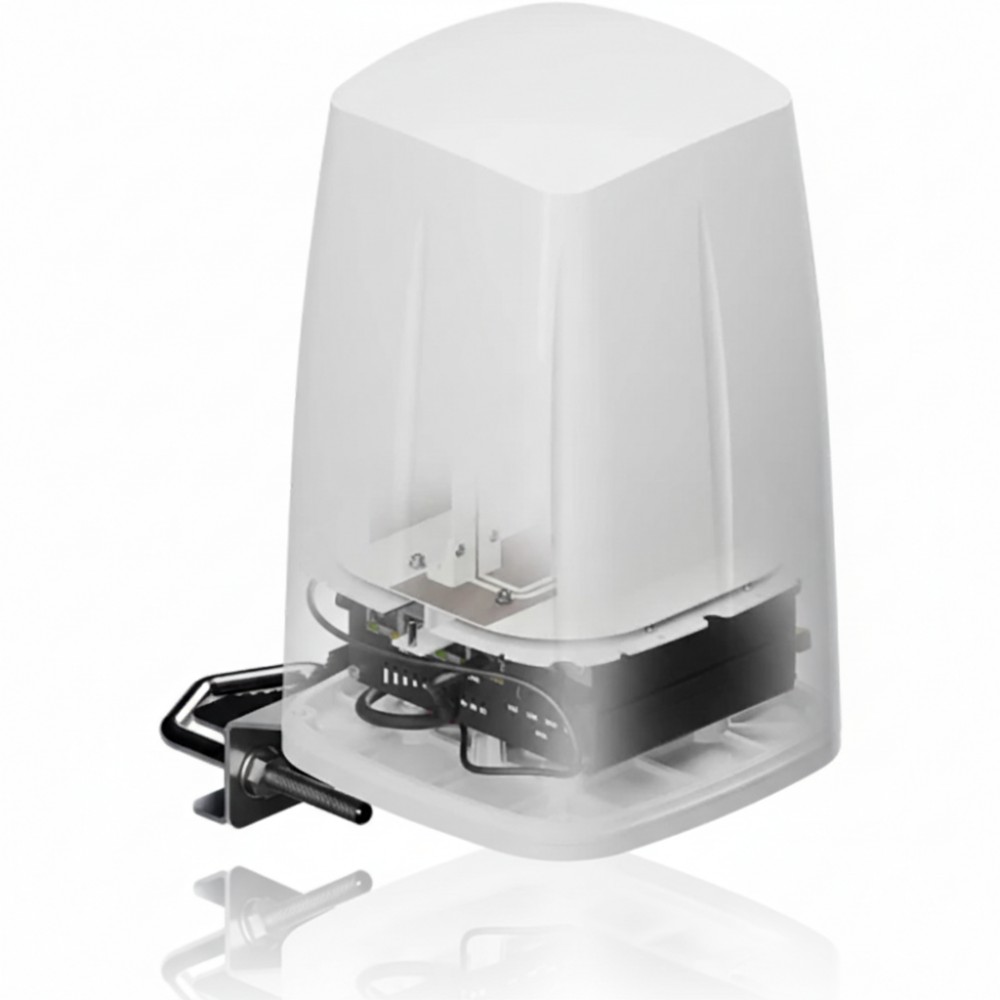

Teltonika PR1IC970 - Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna
Overview :
The Teltonika PR1IC970 is a multi-radio outdoor omni-directional antenna supporting cellular (LTE), dual-band Wi-Fi, GNSS positioning, and Bluetooth reception for industrial network deployments. It's designed to be paired with Teltonika RUTX11 and RUTM11 routers to improve signal coverage and positioning accuracy in field environments. The antenna consolidates multiple radio paths into a single enclosure, reducing installation complexity for outdoor sites. It is built for rugged installations on walls, ceilings, or masts where reliable connectivity and environmental protection are required.
Key Features :
Multi-band LTE support with vertical polarization
Dual-band Wi-Fi coverage (2.4 & 5 GHz)
Integrated high-gain GNSS antenna
Bluetooth antenna included for compatible routers
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | PR1IC970 |
| Product Type | Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna |
| LTE Frequency Range | 617-960 MHz, 1700-2700 MHz, 3300-4300 MHz |
| LTE Max Gain | 4.5 dBi |
| Wi-Fi Frequency Range | 2400-2500 MHz, 4700-6000 MHz |
| Wi-Fi Max Gain | 7.5 dBi |
| GNSS Frequency Range | 1560-1610 MHz |
| GNSS Max Gain | 28 dBi |
| Bluetooth Frequency Range | 2200-2700 MHz |
| Bluetooth Gain | 2 dBi |
| Impedance | 50 Ω |
| Connector Interfaces | 2× SMA (LTE), 2× RP-SMA (Wi-Fi), 1× SMA (GNSS), 1× RP-SMA (BT) |
| VSWR | LTE < 2.50, Wi-Fi/BT/GNSS < 2.00 |
| Environmental Rating | IP67 |
| Operating Temperature | -40 °C to 75 °C |
| Mounting | Wall, ceiling, mast |
| Cables Included | 5× RG316, 1× RG174 |
| Weight | 1500 g |
