Detailed Specifications

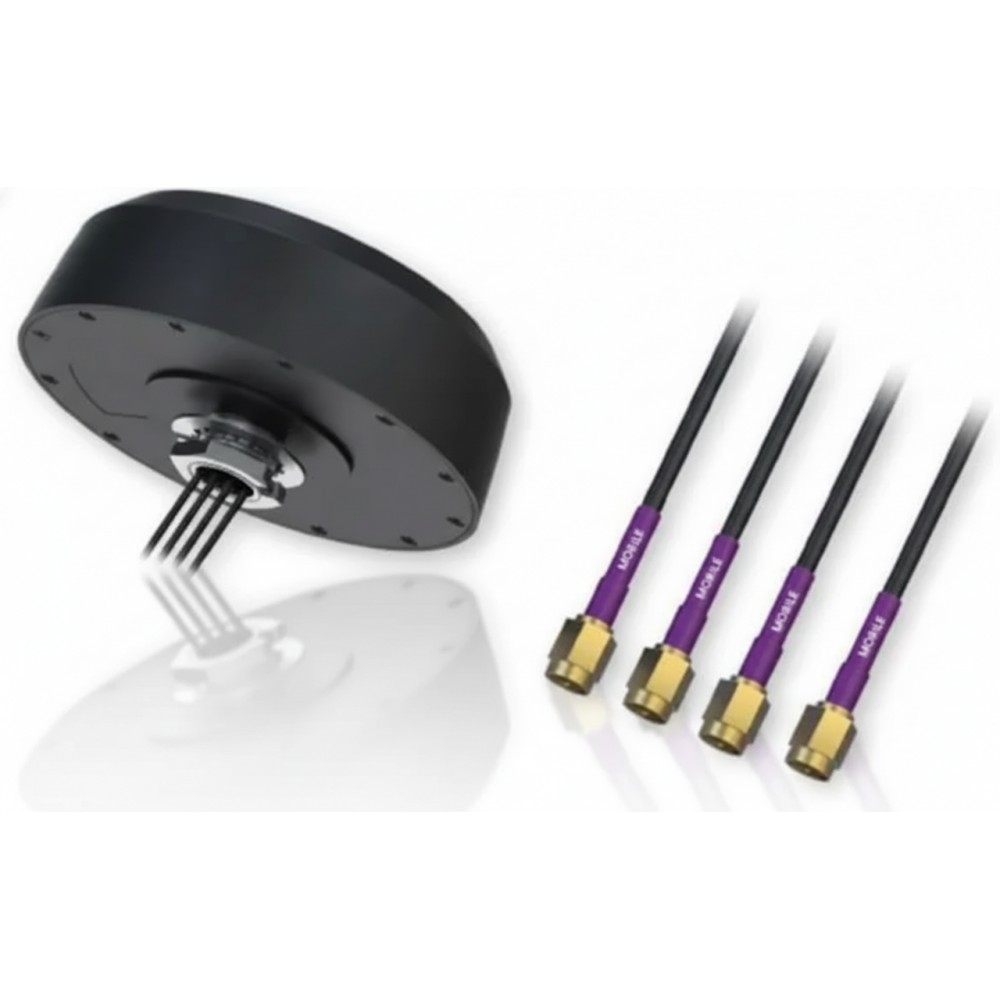

Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
Overview :
The Teltonika PR1KC647 is a high performance 5G Combo MIMO antenna designed to maximize connectivity for enterprise networking solutions. Engineered for both mobile and fixed applications, this robust roof mount antenna supports a wide frequency range from 600 MHz to 6000 MHz, ensuring compatibility with 5G NR and 4G LTE standards. It features four separate antenna elements in a single compact housing, delivering 4x4 MIMO technology to significantly improve data throughput and signal reliability in challenging environments. Ideally suited for transportation fleets, public safety vehicles, and industrial automation cabinets, the unit is built with a rugged IP67 and IP69K rated enclosure to withstand harsh weather conditions. The antenna integrates seamlessly with Teltonika routers and gateways via four SMA Male connectors, providing a secure and efficient link for mission critical communications.Key Features :
• Supports wideband frequencies from 600 MHz to 6000 MHz for global 5G and LTE coverage
• Utilizes 4x4 MIMO technology to enhance signal stability and data transmission speeds
• Rugged IP67 and IP69K rated housing ensures protection against water and dust ingress
• Omnidirectional radiation pattern delivers consistent connectivity for moving vehicles
• Integrated with four 3 meter low loss ALS302 cables terminated with SMA Male connectors
• Simple single hole screw mounting method with an M27 nut for secure installation
Specifications :
| Brand | Teltonika |
| Part Number | PR1KC647 |
| Product Category | 5G Mobile MIMO Antenna |
| Frequency Range | 600 to 960 MHz and 1400 to 6000 MHz |
| Peak Gain | 4.7 dBi |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| VSWR | Less than or equal to 3.4 |
| Impedance | 50 Ohms |
| Connector Type | 4x SMA Male |
| Cable Type | 4x ALS302 |
| Cable Length | 3000 mm |
| Mounting Method | Screw M27 nut |
| Ingress Protection | IP67 and IP69K |
| Operating Temperature | -40 Celsius to +85 Celsius |
