Detailed Specifications

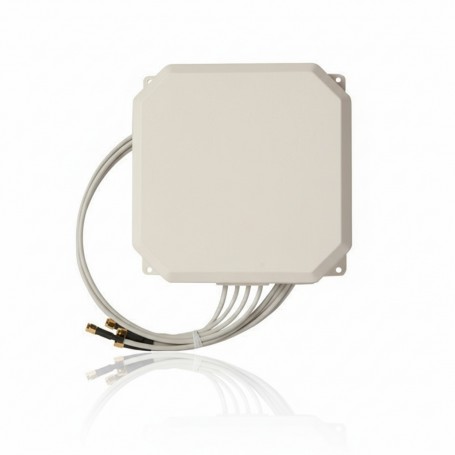

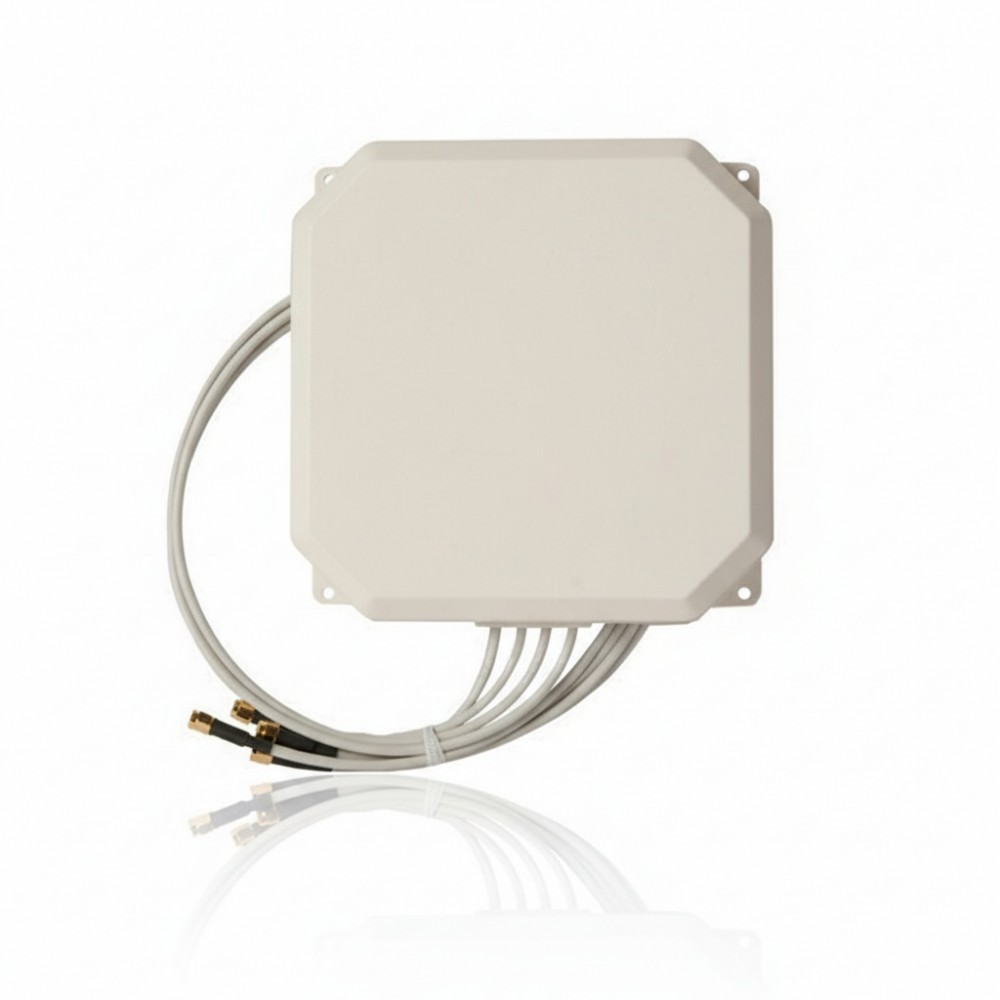

HPE S1F83A Aruba AP-ANT-345 Tri-Band 4×4 Panel Antenna
Overview
The HPE S1F83A is a directional panel antenna designed for use with Aruba access points that support external RP-SMA connectors. It operates on three bands × 2.4 GHz, 5 GHz, and 6 GHz × with a 4×4 MIMO configuration, making it suitable for high-capacity deployments needing focused coverage. The antenna is cabled (pigtail) and mounts via RP-SMA connectors, providing a reliable and performant external option. It's ideal for installations where internal antennas are insufficient or where directed signal is required, such as long corridors or open-space layouts. The antenna is rugged, with IP67 protection, making it usable in demanding indoor or semi-outdoor environments.
Key Features
Tri-band support: 2.4 GHz, 5 GHz, and 6 GHz
4×4 MIMO configuration for improved throughput and redundancy
Directional panel design for focused coverage
RP-SMA cabled connectors (pigtail) for flexible deployment
IP67-rated housing for dust and water protection
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S1F83A |
| Product Type | External directional antenna |
| Antenna Type | Panel, directional |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| MIMO Configuration | 4×4 |
| Connector | RP-SMA |
| Gain | Medium (per band) |
| Cable Type | Pigtail |
| Protection Rating | IP67 |
| Mounting | Wall or ceiling (panel mount) |
| Operating Temperature | -40 °C to +65 °C |
| Wind Resistance | Up to 136 mph |
| Weight | ~0.544 kg (544.3 g) |
| Dimensions (H × W × D) | 216 mm × 41 mm × 168 mm |
| Impedance | 50 Ω |
| Max Input Power | 2 W (33 dBm) |
