Detailed Specifications

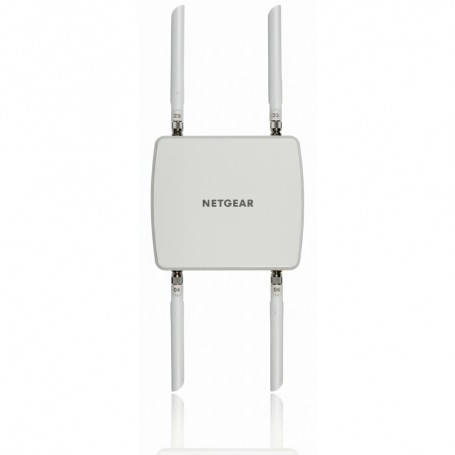

Netgear ANT24501B-10000S – Dual-Band Indoor Antenna Kit
Overview :
The Netgear ANT24501B-10000S is a dual-band indoor antenna kit designed to extend wireless coverage for compatible Netgear access points. It operates across both 2.4GHz and 5GHz frequencies, ensuring improved WiFi signal distribution in enterprise and commercial environments. The antenna is ideal for office buildings, schools, and indoor campuses where reliable wireless connectivity is essential. It connects easily to Netgear ProSAFE and WAC series access points for flexible deployment and signal optimization.
Key Features :
Dual-band 2.4/5GHz operation
3dBi and 4dBi gain per band
RP-SMA male connector type
Includes wall and ceiling mounts
Specifications :
| Specification | Detail |
|---|
| Brand | Netgear |
| Part Number | ANT24501B-10000S |
| Product Type | Dual-Band Indoor Antenna Kit |
| Frequency Range | 2.4GHz to 2.5GHz / 5.15GHz to 5.85GHz |
| Gain | 3dBi @ 2.4GHz / 4dBi @ 5GHz |
| Polarization | Linear, vertical |
| Connector Type | RP-SMA male |
| Antenna Quantity | 4 antennas included |
| Cable Length | 1 meter (per antenna) |
| Mounting Options | Wall or ceiling mount |
| VSWR | ≤ 2.0:1 |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 188 x 20 mm (each antenna) |
| Compatibility | Netgear ProSAFE and WAC Series Access Points |
