Overview

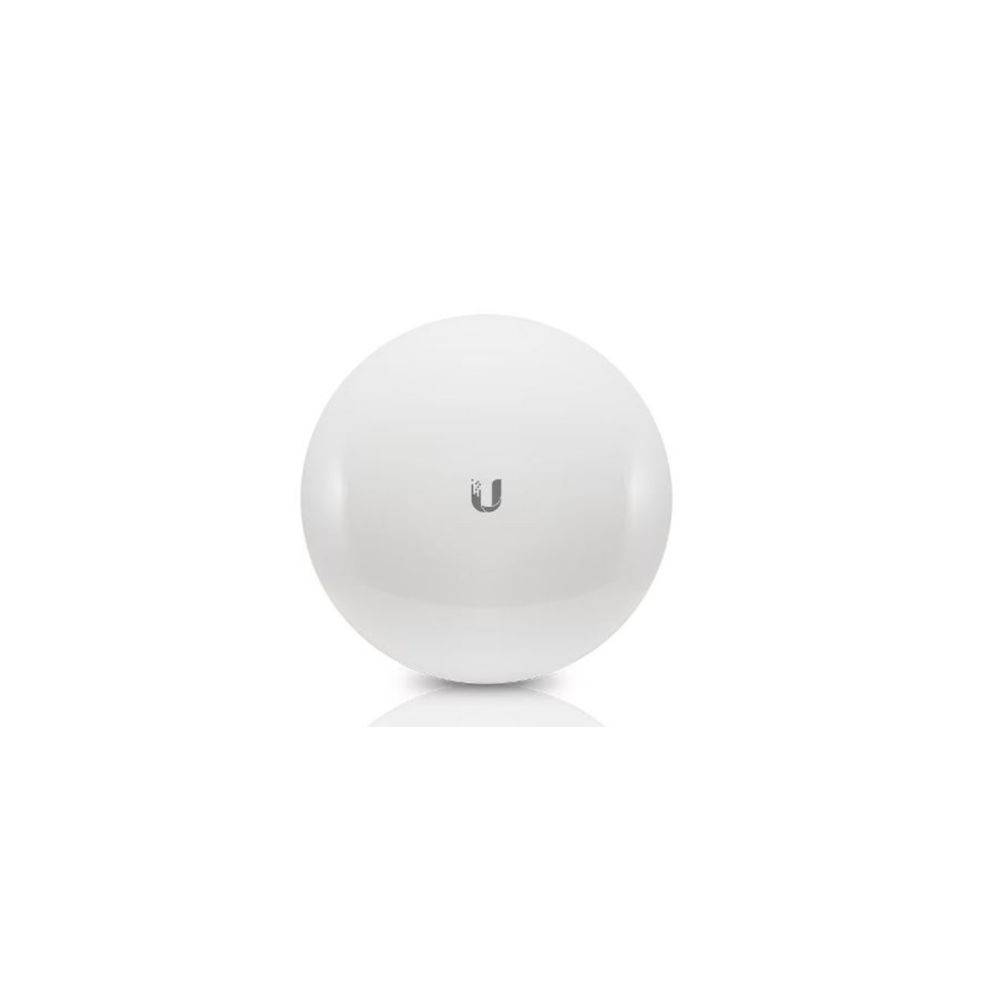

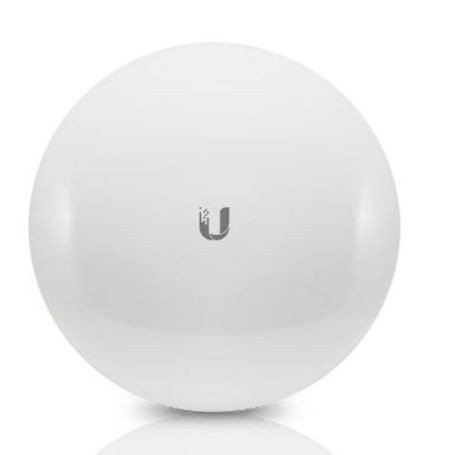

The Ubiquiti NBE-M5-16 is an airMAX NanoBeam M5 outdoor wireless bridge designed for 5 GHz point-to-point and wireless networking deployments. Its integrated 16 dBi antenna, compact enclosure, and pole or wall mounting support make it suitable for directional outdoor links.
Wireless Performance
The NBE-M5-16 operates across the 5150–5875 MHz range and provides 16 dBi antenna gain with dual-linear polarization. It supports 5, 8, 10, 20, 30, and 40 MHz channel bandwidths and has a maximum VSWR of 1.5:1.
Network and Power
The device provides one 10/100 MbE RJ45 Ethernet interface and uses passive two-pair PoE for power. Ubiquiti specifies a 24V, 0.5A PoE adapter, a supported voltage range of 20–27V DC, and maximum power consumption of 6W.
Outdoor Deployment
The outdoor UV-stabilized polycarbonate enclosure is designed for outdoor installation. The NBE-M5-16 supports pole mounting with the included mounting kit or wall mounting, with wind survivability rated to 200 km/h (125 mph).
Key Features
- 5 GHz airMAX wireless bridge with 16 dBi antenna gain
- 5150–5875 MHz supported frequency range
- 10/100 MbE RJ45 network interface
- Passive two-pair PoE with 24V, 0.5A adapter
- 200 km/h wind survivability for outdoor deployments
Applications
The NBE-M5-16 can be deployed for directional outdoor wireless links, building-to-building connectivity, remote network extensions, and other installations requiring a compact 5 GHz bridge with integrated directional antenna capability.
DC Supplies Product Note
The NBE-M5-16 uses passive PoE rather than 802.3af/at PoE. Power infrastructure should therefore be checked for the required 20–27V DC operating range and two-pair passive PoE method before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | NBE-M5-16 |
| Product Type | Outdoor Wireless Bridge |
| Series | airMAX NanoBeam M5 |
| Operating Frequency | 5150–5875 MHz |
| Antenna Gain | 16 dBi |
| Polarization | Dual-Linear |
| Maximum VSWR | 1.5:1 |
| Channel Bandwidth | 5 / 8 / 10 / 20 / 30 / 40 MHz |
| Networking Interface | 1 × 10/100 MbE RJ45 |
| Power Method | Passive PoE, 2-pair |
| Power Supply | 24V, 0.5A PoE adapter |
| Supported Voltage Range | 20–27V DC |
| Maximum Power Consumption | 6W |
| Enclosure Material | Outdoor UV-stabilized polycarbonate |
| Mounting | Pole mount, wall mount |
| Wind Loading | 21.4 N at 200 km/h (4.8 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Operating Temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating Humidity | 5–95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, RoHS, Anatel |
| Dimensions | 140 × 140 × 54 mm (5.5 × 5.5 × 2.1 in) |
| Weight | 320 g (0.7 lb) |
FAQs
What is the Ubiquiti NBE-M5-16?
It is a 5 GHz airMAX NanoBeam M5 outdoor wireless bridge with an integrated 16 dBi directional antenna.
What Ethernet interface does it provide?
The device has one 10/100 MbE RJ45 Ethernet port.
What power method does the NBE-M5-16 use?
It uses passive two-pair PoE with a 24V, 0.5A PoE adapter.
What is the maximum power consumption?
Maximum power consumption is 6W.
Can the NBE-M5-16 be installed outdoors?
Yes. It has an outdoor UV-stabilized polycarbonate enclosure, a -40 to 70 °C operating range, and 200 km/h wind survivability.
