Overview

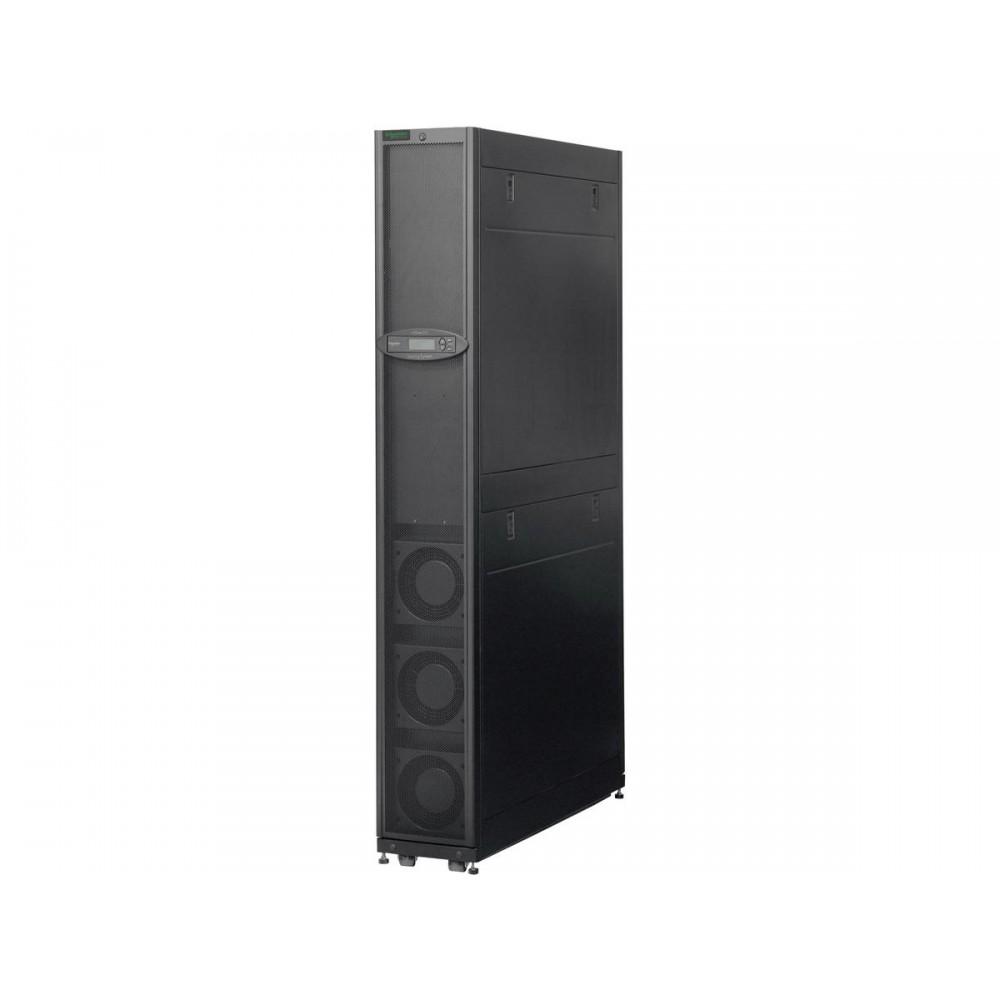

The APC ACSC100 InfraStruXure InRow SC is a self-contained, air-cooled precision cooling unit designed for data centers, server rooms, and network equipment environments. Its compact 300mm-wide cabinet fits within compatible equipment rows and helps regulate server inlet temperatures. The unit features a refrigerant-based cooling system, variable airflow, integrated controls, and network management capabilities.
Key Features
- Self-contained, air-cooled InRow SC cooling design.
- Maximum evaporator airflow of 1,200 CFM.
- Compact 300mm-wide, 42U cabinet format.
- R-410A refrigerant-based cooling system.
- Microprocessor-based cooling control.
- Multifunction LCD status and control console.
- Network interface and remote management capabilities.
- Fault-tolerant fan system with field-replaceable components.
- Includes exhaust duct kit and product documentation as specified by the manufacturer.
Technical Specifications
| Specification | Details |
|---|
| Brand | APC by Schneider Electric |
| Part Number / MPN | ACSC100 |
| Product Type | InRow SC self-contained air-cooled cooling unit |
| Series | InfraStruXure InRow SC |
| Cooling Capacity | Approximately 5.3kW (reported product specification) |
| Maximum Heat Rejection | 34,000 BTU/hr (10,000W), per technical data manual |
| Maximum Evaporator Airflow | 1,200 CFM (2,038 m³/hr) |
| Minimum Evaporator Airflow | 400 CFM (679 m³/hr) |
| Maximum Condenser Airflow | 850 CFM (1,440 m³/hr) |
| Electrical Input | 208–230V AC, single-phase, 60Hz |
| Rated Current | 16A maximum |
| Rated Power Consumption | 2,940W |
| Refrigerant | R-410A |
| Refrigerant Charge | 52oz (1.47kg) |
| Cabinet Height | 42U class; 78.4 inches |
| Cabinet Width | 11.8 inches (300mm) |
| Cabinet Depth | 42.1 inches (1,069mm) |
| Net Unit Weight | 365lbs (165.9kg) |
| Color | Black |
| Control Interface | Multifunction LCD control console |
| Network Management | Network interface and remote management support |
| Product Status | Obsolete / discontinued model |
Applications
- Data centers and enterprise server rooms.
- Network closets and IT equipment rooms.
- Row-based server cooling installations.
- IT facilities requiring localized temperature management.
Compatibility and Installation
The ACSC100 is designed for compatible APC InfraStruXure InRow SC installations. Installation requires appropriate electrical service, condenser exhaust ducting, condensate drainage, and suitable room clearances. Verify the ventilation path and site requirements against the manufacturer's installation manual before deployment. This is a legacy model, so replacement parts and service availability should be confirmed before purchasing.
Frequently Asked Questions
1. What is the APC ACSC100?
It is a self-contained, air-cooled InRow SC precision cooling unit for IT and data center environments.
2. What is its maximum airflow?
The published maximum evaporator airflow is 1,200 CFM.
3. What power supply does it require?
The ACSC100 is specified for 208–230V AC, single-phase, 60Hz input, with a rated current of 16A.
4. Which refrigerant does it use?
The unit uses R-410A refrigerant.
5. How much space does it occupy?
The cabinet measures approximately 42.1 inches deep, 11.8 inches wide, and 78.4 inches high.
6. Is the ACSC100 still a current model?
Distributor listings identify this model as obsolete. Confirm availability, service support, and parts before ordering.
DC Supplies Product Note
DC Supplies recommends confirming the exact model, electrical requirements, physical dimensions, and installation compatibility before purchase. This is a legacy precision cooling product, and availability and warranty coverage may vary by supplier.
