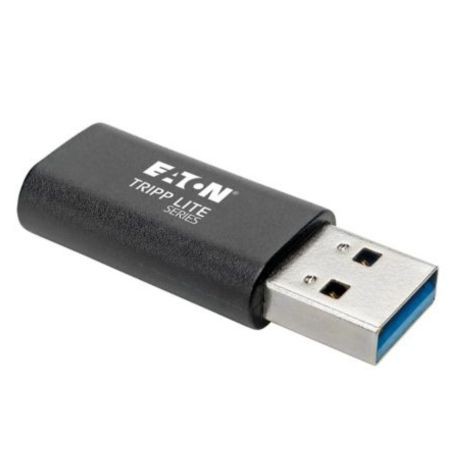

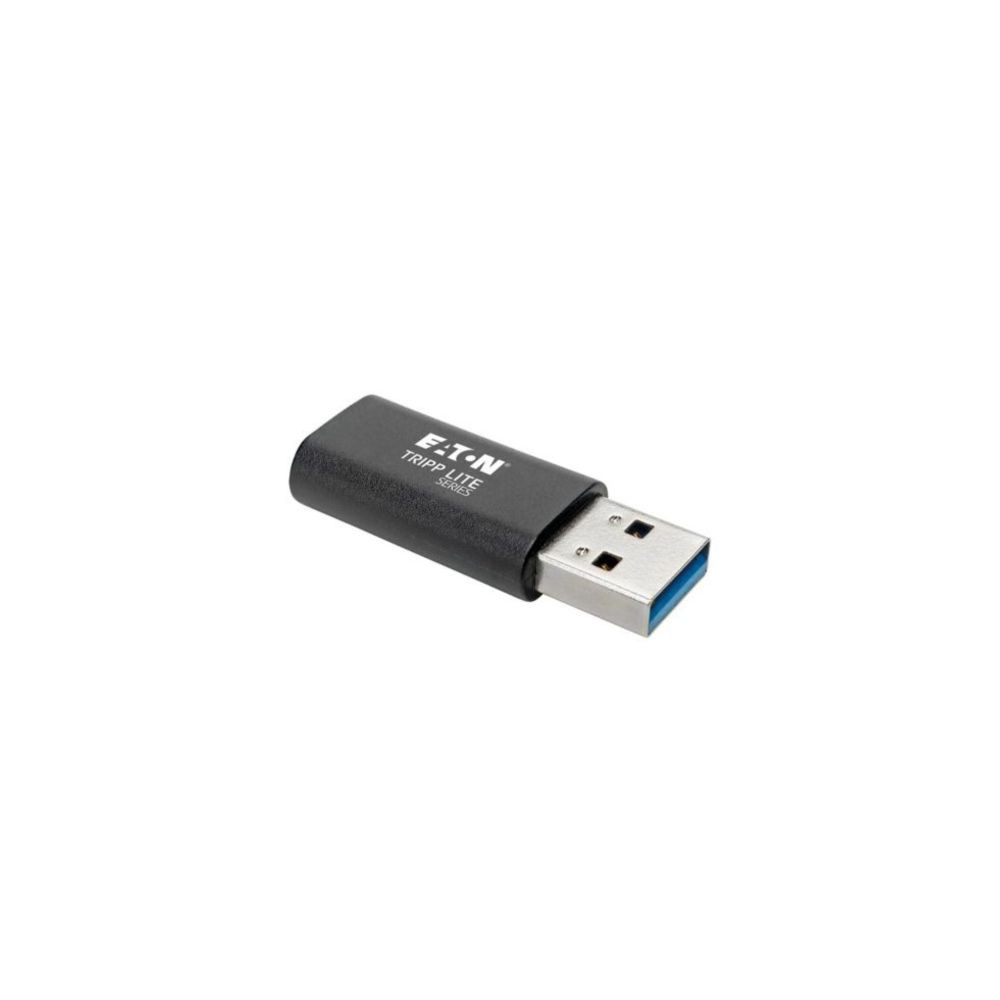

Eaton U329-000-10G Tripp Lite USB C to USB A Adapter 10 Gbps
The Eaton Tripp Lite U329-000-10G is a compact USB-C female to USB-A male adapter for connecting devices and cables with USB-C connectors to computers, laptops, USB hubs, and other equipment with USB-A ports. It supports USB 3.2 Gen 2 data transfer speeds up to 10 Gbps and operates without external power or software.
Connectivity and Performance
The adapter provides a USB-A male connection on the host side and a USB-C female receptacle for a compatible USB-C cable or device connector. Eaton specifies USB 3.2 Gen 2 performance up to 10 Gbps, making the adapter suitable for high-speed data transfer with compatible hardware.
Power and Charging
The U329-000-10G can provide up to 900mA (0.9A) of downstream power for compatible USB-C devices. Eaton identifies bus-powered operation and USB charging among the adapter's features.
Video Compatibility
The U329-000-10G is intended for data transfer and does not support video transmission. It should therefore be used for USB data and compatible charging applications rather than USB-C video output.
Key Features
- USB-C female to USB-A male adapter
- USB 3.2 Gen 2 data transfer up to 10 Gbps
- Up to 900mA (0.9A) downstream power
- Backward compatible with previous USB generations
- Plug-and-play operation
- No external power or software required
- Gold contact plating
- Black construction
- Compact adapter design
- Data transfer use; video transmission is not supported
Typical Applications
- Connecting a USB-C cable or device to a USB-A computer port
- Connecting compatible USB-C storage devices to USB-A systems
- Using USB-C peripherals with USB-A laptops and computers
- Connecting USB-C devices through compatible USB hubs with USB-A ports
- USB data transfer between newer USB-C devices and systems equipped with USB-A
DC Supplies Product Note
The U329-000-10G is more than a simple mechanical connector converter because its USB 3.2 Gen 2 specification supports data rates up to 10 Gbps when the connected host, cable, and device all support the required standard. One important selection detail is that Eaton specifically excludes video transmission, so this adapter should not be chosen when the intended USB-C connection is for display output.
Specifications
| Specification | Details |
|---|
| Manufacturer | Eaton Tripp Lite |
| Part Number | U329-000-10G |
| Product Type | USB Adapter |
| Connector A | USB-A Male |
| Connector B | USB-C Female |
| USB Specification | USB 3.2 Gen 2 |
| Maximum Data Transfer Rate | Up to 10 Gbps |
| Power Provided | Up to 900mA (0.9A) downstream power |
| Charging | USB charging supported |
| Video Transmission | Not supported |
| Color | Black |
| Contact Plating | Gold |
| Connector Plating | Nickel |
| Material | PVC, UL94V-0 |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Storage Temperature | 14° to 158°F (-10° to 70°C) |
| Operating Humidity | 10% to 85% RH, non-condensing |
| Storage Humidity | 5% to 90% RH, non-condensing |
| Warranty | 3-year limited warranty |
| Compliance | FCC, RoHS, CE, REACH |
FAQs
What connectors does the U329-000-10G have?
The adapter has one USB-A male connector and one USB-C female receptacle.
What USB speed does the U329-000-10G support?
It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps when used with compatible equipment.
Does the U329-000-10G support charging?
Yes. Eaton specifies up to 900mA (0.9A) of downstream power for compatible USB-C devices.
Does the U329-000-10G support USB-C video?
No. Eaton specifies that the U329-000-10G is intended for data transfer and does not support video transmission.
Does the adapter require external power or drivers?
No. It is designed for plug-and-play operation without external power or software.
What devices can be connected with the U329-000-10G?
Eaton lists compatible devices including laptops, Chromebooks, smartphones, and tablets. The adapter can also be used with compatible USB-C cables, hubs, and storage devices.
