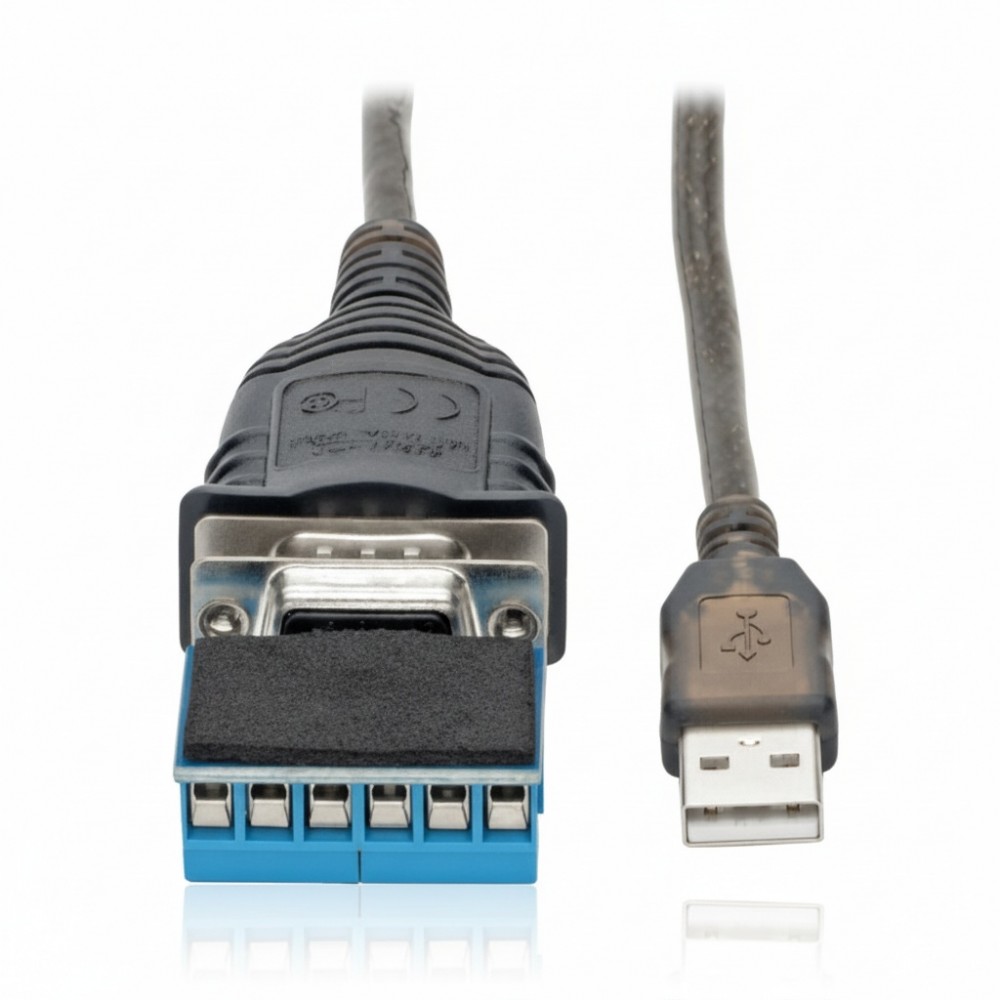

Eaton U209-30N-IND USB to RS485/RS422 Adapter Cable 230 Kbps

Overview :

The Eaton U209-30N-IND is a USB to RS422/RS485 serial adapter cable designed to interface legacy serial devices with modern USB-equipped systems. It is deployed by control system engineers, industrial automation teams, and network technicians who need to maintain RS485/RS422 communication without replacing existing field devices. The cable eliminates the requirement for native serial ports on workstations and laptops.

From a deployment standpoint, the adapter integrates an FTDI chipset and supports data transfer rates up to 230 Kbps, enabling reliable communication with industrial controllers, sensors, and serial peripherals. It operates as a USB-powered device, removing the need for external power supplies and simplifying field installations. Double shielding is implemented to mitigate EMI and RFI interference in electrically noisy environments.

This adapter is typically deployed in edge environments, industrial control cabinets, field service kits, and engineering workstations. It is commonly used in OT networks, SCADA systems, and serial-based monitoring infrastructures where RS485/RS422 signaling remains standard. The compact cable format allows direct connection without rack mounting or additional conversion hardware.

Compatibility is aligned with USB 2.0 host interfaces and backward compatible with USB 1.1 systems. It supports Windows, Linux, and macOS platforms, making it suitable for mixed OS environments in industrial and enterprise deployments. The DB9 serial interface and included terminal block adapter provide flexibility for both standard and hardwired serial connections.

In a practical deployment scenario, a field engineer can connect a laptop to a PLC or RS485-based sensor network using this cable to perform diagnostics, firmware updates, or configuration tasks. The COM port retention feature ensures consistent port mapping across reconnections, reducing setup time during repeated service operations.

This device should not be used in high-throughput serial environments requiring speeds beyond 230 Kbps or in applications needing long-distance cable runs without additional RS485 infrastructure. It is also not suitable where galvanic isolation or industrial-grade surge protection is required, as those features are not part of this adapter design.

Key Features

• USB-A to DB9 RS485/RS422 serial conversion
• Supports up to 230 Kbps serial data rate
• FTDI chipset with COM port retention logic
• Double shielding for EMI/RFI noise reduction
• USB-powered operation without external supply
