Overview

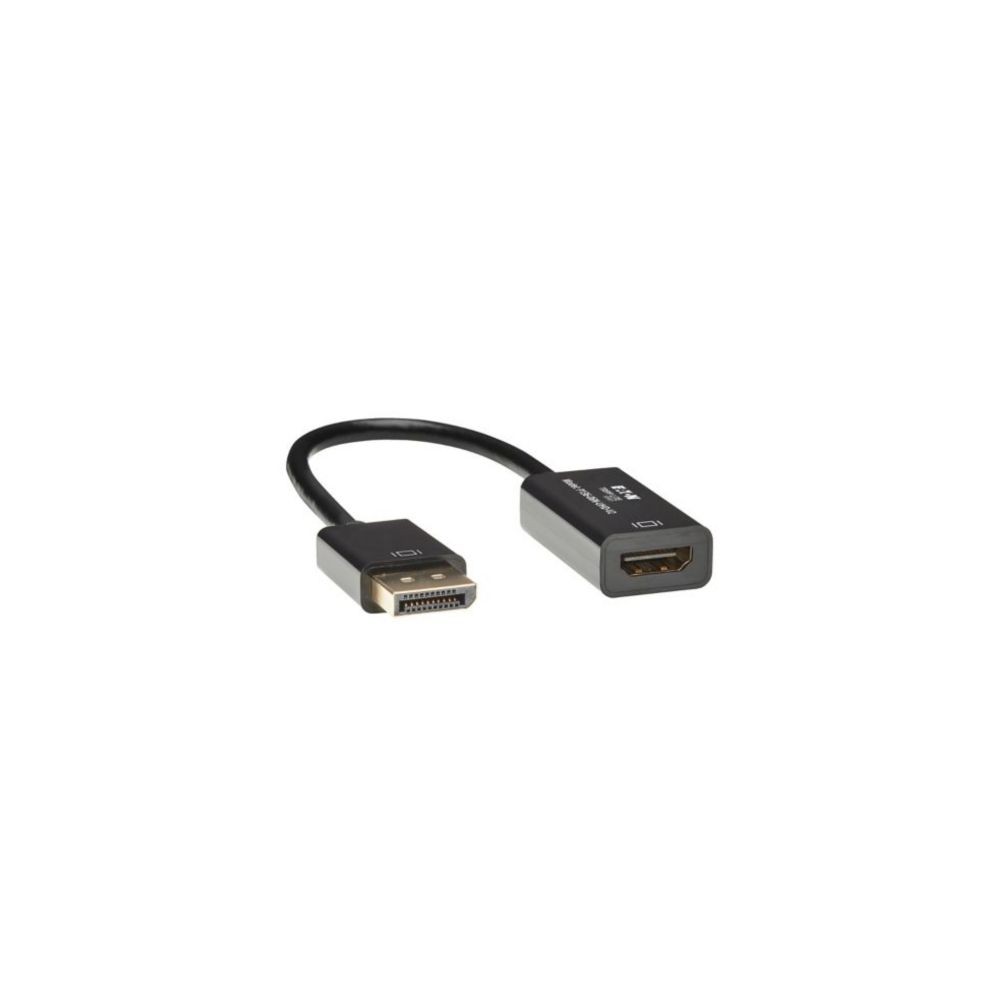

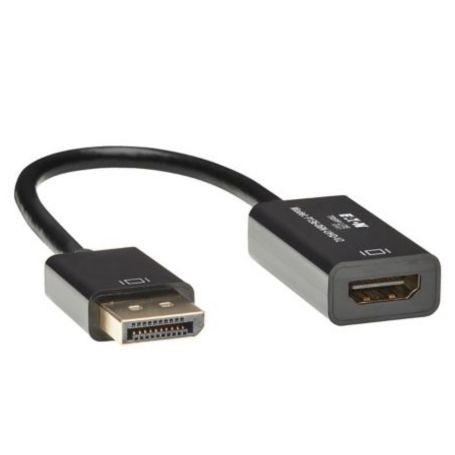

The Eaton Tripp Lite P136-06N-UHD-V2 is an active DisplayPort 1.2 to HDMI adapter designed to connect a DisplayPort computer or graphics source to an HDMI monitor, projector, television, or digital display. Its male DisplayPort connector and female HDMI connector allow an existing HDMI display to be used with a DisplayPort source.
Technical Information
This active converter supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz and supports 7.1-channel surround sound. It converts both Single-Mode and Dual-Mode DisplayPort output and supports HDCP 1.3 and DPCP 1.0. The adapter is designed for plug-and-play operation without software, drivers, or an external power supply.
Compatibility
- DisplayPort 1.2 source to HDMI display connection
- HDMI monitors, projectors, televisions, and compatible digital signage displays
- Single-Mode and Dual-Mode (DP++) DisplayPort outputs
- Backward compatible with previous DisplayPort generations
- Suitable for graphics sources that do not provide DP++ output, including supported AMD Eyefinity configurations
Key Features
- Active DisplayPort-to-HDMI signal conversion
- Supports 3840 x 2160 4K resolution at 24/30 Hz
- Supports 7.1-channel surround sound
- HDCP 1.3 and DPCP 1.0 compliant
- Gold-plated connectors and contacts
Applications
The adapter can be used to connect DisplayPort-equipped desktop computers, workstations, and compatible graphics sources to existing HDMI displays. Typical applications include office displays, conference rooms, classrooms, digital signage, presentations, and general multimedia setups.
DC Supplies Product Note
Because this is an active converter, it can convert DisplayPort output for HDMI displays even with sources that do not provide DP++ output. No separate power supply is required.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | P136-06N-UHD-V2 |
| Product Type | DisplayPort to HDMI Active Adapter / Video Converter |
| Series | Tripp Lite |
| Input Connector | DisplayPort male |
| Output Connector | HDMI female |
| DisplayPort Version | 1.2 |
| Maximum Video Resolution | 3840 x 2160 (4K x 2K) at 24/30 Hz |
| Audio Support | 7.1-channel surround sound |
| HDCP | 1.3 |
| DPCP | 1.0 |
| Conversion Type | Active |
| DisplayPort Modes | Single-Mode and Dual-Mode |
| Cable Length | 6 in. (15.24 cm) |
| Connector Plating | Gold-plated |
| Color | Black |
| Power Requirement | No external power supply required |
| Software / Drivers | Not required |
| Warranty | 3-year limited warranty |
Package Contents
P136-06N-UHD-V2 DisplayPort 1.2 to HDMI Active Converter, M/F, 6 in.
FAQs
What does the P136-06N-UHD-V2 connect?
It connects a DisplayPort source to an HDMI display using a male DisplayPort connector and female HDMI connector.
Does it support 4K video?
Yes. It supports resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz.
Is the adapter active or passive?
It is an active converter and can convert both Single-Mode and Dual-Mode DisplayPort output.
Does it support audio?
Yes. The adapter supports audio, including 7.1-channel surround sound.
Does it require drivers or an external power supply?
No. The manufacturer specifies plug-and-play operation without software, drivers, or a separate power supply.
