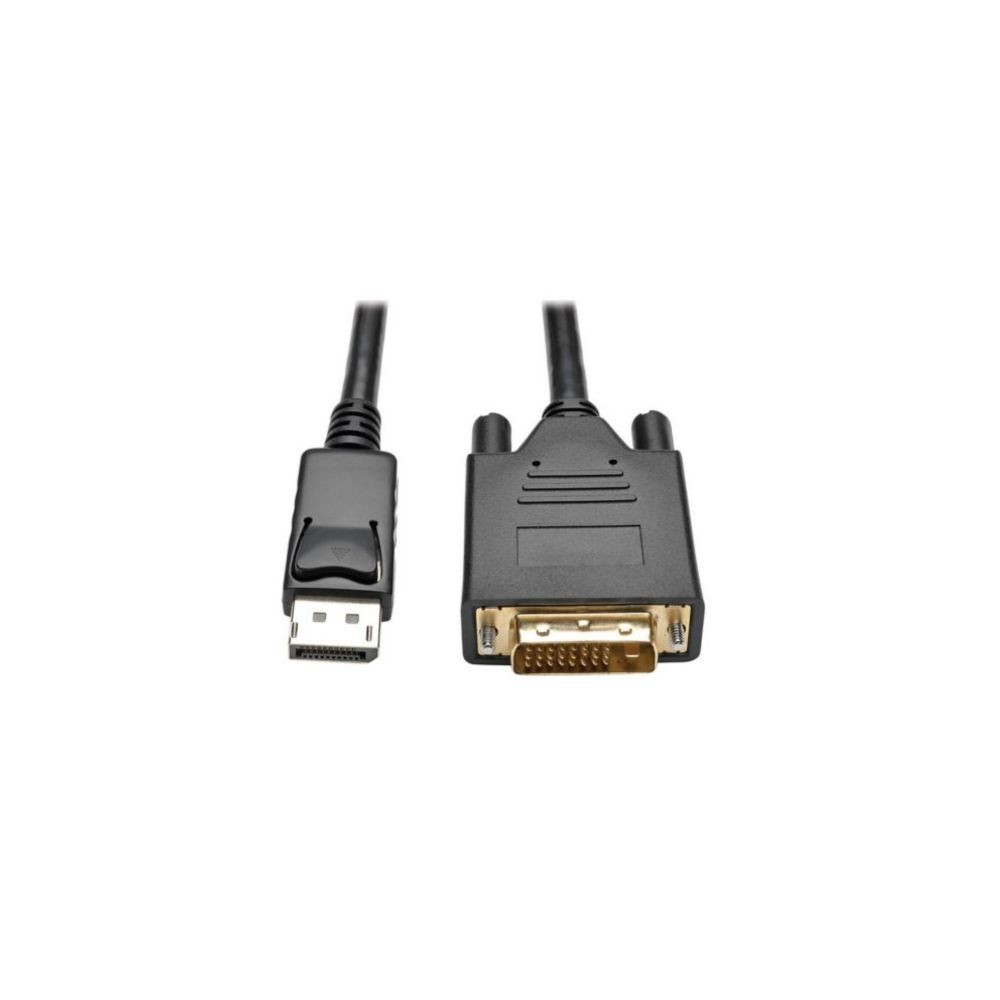

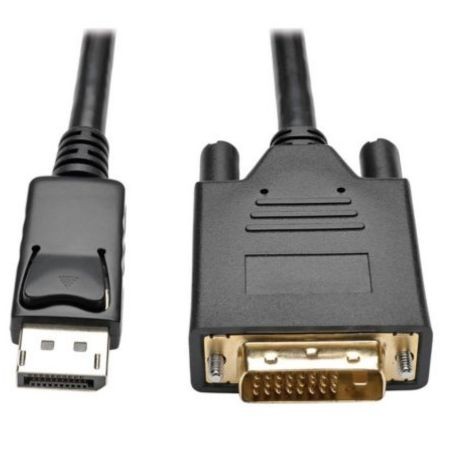

Eaton P581-006-V2 Tripp Lite DisplayPort 1 2 to DVI D Active Adapter Cable 6ft
The Eaton Tripp Lite P581-006-V2 is a 6 ft active DisplayPort 1.2 to DVI-D adapter cable designed to connect a DisplayPort-equipped computer to a compatible DVI monitor, projector, or television. The cable combines signal conversion and the physical connection in one assembly, so a separate video adapter is not required.
The P581-006-V2 supports computer video resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p). Its active circuitry converts both Single-Mode and Dual-Mode (DP++) DisplayPort output, including DisplayPort sources that do not provide DP++ signaling.
Key Features
- Active DisplayPort 1.2 to DVI-D adapter cable
- 6 ft (1.83 m) cable length
- Latching DisplayPort male connector
- DVI-D male connector wired to DVI-D Single Link
- Supports up to 1920 x 1200 computer resolution and 1920 x 1080 (1080p) HD video
DisplayPort to DVI Connectivity
The P581-006-V2 provides a direct connection from a DisplayPort computer or graphics source to a DVI-equipped display. Because it is an active adapter, it can convert both Single-Mode and Dual-Mode DisplayPort output rather than depending on the source's DP++ capability. This makes it suitable for retaining compatible DVI displays when upgrading the computer or graphics hardware to DisplayPort.
Cable Construction
The cable has a black PVC jacket with a VW-1 rating and uses foil-and-braid shielding. Eaton specifies gold-plated connectors and contacts, while the DisplayPort connector uses a latching or gripping design. Integral strain relief and molded connectors are also specified for the cable assembly.
Applications
- DisplayPort computers to DVI monitors
- DisplayPort graphics cards to DVI displays
- DisplayPort systems to DVI projectors
- Digital signage using compatible DVI displays
- Office, conference room, classroom, and workstation video connections
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P581-006-V2 |
| Product Type | DisplayPort to DVI-D Active Adapter Cable |
| Cable Type | Active |
| Cable Length | 6 ft (1.83 m) |
| Connector A | DisplayPort Male |
| Connector B | DVI-D Dual Link Male, wired to DVI-D Single Link |
| DisplayPort Specification | 1.2 |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Video Resolution | 1920 x 1080 (1080p) |
| Color Depth | 24-bit True Color |
| DisplayPort Output Compatibility | Single-Mode and Dual-Mode (DP++) |
| DisplayPort Connector | Latching / gripping |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | Foil and braid / double shielded |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Operating Humidity | 10–85% RH, non-condensing |
| Storage Humidity | 5–90% RH, non-condensing |
| Compliance | RoHS |
| UPC | 037332191977 |
| Warranty | 3-year limited warranty |
Package Contents
1 x Eaton Tripp Lite P581-006-V2 DisplayPort 1.2 to DVI-D Active Adapter Cable, 6 ft.
Frequently Asked Questions
Is the P581-006-V2 an active adapter cable?
Yes. It is an active DisplayPort-to-DVI adapter cable with built-in signal conversion.
What resolution does it support?
Eaton specifies computer video resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p).
What connectors does it use?
It has a DisplayPort male connector with latching/gripping hardware and a DVI-D Dual Link male connector that is wired to DVI-D Single Link.
Does it require a DP++ output?
No. The P581-006-V2 is an active adapter designed to convert both Single-Mode and Dual-Mode (DP++) DisplayPort output.
Can it connect a DisplayPort computer to an older DVI monitor?
Yes. It is specifically designed to connect a DisplayPort-equipped computer to a compatible DVI monitor, projector, or television.
