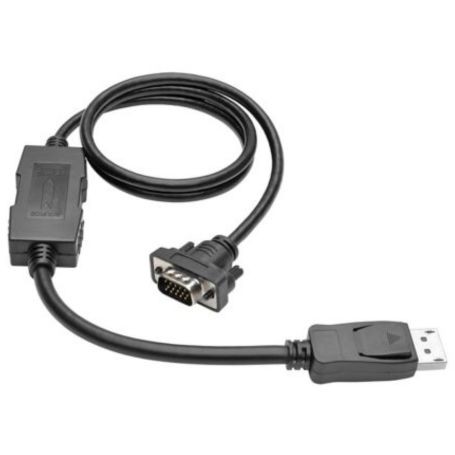

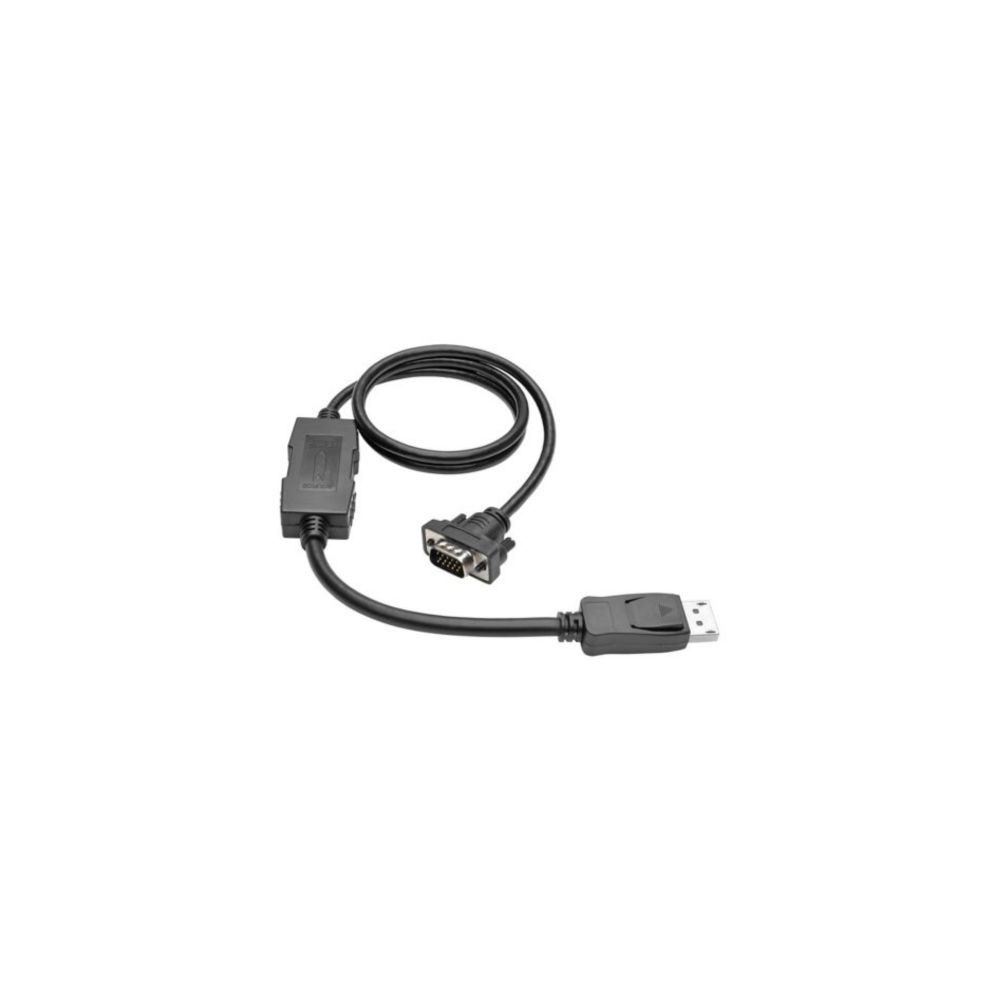

Eaton P581-003-VGA-V2 Tripp Lite DisplayPort 1 2 to VGA Active Adapter Cable 3 ft
The Eaton Tripp Lite P581-003-VGA-V2 is a 3 ft active DisplayPort 1.2 to VGA adapter cable for connecting a DisplayPort-equipped computer to a VGA monitor, projector, or television. It combines the signal conversion and cable connection in one assembly, eliminating the need for a separate DisplayPort-to-VGA adapter.
The active design supports DisplayPort sources with both Single-Mode and Dual-Mode (DP++) output. Eaton specifies computer video resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p). The cable is also intended for DisplayPort systems where a passive adapter is not appropriate.
Key Features
- Active DisplayPort 1.2 to VGA adapter cable
- 3 ft (0.91 m) cable length
- DisplayPort male connector with latching mechanism
- HD15 male VGA connector
- Supports up to 1920 x 1200 computer resolution and 1920 x 1080 (1080p) HD video
DisplayPort to VGA Connectivity
The P581-003-VGA-V2 provides a direct connection from a DisplayPort computer or graphics source to a VGA display. Its active circuitry converts the DisplayPort signal to VGA, allowing it to work with DisplayPort outputs that do not provide DP++ dual-mode signaling.
Cable Construction
The cable uses a black PVC jacket with a VW-1 rating. Eaton/Tripp Lite specifies nickel-plated connectors with gold-plated contacts, while the DisplayPort connector uses a latching mechanism to help maintain the connection. Manufacturer and distributor data identify the cable as round and double-shielded.
Applications
- DisplayPort computers to VGA monitors
- DisplayPort laptops to VGA projectors
- DisplayPort graphics cards to legacy VGA displays
- Office and classroom presentation systems
- Conference rooms using VGA projectors or monitors
- DisplayPort systems requiring active VGA conversion
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P581-003-VGA-V2 |
| Product Type | DisplayPort to VGA Active Adapter Cable |
| Cable Type | Active |
| Cable Length | 3 ft (0.91 m) |
| Connector A | DisplayPort Male |
| Connector B | HD15 Male |
| DisplayPort Version | 1.2 |
| Maximum Computer Resolution | 1920 x 1200 |
| Maximum HD Video Resolution | 1920 x 1080 (1080p) |
| DisplayPort Output Compatibility | Single-Mode and Dual-Mode (DP++) |
| DisplayPort Connector | Latching |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Shielding | Double shielded |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Technology | VGA/SVGA; DisplayPort |
| Compliance | RoHS |
| UPC | 037332186201 |
Package Contents
1 x Eaton Tripp Lite P581-003-VGA-V2 DisplayPort 1.2 to VGA Active Adapter Cable, 3 ft.
Frequently Asked Questions
What does the P581-003-VGA-V2 connect?
It connects a DisplayPort-equipped computer or graphics source to a VGA monitor, projector, or television using a single cable.
Is this a passive or active adapter cable?
It is an active adapter cable. The active circuitry converts the DisplayPort signal to VGA.
What resolution does it support?
Eaton/Tripp Lite specifies computer resolutions up to 1920 x 1200 and HD video resolutions up to 1920 x 1080 (1080p).
Does it require a DP++ DisplayPort output?
No. The manufacturer specifically identifies the P581-003-VGA-V2 as an active adapter for use with any DisplayPort port and notes compatibility with DisplayPort 1.2 systems.
What connectors are used?
The cable has a DisplayPort male connector on one end and an HD15 male VGA connector on the other.
Can it be used with an MST hub?
The older P581-003-VGA model is specifically documented as not intended for MST hubs, while Eaton/Tripp Lite identifies the P581-003-VGA-V2 as the DisplayPort 1.2-compliant version for MST hub compatibility.
