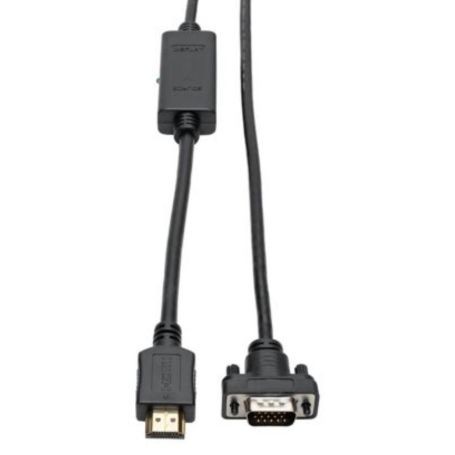

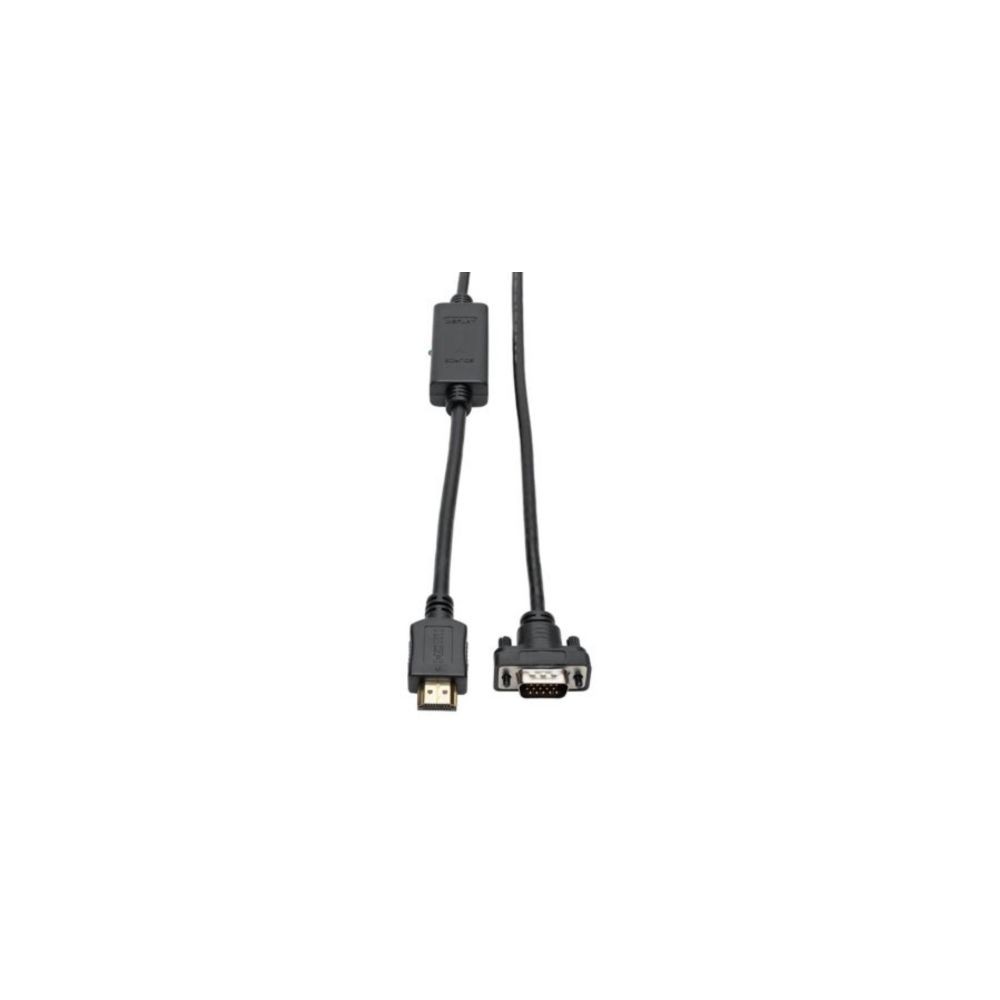

Eaton P566-006-VGA Tripp Lite HDMI to VGA Active Adapter Cable 6 ft
The Eaton P566-006-VGA is a 6 ft active HDMI-to-VGA adapter cable designed to connect an HDMI-equipped source to a VGA monitor, projector, or television. It converts the digital HDMI video signal for display on compatible VGA equipment without requiring software or display drivers.
The cable supports video resolutions up to 1920 x 1200 at 60 Hz and uses a low-profile HD15 male connector designed for installations where clearance around the VGA connection is limited. The cable also includes a Micro-USB power input for situations where additional power is required.
HDMI Source to VGA Display
The P566-006-VGA connects an HDMI male source connector to a low-profile HD15 male VGA display connector. It is intended for one-way HDMI-to-VGA video conversion, making it suitable for connecting newer HDMI source equipment to compatible legacy VGA displays.
Active Conversion and USB Power
Because HDMI and VGA use different signal types, the P566-006-VGA uses active conversion circuitry rather than a passive cable connection. The Micro-USB port can be connected to a USB charger or available USB port when additional power is needed for the conversion process.
Low-Profile VGA Connector
The low-profile HD15 connector is designed to fit neatly in tighter spaces behind monitors, projectors, and other VGA-equipped displays. Foil and braid shielding helps protect the video connection against EMI/RFI line noise.
Key Features
- 6 ft (1.83 m) active HDMI-to-VGA adapter cable
- HDMI male to low-profile HD15 VGA male connection
- Supports resolutions up to 1920 x 1200 at 60 Hz
- Micro-USB power input for additional power when required
- Foil and braid shielding with gold-plated HDMI connector
DC Supplies Product Note
The Micro-USB power port is useful to keep in mind during installation: the adapter may operate without external USB power, but Eaton's instructions specify connecting USB power if a connected system does not provide sufficient power for the active conversion.
Applications
- HDMI computer to VGA monitor
- HDMI source to VGA projector
- HDMI media equipment to VGA television
- Conference room presentation systems
- Digital signage using VGA displays
- Classroom and office display installations
Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | P566-006-VGA |
| Product Type | HDMI to VGA Active Adapter Cable |
| Cable Length | 6 ft (1.83 m) |
| Input Connector | HDMI Male |
| Output Connector | HD15 VGA Male, Low Profile |
| Power Connector | Micro-USB B Female |
| Adapter Type | Active |
| Technology | HDMI / VGA / SVGA |
| Maximum Supported Resolution | 1920 x 1200 @ 60 Hz |
| Maximum Video Resolution | 1080p |
| Shielding | Foil and braid |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Color | Black |
| Connector Plating | Gold-plated HDMI connector |
| Driver Requirement | None |
| TAA Compliant | Yes |
| UPC | 037332201119 |
| Warranty | 3-year limited warranty |
Frequently Asked Questions
What does the P566-006-VGA connect?
It connects an HDMI-equipped source to a VGA display using an active HDMI-to-VGA conversion circuit.
What resolution does the P566-006-VGA support?
It supports video resolutions up to 1920 x 1200 at 60 Hz.
Does the P566-006-VGA require drivers?
No. Eaton specifies plug-and-play operation without software or drivers.
What is the Micro-USB port used for?
The Micro-USB port provides an additional power connection when the HDMI source does not provide sufficient power for the active converter. A USB cable is not included with the adapter cable.
Can I connect a VGA source to an HDMI display?
No. The P566-006-VGA is designed for HDMI source to VGA display conversion. It is not a bidirectional VGA-to-HDMI converter.
Why is the VGA connector low profile?
The low-profile HD15 connector is designed to fit more easily in tight spaces around monitors, projectors, and other VGA equipment.
