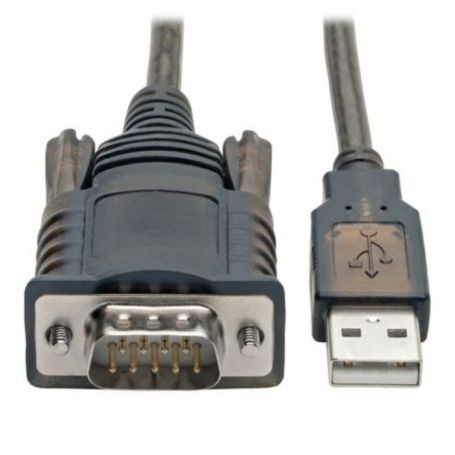

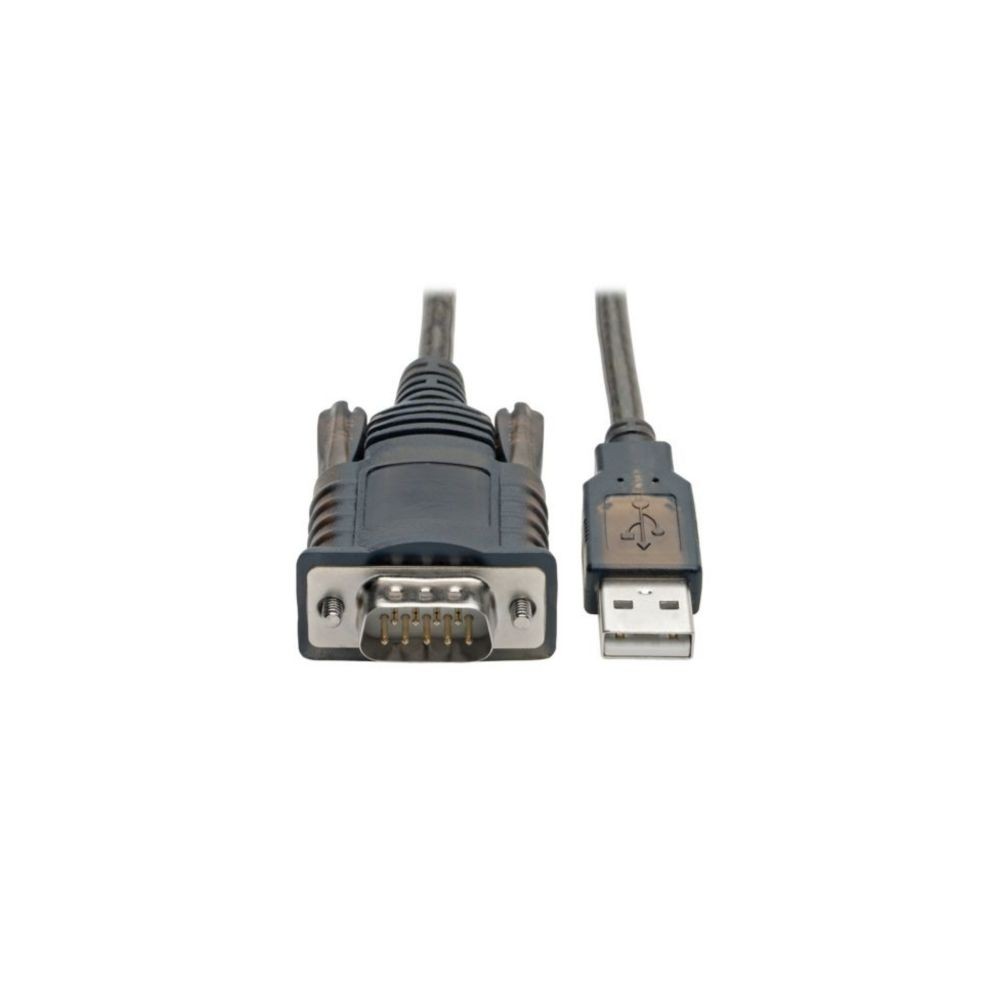

Eaton U209-005-COM USB to RS232 Adapter Cable
The Eaton U209-005-COM Tripp Lite USB to RS232 adapter cable adds an RS232 serial connection to a computer through an available USB-A port. It uses an FTDI chipset, connects USB-A male to DB9 male, and supports serial data transfer speeds up to 230 Kbps over a 5 ft (1.52 m) cable.
USB to RS232 Serial Connectivity
The U209-005-COM is designed for computers that need to add an RS232 serial connection through USB. The USB 2.0 adapter uses a USB-A male connector on the host side and a DB9 male connector for the serial device.
The FTDI chipset supports Windows, Mac, and Linux systems. The adapter is USB-powered, so it does not require a separate external power supply.
COM Retention and Auto-Sensing
COM retention automatically reassigns the same COM port values to each port when the adapter is disconnected or the system is rebooted, reducing the need to reconfigure serial connections.
An auto-sensing feature helps resolve DCE/DTE conflicts without requiring cross-wired serial cables or adapters. The adapter also supports remote wake-up and power management.
Shielding and Serial Data Transfer
The Eaton U209-005-COM supports data transfer speeds up to 230 Kbps and is compatible with USB 2.0. Foil and braid shielding helps protect the serial signal from electromagnetic and radio-frequency interference (EMI/RFI).
Applications
- Connecting RS232 serial devices to computers through USB-A
- Point-of-sale printers
- Barcode readers and scanners
- Surveillance cameras with serial connectivity
- Card readers
- LED sign boards with serial ports
Key Features
- USB-A male to DB9 male RS232 adapter cable
- FTDI chipset with Windows, Mac, and Linux compatibility
- Up to 230 Kbps serial data transfer
- COM retention for consistent COM port assignments
- Auto-sensing for DCE/DTE conflict resolution
DC Supplies Product Note
The 5 ft cable length provides additional placement flexibility when the computer and RS232 device are not positioned directly beside each other, while the USB-powered design keeps the installation limited to the computer's USB connection without a separate power adapter.
Technical Specifications
| Specification | Details |
|---|
| Brand | Eaton / Tripp Lite |
| Part Number / MPN | U209-005-COM |
| Product Type | USB to RS232 Adapter Cable |
| Host Connector | USB-A Male |
| Serial Connector | DB9 Male |
| Chipset | FTDI |
| USB Specification | USB 2.0 |
| Serial Interface | RS232 |
| Maximum Data Transfer Rate | 230 Kbps |
| Cable Length | 5 ft (1.52 m) |
| COM Retention | Yes |
| Auto-Sensing | Yes; resolves DCE/DTE conflicts |
| Power | USB bus powered |
| External Power Supply | Not required |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Storage Temperature | -4°F to 176°F (-20°C to 80°C) |
| Operating Humidity | 0–80% non-condensing |
| Shielding | Foil and braid |
| Color | Black |
| Cable Jacket Rating | VW-1 |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Product Weight | 0.24 lb |
| Product Dimensions | 4.13 in L × 4.65 in W × 1.22 in H |
| Warranty | 3-year limited |
| UPC | 037332210227 |
System Compatibility
The Eaton U209-005-COM is compatible with Windows, Mac, and Linux computers with an available USB port. Drivers are required for operation, and the package includes a driver CD.
Package Contents
- U209-005-COM RS232 to USB Adapter Cable, 5 ft
- Driver CD
- Owner's manual
Frequently Asked Questions
What connectors does the Eaton U209-005-COM use?
The adapter has a USB-A male connector on one end and a DB9 male connector on the other.
What is the maximum data transfer speed?
The U209-005-COM supports serial data transfer speeds up to 230 Kbps.
Does the U209-005-COM retain COM port assignments?
Yes. Its COM retention feature automatically reassigns the same COM port values when the adapter is disconnected or the system is rebooted.
Does this adapter require an external power supply?
No. The U209-005-COM is USB-powered and does not require a separate external power supply.
What operating systems are supported?
The FTDI-based adapter is compatible with Windows, Mac, and Linux systems.
What is included with the adapter?
The package includes the U209-005-COM adapter cable, driver CD, and owner's manual.
