Detailed Specifications

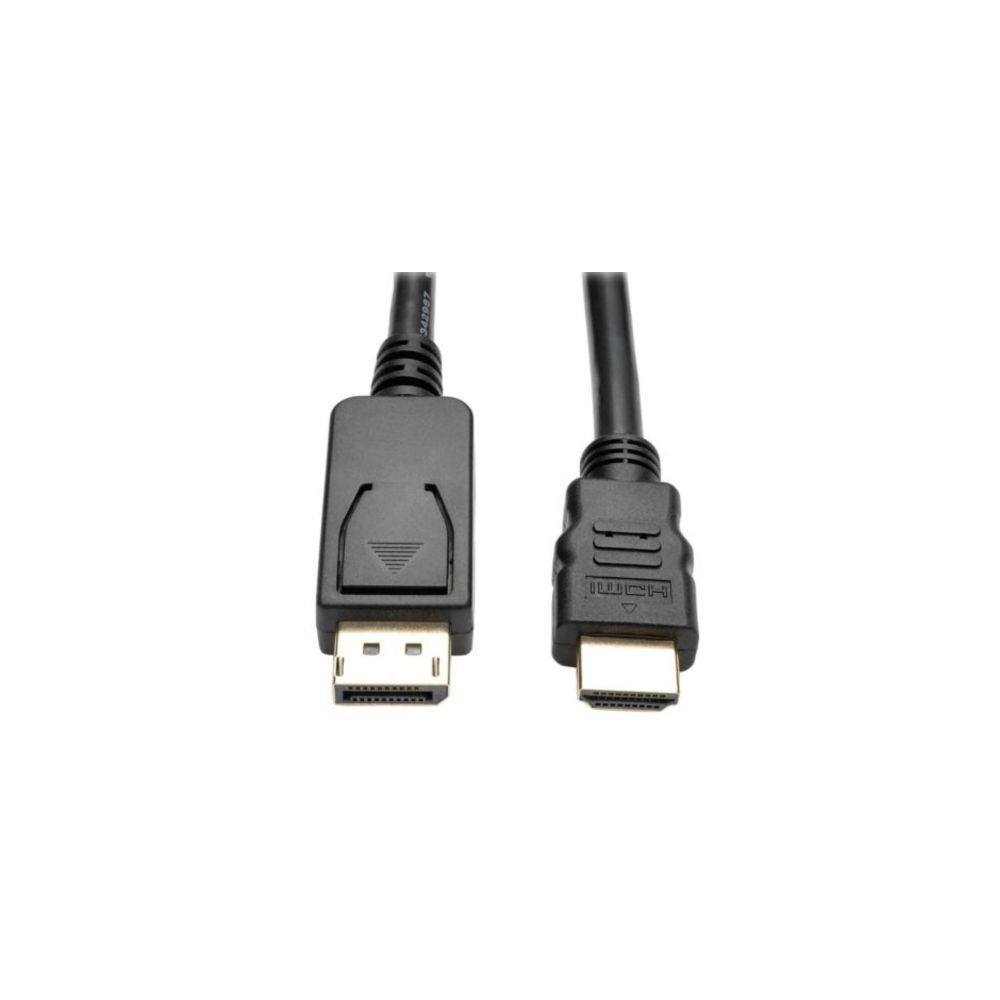

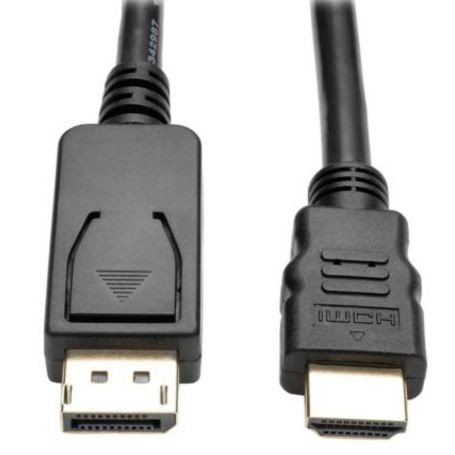

Eaton P582-006-V2-ACT Tripp Lite DisplayPort 1.2 HDMI Active Adapter Cable (DP with Latches to HDMI
Overview
The Eaton P582-006-V2-ACT is a 6-foot active DisplayPort 1.2-to-HDMI adapter cable with a latching male DisplayPort connector and male HDMI connector. It connects a DisplayPort-equipped computer or graphics card to an HDMI monitor, projector, television, or digital display.
The active conversion design supports both Single-Mode and Dual-Mode (DP++) DisplayPort outputs. It supports UHD video up to 3840 × 2160 at 24/25/30 Hz, plus audio and HDCP when supported by the source system. No separate adapter or power supply is required.
For deployment, it is suitable for workstations, digital signage, conference displays, control-room systems, and other installations requiring DisplayPort-to-HDMI connectivity. It should not be selected when the requirement is 4K at 60 Hz; Eaton's current catalog identifies other P582 models for that capability.
Key Features
- Converts DisplayPort 1.2 output to HDMI display input
- Active design supports Single-Mode and DP++ outputs
- Supports UHD resolutions up to 3840 × 2160
- Latching DisplayPort connector provides secure retention
- Gold-plated contacts support reliable signal conductivity
Specifications
| Specification | Verified Value |
|---|
| Brand | Eaton Tripp Lite |
| Part Number | P582-006-V2-ACT |
| Product Type | Active DisplayPort to HDMI Adapter Cable |
| Cable Length | 6 ft (1.83 m) |
| Input Connector | DisplayPort Male |
| Output Connector | HDMI Male |
| DisplayPort Specification | 1.2 |
| Adapter Type | Active |
| Maximum Resolution | 3840 × 2160 |
| 4K Refresh Rate | 24/25/30 Hz |
| Audio Support | Yes |
| HDCP Support | Yes |
| DisplayPort Mode | Single-Mode / Dual-Mode (DP++) |
| Connector Feature | Latching DisplayPort |
| Connector Contacts | Gold-plated |
| Cable Jacket | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Compliance | RoHS |
