Detailed Specifications

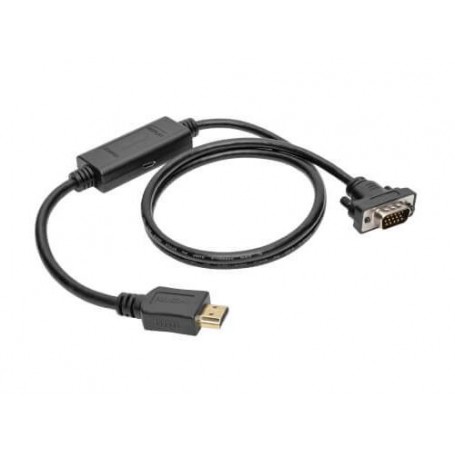

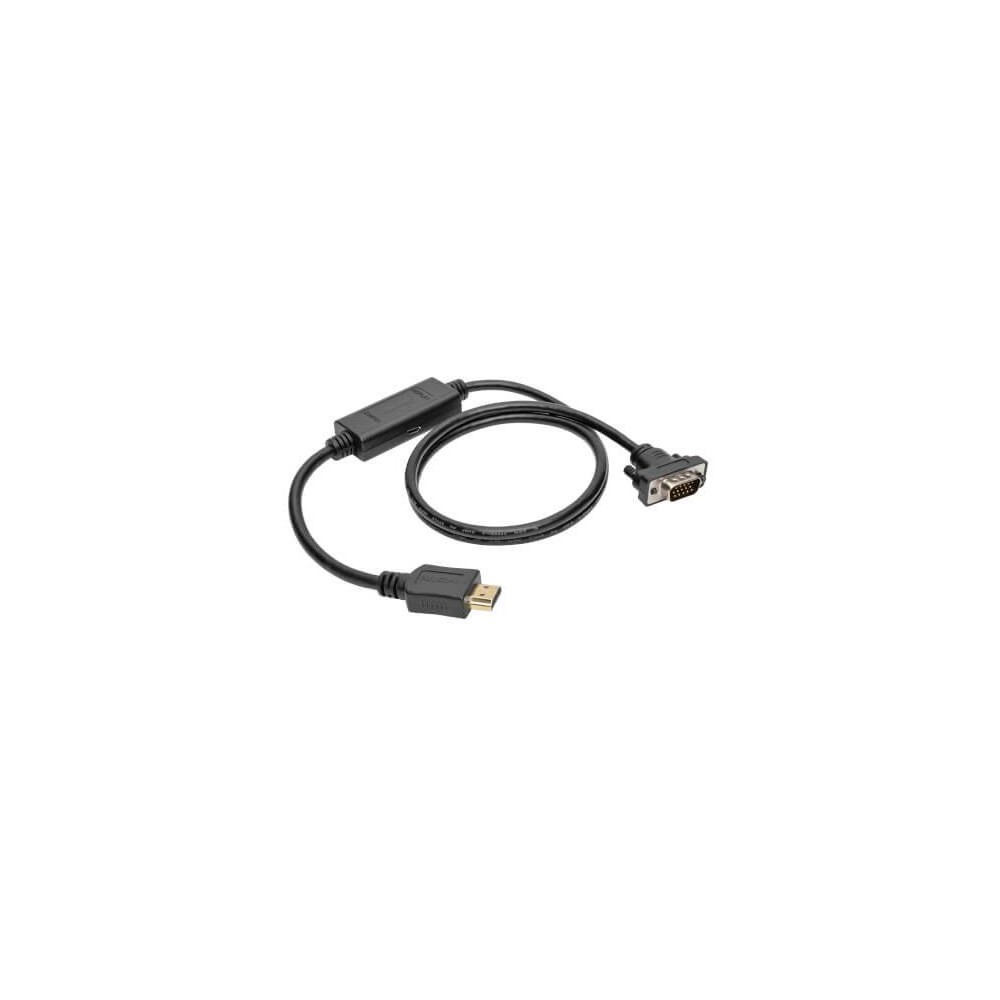

Eaton P566-003-VGA HDMI to VGA Active Adapter Cable Compatible Tripp Lite
Overview :
The Eaton P566-003-VGA is a Tripp Lite HDMI-to-VGA active converter cable designed to connect an HDMI source to a VGA display. It is suitable for computers, media sources, projectors, monitors, and digital signage where an HDMI output needs to drive an existing VGA input.
The 3 ft (0.91 m) active cable uses an HDMI male connector on one end and a low-profile HD15/VGA male connector with Micro-USB-B female power input on the other. It supports Full HD video up to 1920 × 1200 / 1080p. Additional USB power can be supplied when required by the application.
Key Features :
- HDMI male to VGA/HD15 male conversion
- Active HDMI-to-VGA converter
- 3 ft / 0.91 m cable length
- Supports up to 1920 × 1200 / 1080p
- Low-profile HD15 connector
- Micro-USB-B female port for additional power
- Double-shielded cable construction
- PVC cable jacket with VW-1 rating
- Black finish
- Gold-plated HDMI connector
- Plug-and-play operation without additional drivers
- TAA compliant
Specifications :
| Specification | Details |
|---|
| Brand | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | P566-003-VGA |
| Product Type | HDMI to VGA Active Adapter Cable |
| Cable Type | Active |
| Connector A | HDMI Male |
| Connector B | HD15/VGA Male, Low Profile |
| Additional Connector | Micro-USB-B Female |
| Cable Length | 3 ft / 0.91 m |
| Maximum Resolution | 1920 × 1200 / 1080p |
| Video Technology | HDMI / VGA / SVGA |
| Shielding | Double Shielded |
| Jacket Material | PVC |
| Jacket Rating | VW-1 |
| Color | Black |
| Connector Plating | Gold |
| TAA Compliance | Yes |
