Detailed Specifications

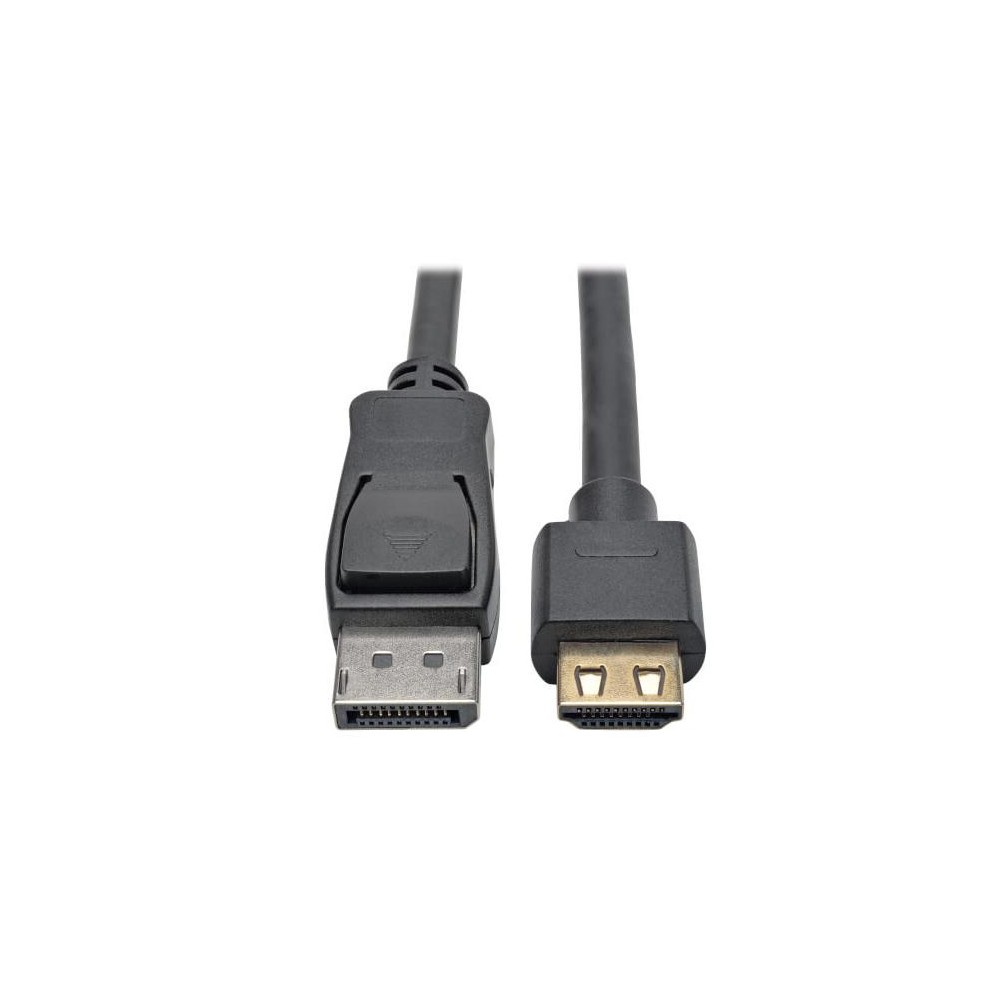

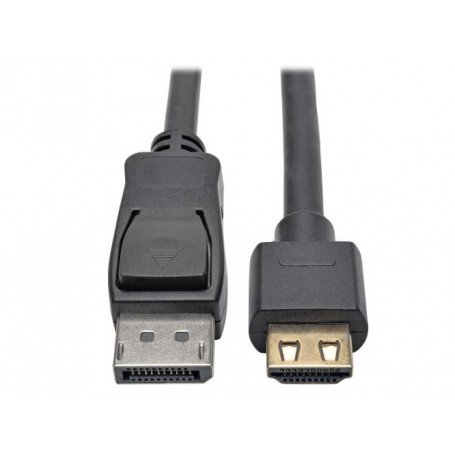

Eaton P582-020-HD-V4A DisplayPort 1.4 to HDMI Active Adapter Cable Compatible Tripp Lite
Overview :
The Eaton P582-020-HD-V4A is a TRIPP LITE by Eaton DisplayPort 1.4 to HDMI active adapter cable with male connectors on both ends. It converts a DisplayPort output to an HDMI input and is designed for computers, laptops, graphics cards, Chromebooks, digital signage players, monitors, TVs, and projectors.
The cable supports 4K UHD resolution up to 3840 × 2160 at 60 Hz with 4:4:4 chroma subsampling, along with HDR, HDCP 2.2, and Display Stream Compression (DSC). Its active design supports both single-mode and dual-mode DisplayPort outputs, including graphics cards that do not provide DP++ signaling.
Key Features :
- DisplayPort 1.4 to HDMI active adapter cable
- 20 ft (6.1 m) cable length
- DisplayPort male to HDMI male
- Supports 4K UHD at 60 Hz
- Supports 4:4:4 chroma subsampling
- HDR support
- HDCP 2.2 support
- Display Stream Compression (DSC)
- Supports digital video and audio
- Up to 8-channel LPCM audio
- Supports AC-3, DTS and HBR audio formats
- Up to 192 kHz / 24-bit audio
- Latching DisplayPort connector
- High-grip HDMI connector
Specifications :
| Specification | Details |
|---|
| Manufacturer | Eaton |
| Brand | TRIPP LITE by Eaton |
| Part Number | P582-020-HD-V4A |
| Product Type | DisplayPort to HDMI Active Adapter Cable |
| Cable Type | DisplayPort / HDMI |
| DisplayPort Version | 1.4 |
| Connector 1 | DisplayPort Male |
| Connector 2 | HDMI Male |
| Cable Length | 20 ft / 6.1 m |
| Maximum Resolution | 3840 × 2160 @ 60 Hz |
| Maximum Video Format | 4K UHD |
| Chroma Subsampling | 4:4:4 |
| HDR | Yes |
| HDCP | 2.2 |
| DSC | Yes |
| Audio Support | Digital audio |
| Maximum Audio | 8-channel LPCM, 192 kHz / 24-bit |
| Direction | DisplayPort source to HDMI display |
