Detailed Specifications

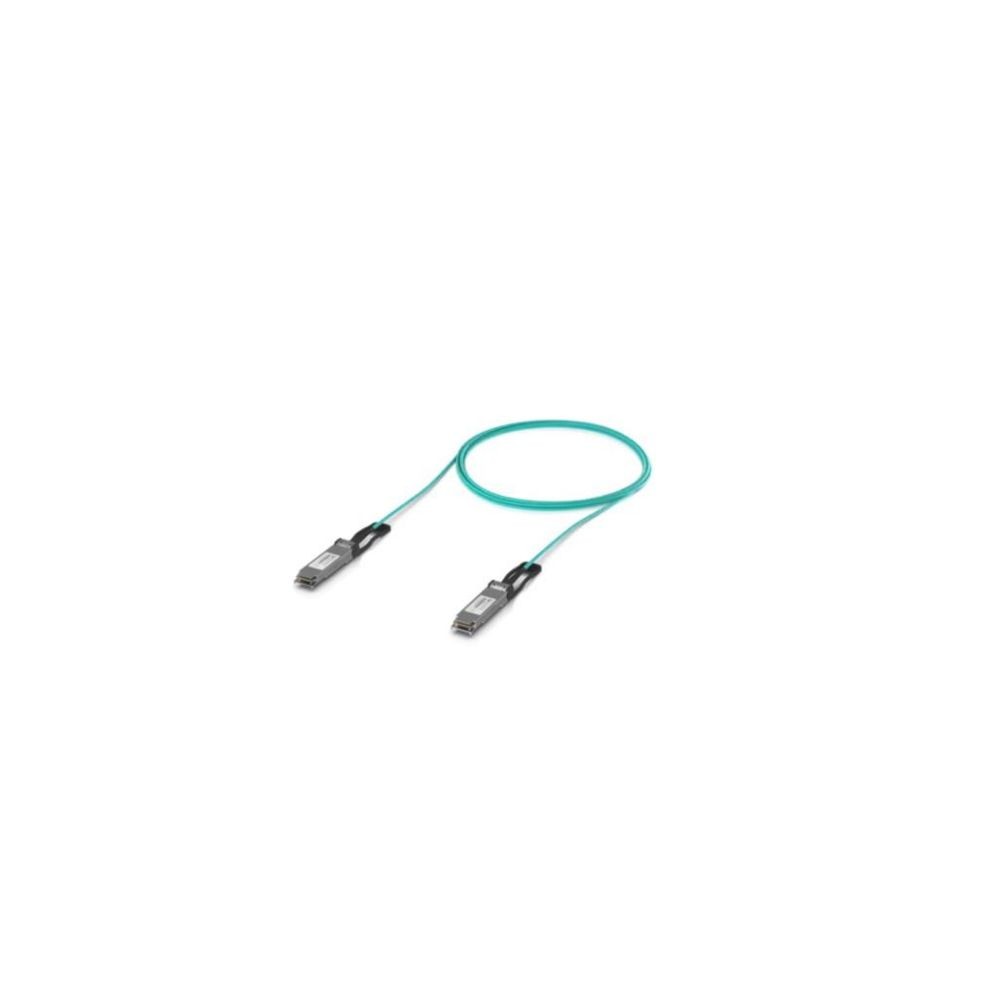

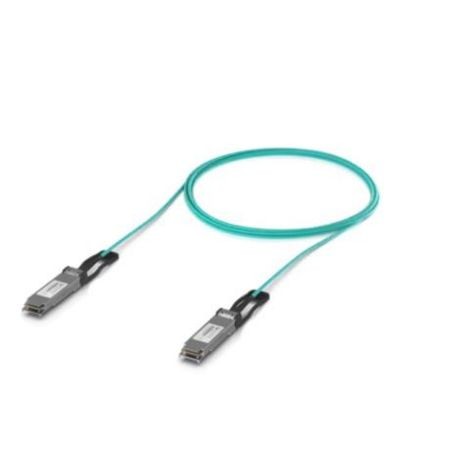

Ubiquiti UACC-AOC-QSFP28-5M 5m 100G Long-Range QSFP28 AOC
Overview
The Ubiquiti UACC-AOC-QSFP28-5M is a 5 m 100G Long-Range Direct Attach Cable using OM3 fiber and QSFP28-to-QSFP28 connectors. It is designed for high-speed optical interconnects between compatible QSFP28 and QSFP+ interfaces.
Optical Connectivity
The cable supports 100 Gbps and 40 Gbps data rates and operates at an 850 nm wavelength. The QSFP28-to-QSFP28 configuration provides a direct optical connection between compatible network interfaces.
Cable Construction
The UACC-AOC-QSFP28-5M uses a 3 mm PVC jacket with an aqua finish. The minimum bend radius is 30 mm, and the specified ambient operating temperature is 0 to 70°C (32 to 158°F).
Key Features
- 5 m OM3 active optical cable
- QSFP28-to-QSFP28 connector configuration
- Supports 100 Gbps and 40 Gbps data rates
- 850 nm optical wavelength
- 3 mm PVC jacket with 30 mm minimum bend radius
Applications
The cable is intended for high-bandwidth network interconnects between compatible QSFP28 and QSFP+ interfaces. It can be used for 100G or 40G connections where the connected equipment supports the required interface and optical specifications.
DC Supplies Product Note
Verify that both connected devices support the UACC-AOC-QSFP28-5M and the required 100G or 40G operating mode before deployment. The cable uses optical fiber rather than copper and should be routed within its specified minimum bend radius.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AOC-QSFP28-5M |
| Product Type | 100G Long-Range Direct Attach Cable |
| Cable Length | 5 m (16.4 ft) |
| Cable Standard | OM3 Fiber |
| Connector Type | QSFP28 to QSFP28 |
| Supported Data Rates | 100 / 40 Gbps |
| Wavelength | 850 nm |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Jacket Outer Diameter | 3 mm (0.12") |
| Minimum Bend Radius | 30 mm (1.18") |
| Maximum Power Consumption | 3.5 W |
| Ambient Operating Temperature | 0 to 70°C (32 to 158°F) |
Frequently Asked Questions
What is the UACC-AOC-QSFP28-5M?
It is a 5 m 100G Long-Range Direct Attach Cable using OM3 fiber and QSFP28-to-QSFP28 connectors.
What data rates does the cable support?
Ubiquiti specifies support for 100 Gbps and 40 Gbps data rates.
What interfaces does the cable use?
The cable uses QSFP28 connectors at both ends and is compatible with QSFP28 and QSFP+ interfaces.
What fiber standard does it use?
The cable uses OM3 fiber and operates at an 850 nm wavelength.
What is the cable length?
The exact UACC-AOC-QSFP28-5M model is 5 m (16.4 ft) long.
What is the minimum bend radius?
The specified minimum bend radius is 30 mm (1.18").
