Overview

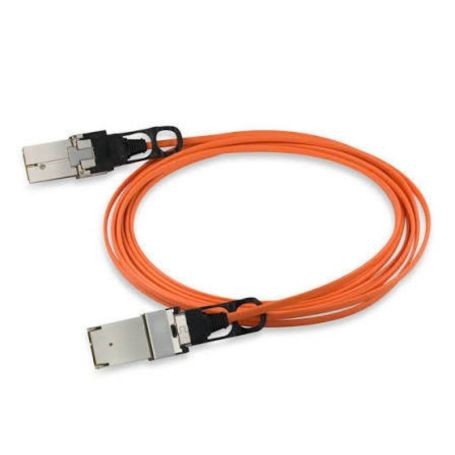

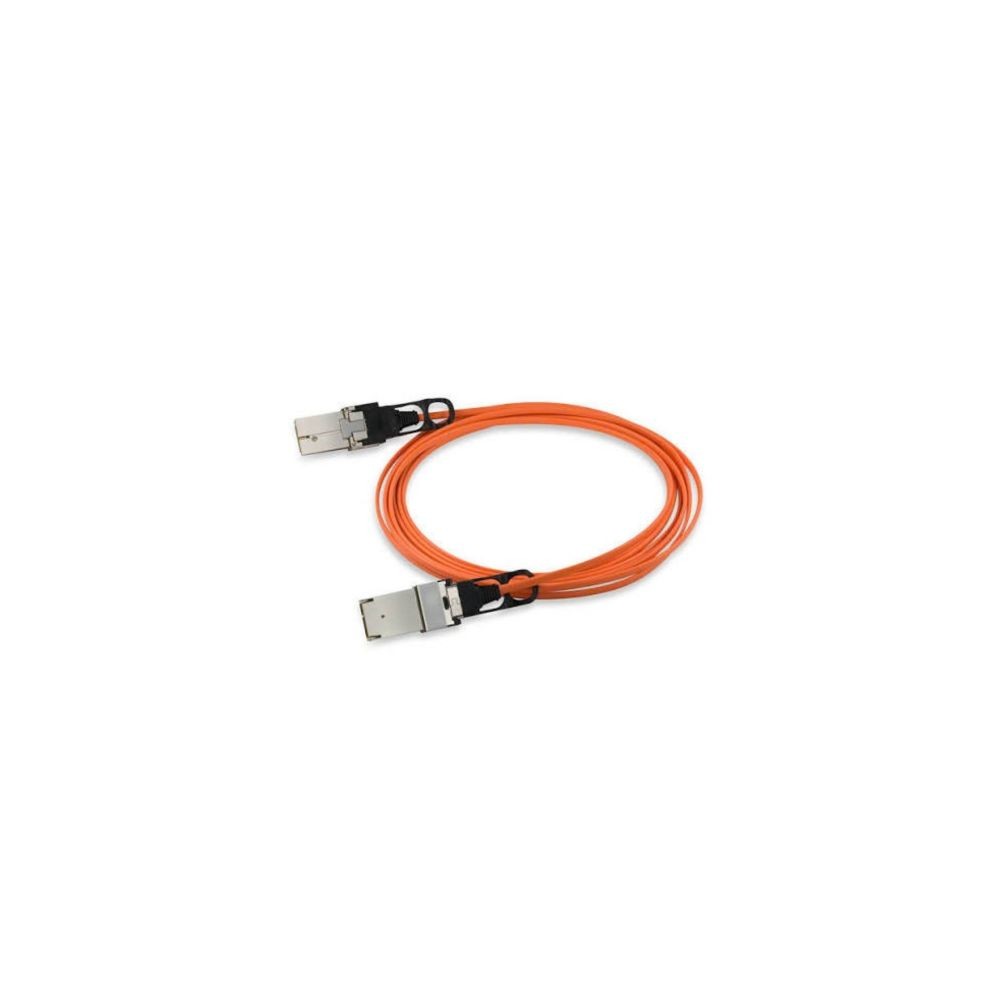

The Ubiquiti UACC-AOC-QSFP28-20M is a 20-meter UniFi 100G Long-Range Direct Attach Cable designed for high-speed network interconnection between compatible QSFP28 interfaces. It uses active optical technology with OM3 fiber and provides a QSFP28 connector at each end.
High-Speed Network Connectivity
The cable supports data rates of up to 100 Gbps and also supports 40 Gbps operation. Its QSFP28-to-QSFP28 configuration provides a factory-terminated optical connection for compatible networking equipment without requiring separate optical transceivers and a fiber patch cable.
Optical and Physical Construction
The UACC-AOC-QSFP28-20M uses OM3 fiber and an 850 nm wavelength. The cable has an aqua PVC jacket with a 3 mm outer diameter and a minimum bend radius of 30 mm, providing a relatively compact physical profile for rack and data-center cable routing.
Compatibility
The cable uses QSFP28 connectors on both ends and is specified by Ubiquiti for QSFP28 and QSFP+ interfaces. Equipment compatibility should be confirmed against the specific switch, network adapter, or other QSFP28/QSFP+ device being connected.
Key Features
- 20-meter cable length for longer network interconnects
- Supports 100 Gbps and 40 Gbps data rates
- QSFP28-to-QSFP28 connector configuration
- OM3 optical fiber with 850 nm wavelength
- 3 mm aqua PVC jacket with 30 mm minimum bend radius
Applications
The UACC-AOC-QSFP28-20M can be used for high-bandwidth interconnections between compatible networking equipment, including switch-to-switch and other QSFP28-based network links where a 20-meter optical connection is required.
DC Supplies Product Note
Because this is a QSFP28-to-QSFP28 active optical cable, both connected devices must provide compatible QSFP28 or supported QSFP+ interfaces. The 20-meter length is fixed for this MPN, so it should be selected when the installation requires the corresponding cable reach rather than the shorter 5 m, 10 m, or longer 30 m versions in the same product family.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AOC-QSFP28-20M |
| Product Type | 100G Long-Range Active Optical Cable |
| Cable Length | 20 m (65.6 ft) |
| Connector Type | QSFP28 to QSFP28 |
| Supported Data Rates | 100 / 40 Gbps |
| Cable Standard | OM3 |
| Wavelength | 850 nm |
| Cable Type | Active Optical Cable (AOC) |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Jacket Outer Diameter | 3 mm (0.12 in) |
| Minimum Bend Radius | 30 mm (1.18 in) |
| Maximum Power Consumption | 3.5W |
| Ambient Operating Temperature | 0°C to 70°C (32°F to 158°F) |
FAQs
What data rates does the UACC-AOC-QSFP28-20M support?
The cable supports 100 Gbps and 40 Gbps data rates according to Ubiquiti's specifications.
What connectors are used on the cable?
Both ends use QSFP28 connectors.
How long is the UACC-AOC-QSFP28-20M?
The exact MPN is 20 meters (65.6 feet) long.
What type of fiber does the cable use?
The cable uses OM3 optical fiber and operates at an 850 nm wavelength.
Is the cable compatible with QSFP+ equipment?
Ubiquiti specifies compatibility with QSFP28 and QSFP+ interfaces. The specific equipment should still be checked for compatibility before deployment.
What is the operating temperature range?
The specified ambient operating temperature range is 0°C to 70°C (32°F to 158°F).
