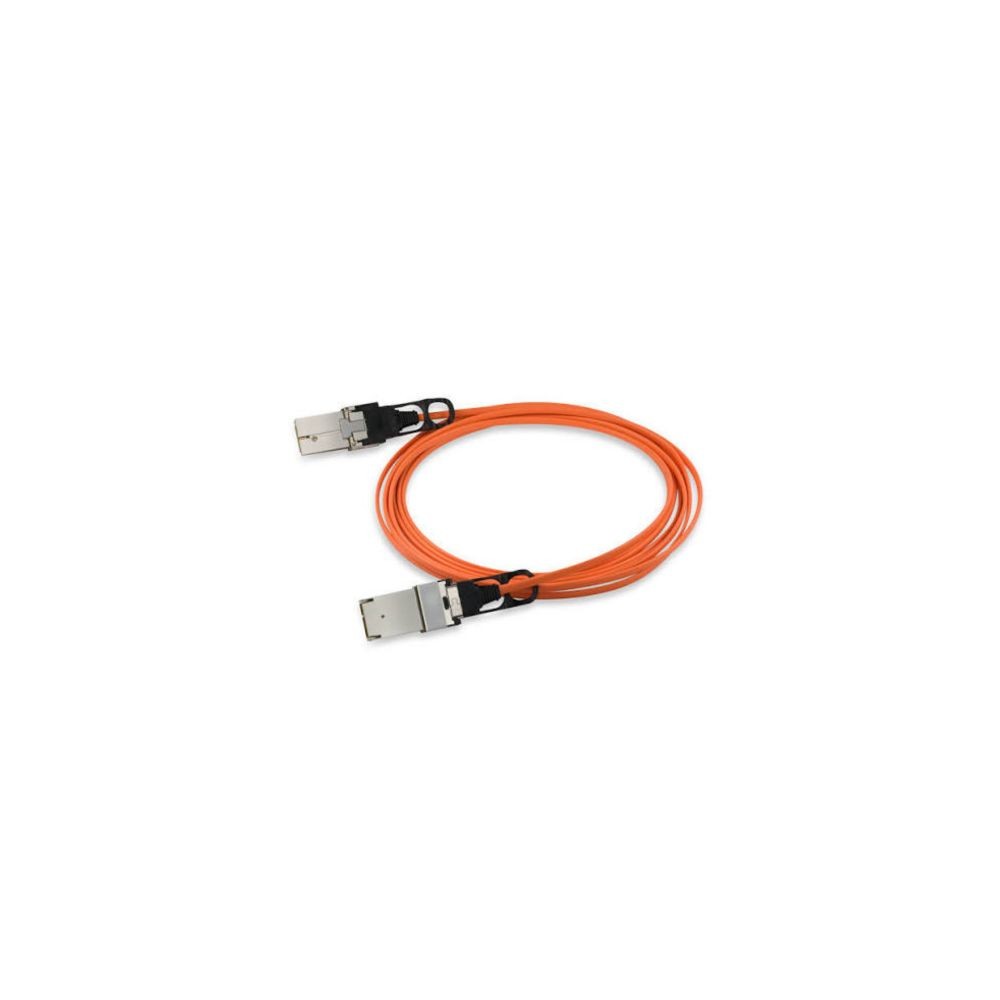

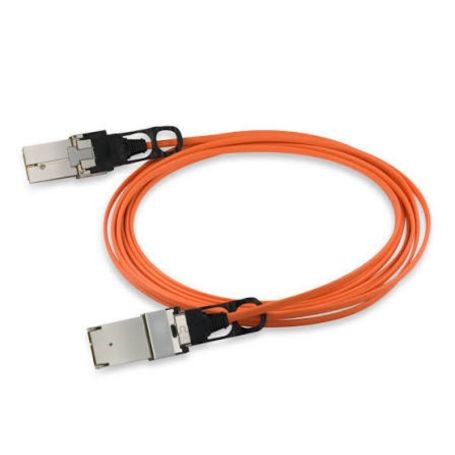

The Ubiquiti UACC-AOC-QSFP28-30M is a 30-meter 100G Long-Range Direct Attach Cable designed for high-speed network interconnects using QSFP28 interfaces. It uses active optical technology and OM3 fiber to provide up to 100 Gbps data transfer over a 30-meter link.
Technical Information
This active optical cable uses QSFP28 connectors on both ends and supports 100 Gbps and 40 Gbps data rates. The cable uses an 850 nm wavelength, has a 3 mm outer jacket diameter, and has a minimum bend radius of 30 mm.
Compatibility
The UACC-AOC-QSFP28-30M is designed for equipment with compatible QSFP28 or QSFP+ interfaces. Its supported 40/100 Gbps rates make it suitable for high-bandwidth switch, router, and network appliance interconnections where the connected equipment supports the required interface and data rate.
Key Features
- 30 m active optical cable length
- Supports 100 Gbps and 40 Gbps data rates
- QSFP28 connectors on both ends
- OM3 optical fiber with 850 nm wavelength
- 3 mm PVC jacket with 30 mm minimum bend radius
Applications
Suitable for high-speed data center interconnects, switch-to-switch links, network equipment uplinks, and other 40/100 Gbps connections using compatible QSFP28 or QSFP+ interfaces.
DC Supplies Product Note
For installation planning, allow for the cable's 30 m length and 30 mm minimum bend radius when routing the fiber between rack-mounted network devices.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AOC-QSFP28-30M |
| Product Type | 100G Long-Range Active Optical Cable |
| Cable Length | 30 m (98.4 ft) |
| Connector Type | QSFP28 to QSFP28 |
| Supported Data Rates | 100 / 40 Gbps |
| Fiber Standard | OM3 |
| Wavelength | 850 nm |
| Cable Technology | Active Optical Cable (AOC) |
| Jacket Material | PVC |
| Jacket Color | Aqua |
| Jacket Outer Diameter | 0.12 in (3 mm) |
| Minimum Bend Radius | 1.18 in (30 mm) |
| Compatible Interfaces | QSFP28 and QSFP+ |
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
| Dimensions (D × W × H) | Not specified by manufacturer |
| Weight | 0.66 lb (300 g) product weight |
FAQs
What is the maximum data rate of the UACC-AOC-QSFP28-30M?
The cable supports data rates up to 100 Gbps, with 40 Gbps also supported.
What connectors does this cable use?
It has QSFP28 connectors on both ends.
What fiber standard does this cable use?
The cable uses OM3 optical fiber with an 850 nm wavelength.
How long is the cable?
The cable is 30 meters long, equivalent to approximately 98.4 feet.
Can it be used with QSFP+ interfaces?
Yes. The published specifications identify compatibility with QSFP28 and QSFP+ interfaces, subject to the capabilities of the connected equipment.
