Detailed Specifications

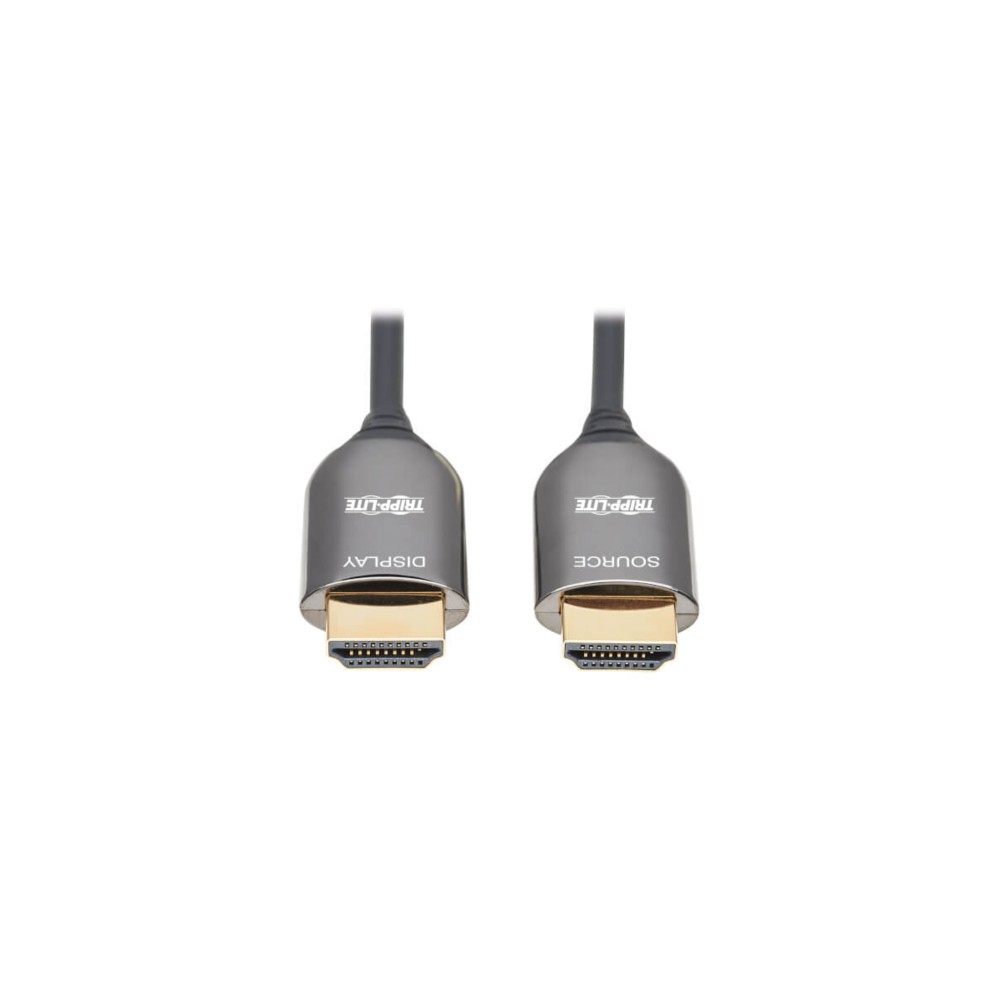

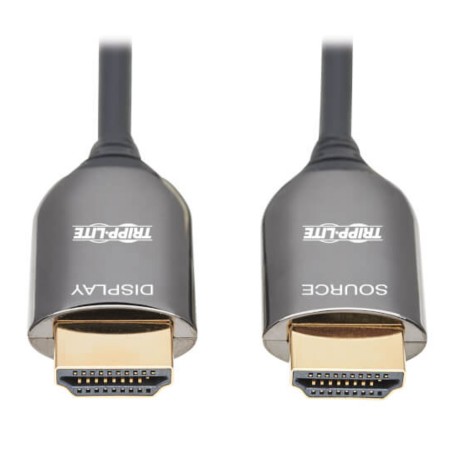

Eaton P568F-25M-8K6 8K HDMI Active Optical Cable AOC
Overview
The Eaton P568F-25M-8K6 is a 25-meter HDMI 2.1 active optical cable (AOC) designed for long-distance, high-bandwidth video transmission in enterprise AV, digital signage, control rooms, and high-end workstation deployments. It uses fiber-optic conductors to maintain signal integrity over extended runs where copper HDMI cables are not viable due to attenuation or EMI.
It supports up to 8K resolution at 60 Hz with full 4:4:4 chroma sampling, HDR, and a 48 Gbps bandwidth pipeline consistent with HDMI 2.1-class performance.
The cable is plenum-rated (CMP), making it suitable for in-ceiling, in-wall, and structured cabling installations in commercial environments.
Designed for fixed infrastructure deployments, the cable is unidirectional and powered directly from the source device, eliminating the need for external power modules. Correct orientation (Source → Display) is required during installation.
This model is intended strictly for point-to-point HDMI extension. It is not suitable for switching, matrix routing, or HDMI-to-IP conversion systems.
Key Features
- 25 m fiber-based HDMI 2.1 AOC for long-distance video transport
- Supports 8K @ 60 Hz with HDR and 4:4:4 chroma fidelity
- 48 Gbps bandwidth for high-end AV and workstation output
- Plenum-rated jacket for in-wall and ceiling installations
- EMI/RFI immunity via optical signal transmission
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number | P568F-25M-8K6 |
| Product Type | HDMI Active Optical Cable (AOC) |
| Connector Type | HDMI Male to HDMI Male |
| HDMI Standard | HDMI 2.1 |
| Maximum Resolution | 7680 × 4320 (8K) @ 60 Hz |
| Bandwidth | 48 Gbps |
| Cable Length | 25 m (82 ft) |
| Signal Type | Unidirectional |
| HDR Support | Yes |
| Chroma Subsampling | 4:4:4 |
| Jacket Rating | CMP (Plenum) |
| EMI Protection | Yes (fiber isolation) |
| Installation Type | In-wall / conduit / enterprise AV |
| Power Method | Source-powered AOC |
