Overview

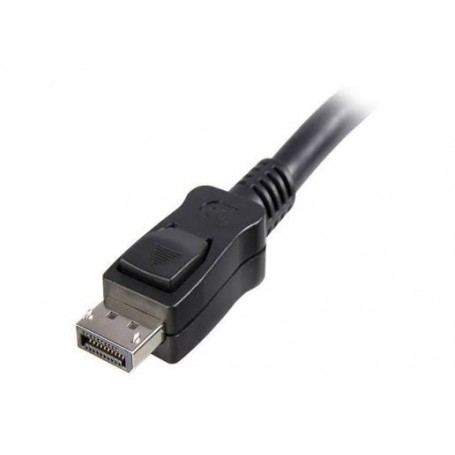

The StarTech DISPLPORT1L is a 1ft (30cm) DisplayPort 1.2 male-to-male cable designed for connecting DisplayPort-equipped computers, workstations, graphics cards, monitors, projectors, and other compatible displays. Its short length helps reduce cable clutter in compact workstation, desktop, and mobile setups.
DisplayPort Performance
The cable supports DisplayPort 1.2 signaling with up to 21.6Gbps HBR2 bandwidth and resolutions up to 4096 × 2160 at 60Hz. It also supports Multi-Stream Transport (MST) for compatible multi-monitor configurations and digital audio transmission.
Connector and Cable Design

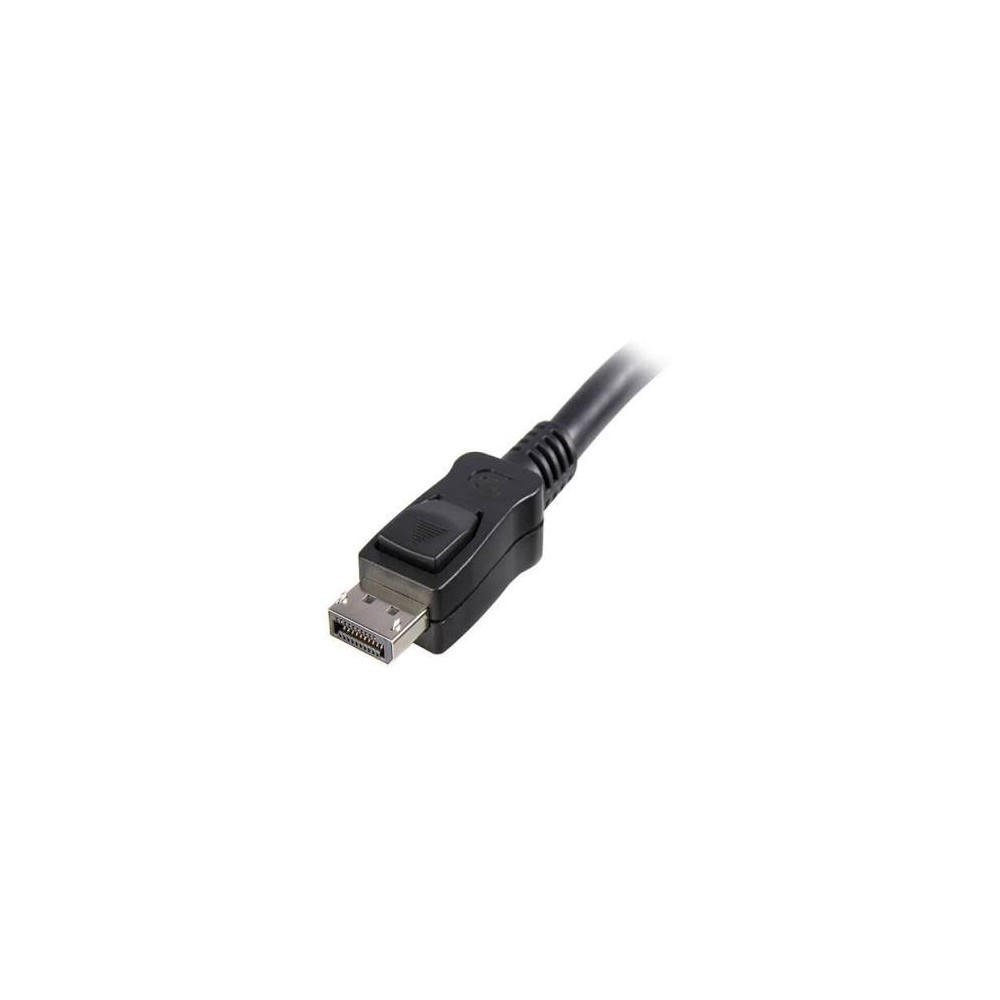

Both ends use latching DisplayPort connectors to help prevent accidental disconnection. The cable uses 28 AWG copper conductors, a PVC jacket, and shielding consisting of aluminum-Mylar foil with copper braid. Gold-plated connector contacts and EMI shielding are specified for the cable design.
Compatibility
The DISPLPORT1L connects DisplayPort sources to DisplayPort displays and is suitable for compatible PCs, notebooks, workstations, graphics cards, monitors, and projectors. It is backwards compatible with DisplayPort 1.1.
Key Features
- 1ft (30cm) DisplayPort 1.2 male-to-male cable
- Supports resolutions up to 4096 × 2160 at 60Hz
- Up to 21.6Gbps HBR2 bandwidth
- Latching DisplayPort connectors for a secure connection
- Supports MST, HDCP, DPCP, and digital audio
Applications
- Connecting DisplayPort monitors to desktop computers and workstations
- Short internal or desktop DisplayPort connections
- Connecting notebooks to DisplayPort displays
- Professional workstation and graphics-card installations
- Compatible multi-monitor setups using DisplayPort MST
DC Supplies Product Note
The 1ft length is particularly useful when the source and display are positioned close together, helping minimize excess cable length and cable management clutter.
Specifications
| Specification | Details |
|---|
| Brand | StarTech |
| Part Number / MPN | DISPLPORT1L |
| Product Type | DisplayPort Cable |
| DisplayPort Version | 1.2 |
| Cable Length | 1 ft (30.5 cm) |
| Connector 1 | DisplayPort Male |
| Connector 2 | DisplayPort Male |
| Maximum Bandwidth | 21.6 Gbps |
| Signal Standard | HBR2 |
| Maximum Resolution | 4096 × 2160 at 60Hz |
| Multi-Stream Transport | Yes |
| Audio Support | Yes, up to 8 channels |
| Wire Gauge | 28 AWG |
| Conductors | 19 |
| Connector Plating | Nickel |
| Cable Jacket | PVC |
| Shielding | Al-Mylar foil with copper braid |
| Color | Black |
| Fire Rating | CM/CMG |
| HDCP | Supported |
| DPCP | Supported |
| Warranty | Lifetime |
Frequently Asked Questions
What is the StarTech DISPLPORT1L?
It is a 1ft DisplayPort 1.2 male-to-male cable for connecting compatible DisplayPort video sources and displays.
What resolution does the DISPLPORT1L support?
The cable supports resolutions up to 4096 × 2160 at 60Hz with HBR2 bandwidth up to 21.6Gbps.
Does the cable support DisplayPort MST?
Yes. The DISPLPORT1L supports Multi-Stream Transport for compatible DisplayPort daisy-chain configurations.
Do the connectors lock in place?
Yes. Both DisplayPort connectors feature latching mechanisms designed to help prevent accidental cable disconnection.
