Detailed Specifications
Overview

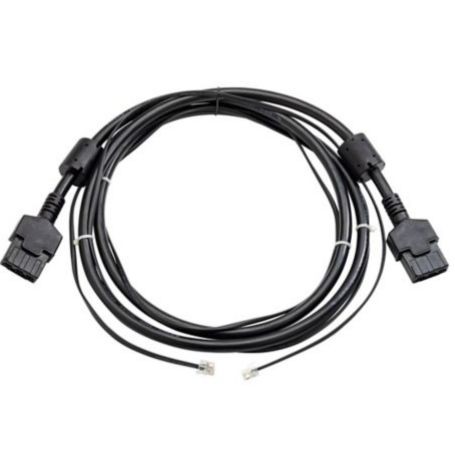

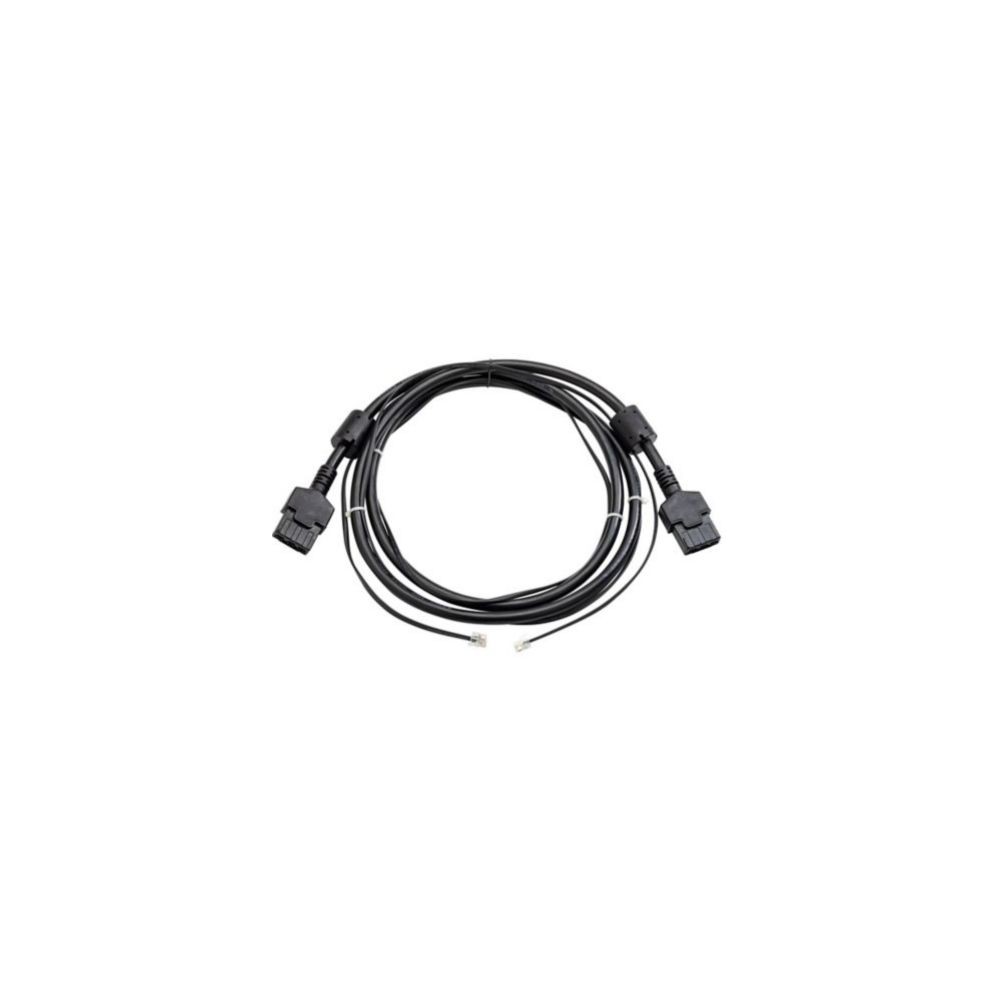

The Eaton EBMCBL48 is a 2-meter cable set designed for connecting compatible 48V extended battery modules (EBMs) with supported Eaton UPS systems. It is an accessory for Eaton 9PX and 9SX UPS configurations that use the specified 48V EBM connections.
Compatibility
Eaton specifies the EBMCBL48 for use with the 9PXEBM48RT and 9SXEBM48 extended battery modules. It is intended for compatible Eaton UPS and EBM configurations requiring the 48V EBM cable connection.
Cable Configuration
The EBMCBL48 provides a 2-meter connection length and is finished in black and silver. Eaton identifies it as an EBM cable set rather than a rack-mounting accessory.
Key Features
- Designed for 48V extended battery module connections
- 2-meter cable length
- Compatible with specified Eaton 9PX and 9SX battery modules
- Black and silver cable assembly
- Designed as an Eaton UPS accessory
Applications
- Eaton UPS extended battery module installations
- 9PX UPS systems using compatible 48V EBMs
- 9SX UPS systems using the specified 48V EBM
- UPS battery-extension configurations requiring the Eaton EBMCBL48 cable
DC Supplies Product Note
The EBMCBL48 is a model-specific EBM connection cable. Confirm the UPS and extended battery module model before ordering, because Eaton specifies this cable for particular 48V EBM configurations rather than as a universal UPS battery cable.
Specifications
| Specification | Details |
|---|
| Brand | Eaton |
| Part Number / MPN | EBMCBL48 |
| Product Type | EBM Cable Set |
| Accessory Type | Cable Set |
| Application | Extended Battery Module Connection |
| Voltage Rating | 48V DC |
| Cable Length | 2 m (6.56 ft) |
| Color | Black / Silver |
| Compatible EBM | 9PXEBM48RT, 9SXEBM48 |
| Compatible UPS Family | Eaton 9PX / 9SX |
| Rack Mounting Kit | No |
| Product Weight | 0.77 lb |
| UPC | 743172081681 |
FAQs
What is the Eaton EBMCBL48 used for?
It is used to connect compatible 48V extended battery modules to supported Eaton UPS systems.
How long is the EBMCBL48 cable?
The cable is 2 meters long, approximately 6.56 feet.
Which battery modules are compatible?
Eaton specifies compatibility with the 9PXEBM48RT and 9SXEBM48 extended battery modules.
What voltage is the EBMCBL48 designed for?
The cable is specified for 48V DC extended battery module connections.
Is the EBMCBL48 a rack-mounting accessory?
No. Eaton identifies it as a cable set and specifies that it does not include a rack mounting kit.
Is this a universal UPS battery cable?
No. It should be used with the Eaton UPS and EBM configurations specified for the EBMCBL48.
