Eaton EBMCBL180 Extended Battery Module Cable Assembly
Overview :

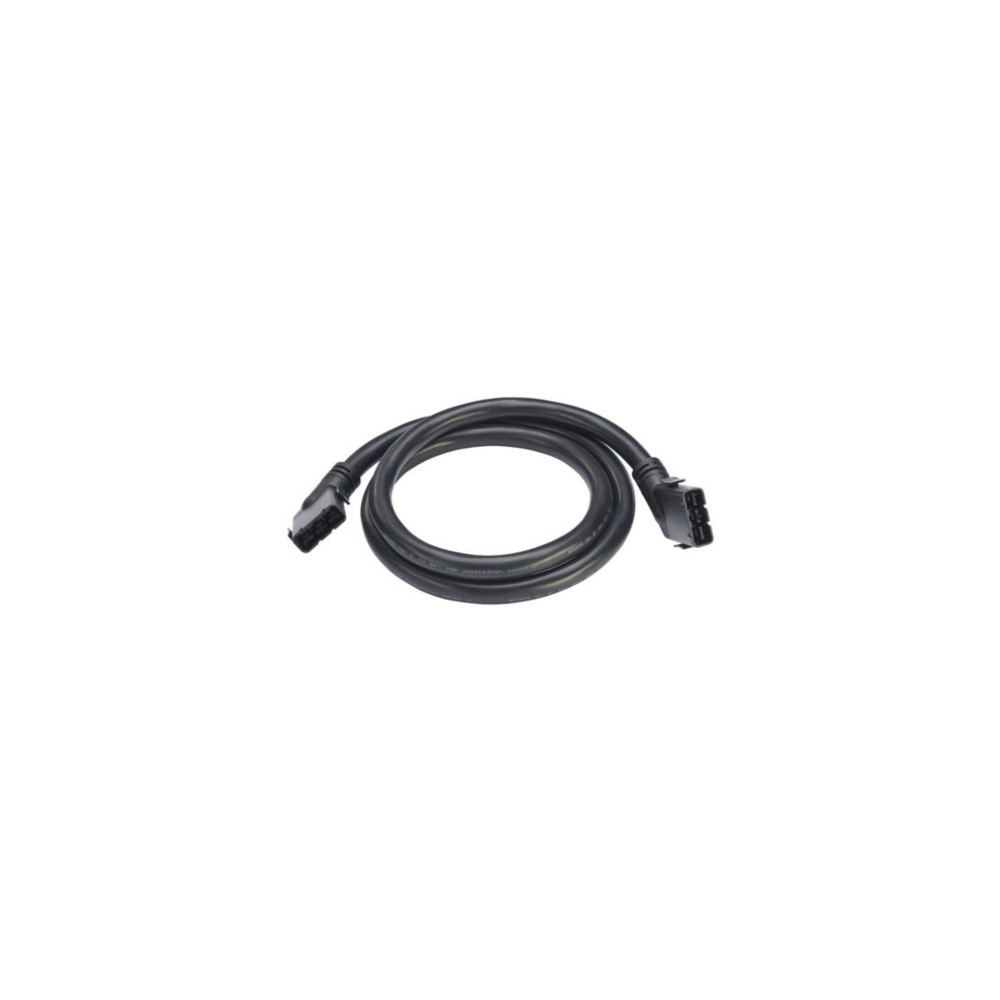

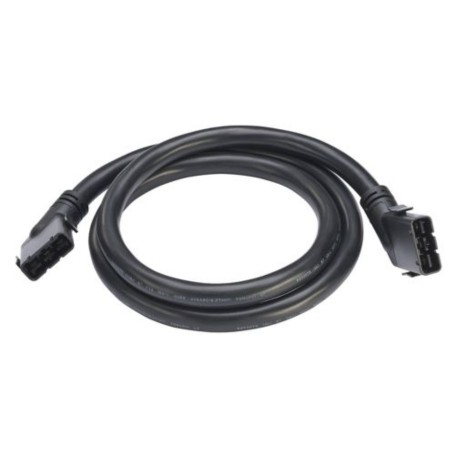

The Eaton EBMCBL180 is a heavy-duty DC power cable assembly engineered for data center engineers and industrial power facilities teams. It functions as a dedicated external electrical link to connect compatible uninterruptible power supply (UPS) mainframes with external battery cabinets. By facilitating secure, high-current DC transmission, this specialized cable allows facilities to scale out aggregate battery backup storage and extend backup runtimes for underlying computing infrastructures.
Built to withstand continuous high-voltage loads, this heavy-gauge cable assembly safely handles a nominal 180 V DC electrical bus distribution configuration without inducing thermal stress or voltage drops. The line spans an operational length of 5.91 feet (1.8 meters), giving engineers the physical slack required to route connections neatly through vertical cable organizers inside server racks or between adjacent equipment enclosures. It features heavy-duty, keyed polar connectors at both termination points to eliminate the risk of reverse-polarity installation faults during live field deployments.
This power accessory is explicitly built for integration with Eaton 9PX series power management hardware, linking directly to the Eaton 9PXEBM180RT extended battery modules alongside compatible 5 kVA and 6 kVA online double-conversion UPS frameworks. It is hot-swappable, allowing infrastructure teams to latch additional battery modules onto a live UPS without dropping the utility load or causing system disruption. It should NOT be deployed with lower-voltage 48V, 72V, or 96V battery architectures, nor should it be utilized with non-Eaton power management systems that require different terminal layouts.
Key Features :
Heavy-gauge conductors safely handle high-current 180 V DC bus lines.
5.91-foot (1.8m) cable length permits flexible cross-rack wiring paths.
Keyed polarization connectors protect against dangerous reverse-polarity errors.
Hot-swappable installation allows safe capacity expansion on live setups.
Industrial-grade insulation jacket withstands high-temperature rack environments.
Specifications :
| Attribute | Verified Value |
| Brand | Eaton |
| Part Number | EBMCBL180 |
| Product Type | Extended Battery Module Cable |
| Cable Type | DC Battery Extension Assembly |
| Voltage Rating | 180 V DC |
| Cable Length | 5.91 ft (1.8 m) |
| Color | Black / Silver |
| Compatible Battery Module | Eaton 9PXEBM180RT |
| Compatible UPS Series | Eaton 9PX Series (5 kVA / 6 kVA) |
| Mounting Type | Non-rackmount (Cable trailing) |
| Operating Temperature | 0°C to 40°C |
| Compliance Standards | RoHS Compliant |
| Factory Warranty | 2-Year Limited |
