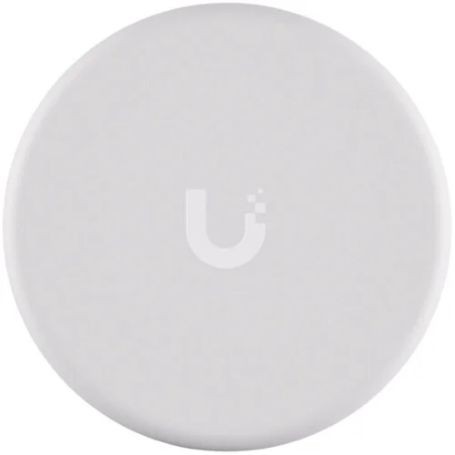

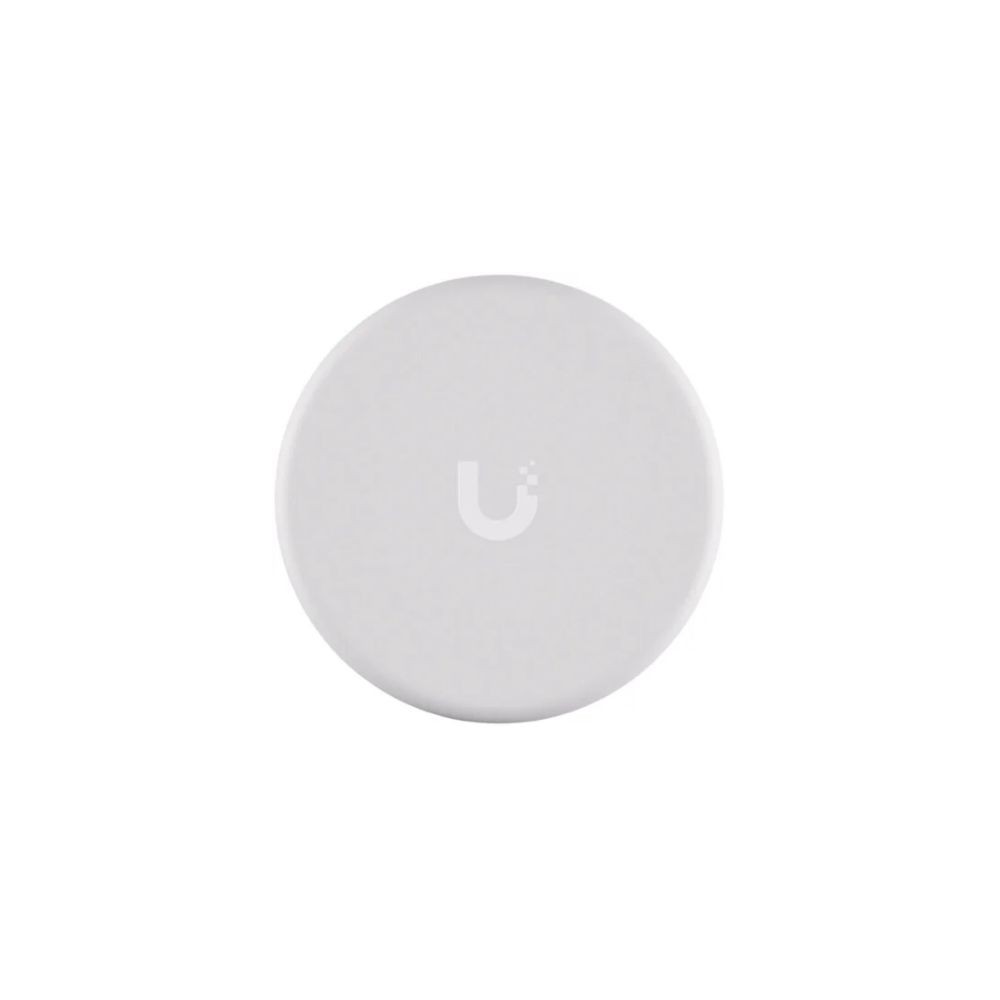

Ubiquiti UA-Rescue UniFi Access Rescue KeySwitch
Overview
The Ubiquiti UA-Rescue, also known as the Access Rescue KeySwitch, is a manual emergency override device for UniFi Access systems. It provides a physical keyed method of unlocking a door when an Access Hub or connected lock system experiences a malfunction.
The KeySwitch is designed as a single-pole, double-throw manual switch and can be used with compatible fail-safe and fail-secure lock systems. Ubiquiti specifies that the device provides backup entry but does not provide redundant power for fail-secure systems.
Emergency Override
The UA-Rescue provides a dedicated manual unlock mechanism using a physical key. In an emergency or system malfunction scenario, the key-operated switch can provide an alternative means of controlling the connected door-lock circuit.
Connections
The unit provides COM, NO, and NC terminals supporting 18–24 AWG wiring. The internal key switch uses a brass internal wave key and is rated at 28V DC and 4A.
Installation
The UA-Rescue has a compact round form factor measuring 60 mm in diameter by 74 mm deep. Its polycarbonate enclosure is suitable for installation as part of a UniFi Access door-control system. Wiring should follow the applicable UniFi Access installation documentation and the requirements of the connected lock system.
Key Features
- Keyed emergency override for UniFi Access systems
- Manual unlock capability during Access system malfunctions
- COM, NO, and NC terminals for switching connections
- Brass internal wave key rated for 28V DC and 4A
- Two physical keys included
Applications
- Emergency override for UniFi Access door systems
- Backup entry for compatible fail-safe lock installations
- Manual access control during Access Hub malfunctions
- Door access installations requiring a physical keyed override
DC Supplies Product Note
The UA-Rescue is an emergency switching device rather than a backup power source. When used with fail-secure locks, the KeySwitch does not provide redundant power; the connected lock and Access Hub configuration must be designed accordingly.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UA-Rescue |
| Product Type | Access Rescue KeySwitch |
| Product Family | UniFi Access |
| Function | Keyed emergency override |
| Switch Type | Single-pole, double-throw manual KeySwitch |
| Key Switch | Brass internal wave key |
| Key Switch Rating | 28V DC, 4A |
| Terminal Block | COM / NO / NC |
| Supported Wire Gauge | 18–24 AWG |
| Enclosure Material | Polycarbonate |
| Dimensions | Ø60 × 74 mm |
| Weight | 94 g |
| Operating Temperature | -30°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5–95% non-condensing |
| Physical Keys | 2 included |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti UA-Rescue?
The UA-Rescue is a UniFi Access Rescue KeySwitch that provides a physical keyed emergency override for compatible door access systems.
What happens if the UniFi Access Hub malfunctions?
The UA-Rescue provides a manual keyed override that can be used to control the connected door-lock circuit when the Access system requires an emergency or backup access method.
Can the UA-Rescue be used with fail-safe and fail-secure locks?
Ubiquiti documents the KeySwitch as compatible with both fail-safe and fail-secure lock systems. However, it does not provide redundant power for fail-secure systems.
What wiring terminals are available?
The KeySwitch provides COM, NO, and NC terminals and supports 18–24 AWG wiring.
How many keys are included?
Ubiquiti specifies that two physical keys are included with the Access Rescue KeySwitch.
What are the dimensions of the UA-Rescue?
The UA-Rescue measures approximately 60 mm in diameter and 74 mm in depth.
