Ubiquiti UA-BUTTON Access Push Button View larger

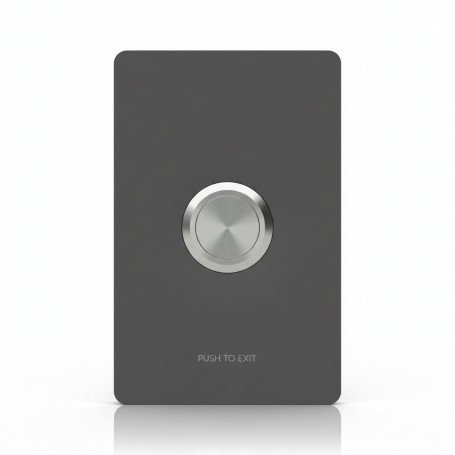

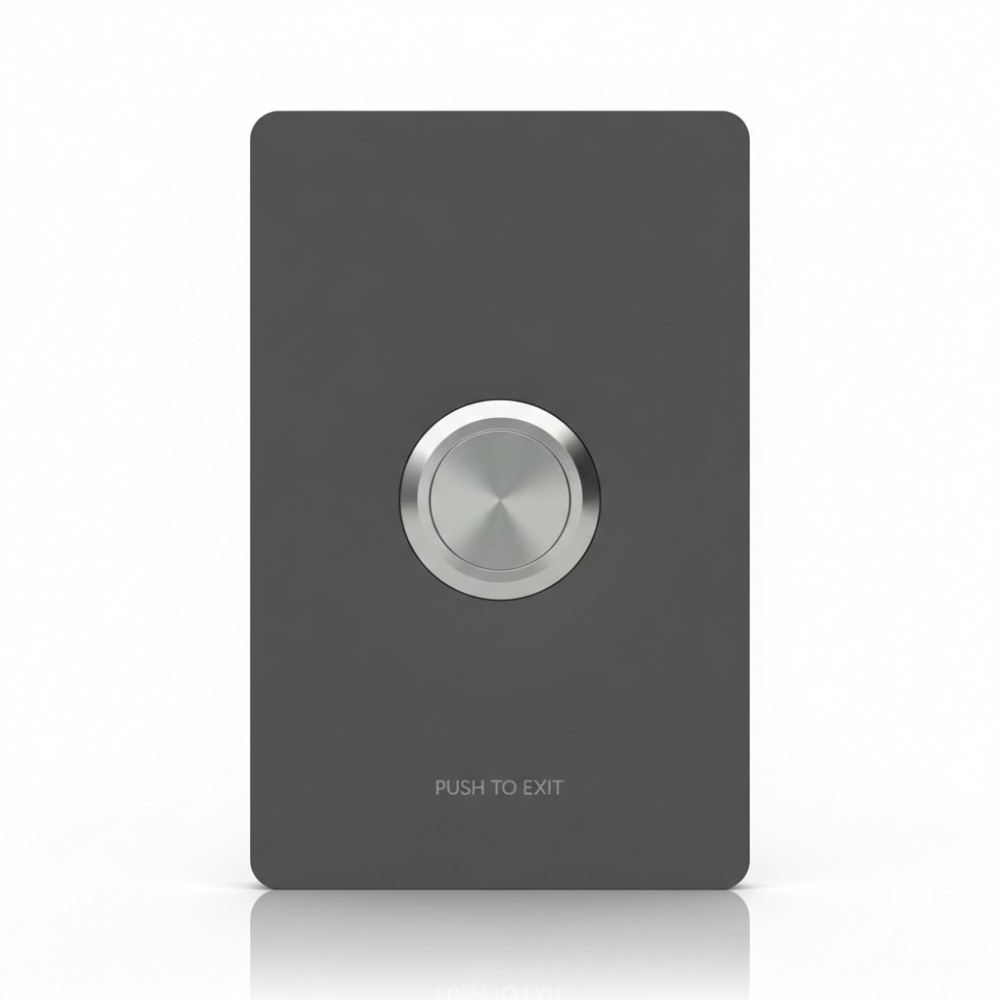

Ubiquiti UA-BUTTON Access Push Button

UA-BUTTON

New

Push‑to‑Exit Access Button
×




Detailed Specifications

Ubiquiti UA-BUTTON Access Push Button

Overview :

The UA‑Button is a push‑to‑exit control button for UniFi Access security systems, used by integrators and technicians to provide a simple egress trigger on secured doors. It features a normally‑open contact rated for 30 V DC at 2 A with a mechanical life of up to 1 000 000 actuations. The compact module fits indoor access control deployments in offices, commercial buildings, and enterprise environments. It installs with UniFi Access Hubs and operates reliably within typical indoor temperature and humidity ranges.

Key Features :

  • Push‑to‑exit button for UniFi Access

  • Normal open contact, 30 V DC / 2 A

  • Durable design, 1 000 000 presses

  • Interchangeable black/white plates

Technical Specifications

SpecificationValue
Brand Ubiquiti
Part Number UA‑Button
Product Type Push‑to‑Exit Access Button
Dimensions 137 × 88 × 38.1 mm
Weight 180 g
Enclosure Material Polycarbonate
Mounting Material Metal
Contact Type Normally open (NO)
Contact Rating 30 V DC, 2 A
Mechanical Life 1 000 000 presses
Operating Temperature ‑10 °C to 40 °C
Storage Temperature ‑40 °C to 70 °C
Operating Humidity 5 %–90 % non‑condensing
Environment Indoor only
Certifications CE, UL 294, CAN/ULC‑60839‑11‑1
