Detailed Specifications

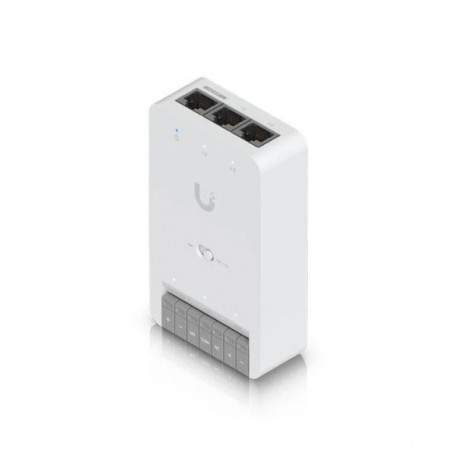

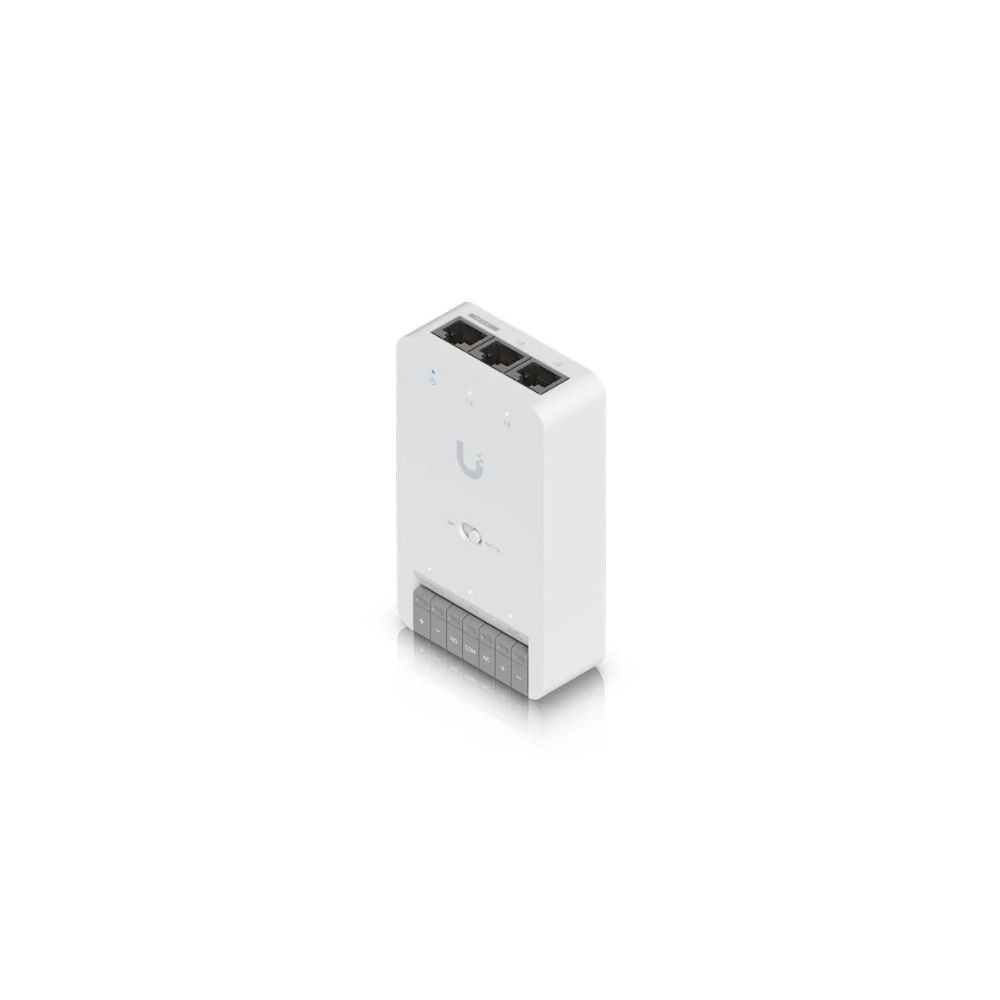

Ubiquiti UA-HUB-DOOR-MINI UniFi Access Door Hub Mini
Overview
The Ubiquiti UA-HUB-DOOR-MINI is a compact access control hub for UniFi Access systems, designed to control a single door with integral PoE++ power and multiple outputs for locks and sensors. It provides Gigabit Ethernet connectivity and four PoE outputs to power readers and peripherals, simplifying cabling in small offices, retail spaces, or branch deployments. The hub integrates with UniFi Access software for centralized policy, credential management, and event logging. Its DIN-rail or surface mount design enables straightforward installation in electrical closets or behind access panels.
Key Features
• PoE++ powered mini access hub
• Four PoE outputs for peripherals
• Multiple sensor & relay inputs
• DIN-rail and surface mountable
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | UA-HUB-DOOR-MINI |
| Product Type | Access Control Hub Mini |
| Networking | (3) 10/100/1000 Base-T |
| Power Method | PoE++ (802.3bt) |
| Max Power Consumption | 45 W |
| PoE Outputs | (4) PoE, 50 V DC, total ~28 W |
| Digital Inputs | Request to exit, door position, remote release |
| Dry Contact Relays | Lock: 30 V DC, 1 A |
| Powered Relays | Lock: 12 V DC, 1 A |
| Reset Button | Factory reset |
| LEDs | Status indicators |
| Mounting | DIN-rail or surface |
| Dimensions | 112 × 66 × 27 mm |
| Weight | 185 g |
