Detailed Specifications

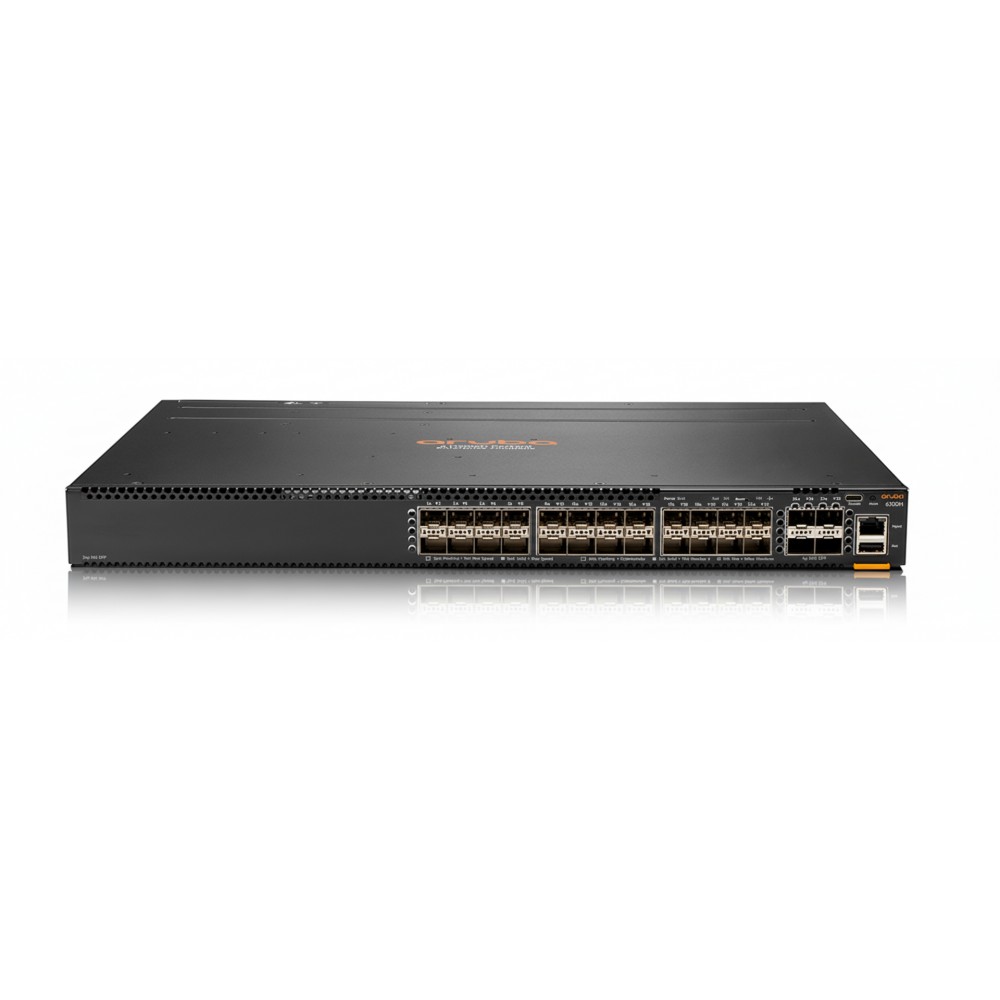

HPE JL658A - 24-Port SFP+ / 4-Port SFP56 Switch
Overview :
The HPE JL658A is a fixed-port layer-3 switch built for enterprise access or aggregation environments, used by network engineers for high-density fibre connections where RJ-45 copper is not preferred. It features 24 SFP+ ports (1/10 Gb) and 4 SFP56 ports supporting 1/10/25/50 Gb for uplinks or stacking, giving design flexibility for future proofing. With switching capacity of 880 Gbps and throughput of 654 Mpps, this unit fits into campus core, data centre top-of-rack (TOR) or aggregation layers. It integrates into the Aruba CX software ecosystem, supporting stack-and-manage features and fits into a 1U rack-mount profile with modular PSUs.
Key Features :
24× 1/10 Gb SFP+ fixed ports
4× 1/10/25/50 Gb SFP56 uplink/stack ports
Switching capacity of 880 Gbps system-wide
Throughput rated at 654 million packets per second
Supports stacking up to 10 units per VSF fabric
Specification :
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JL658A |
| Product Type | 24-port SFP+ & 4-port SFP56 switch |
| Switching Capacity | 880 Gbps |
| Throughput | 654 Mpps |
| Port Configuration | 24×1G/10G SFP+ + 4×1/10/25/50G SFP56 |
| Dimensions (Imperial) | 1.73 in (H) × 17.4 in (W) × 15.2 in (D) |
| Weight | 11.26 lbs |
| Input Voltage | 100-240 VAC |
| Latency (10 Gbps) | ~1.49 µs |
| Memory | 8 GB DDR4, 32 GB eMMC |
| Stacking Capability | Up to 10 units |
| Console Ports | 1×USB-C console, 1×OOBM port, 1×USB Type A |
| Mounting | 1U rack-mountable |
| Warranty | Limited lifetime warranty |
