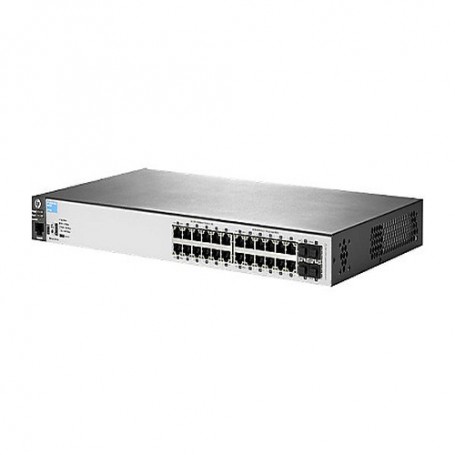

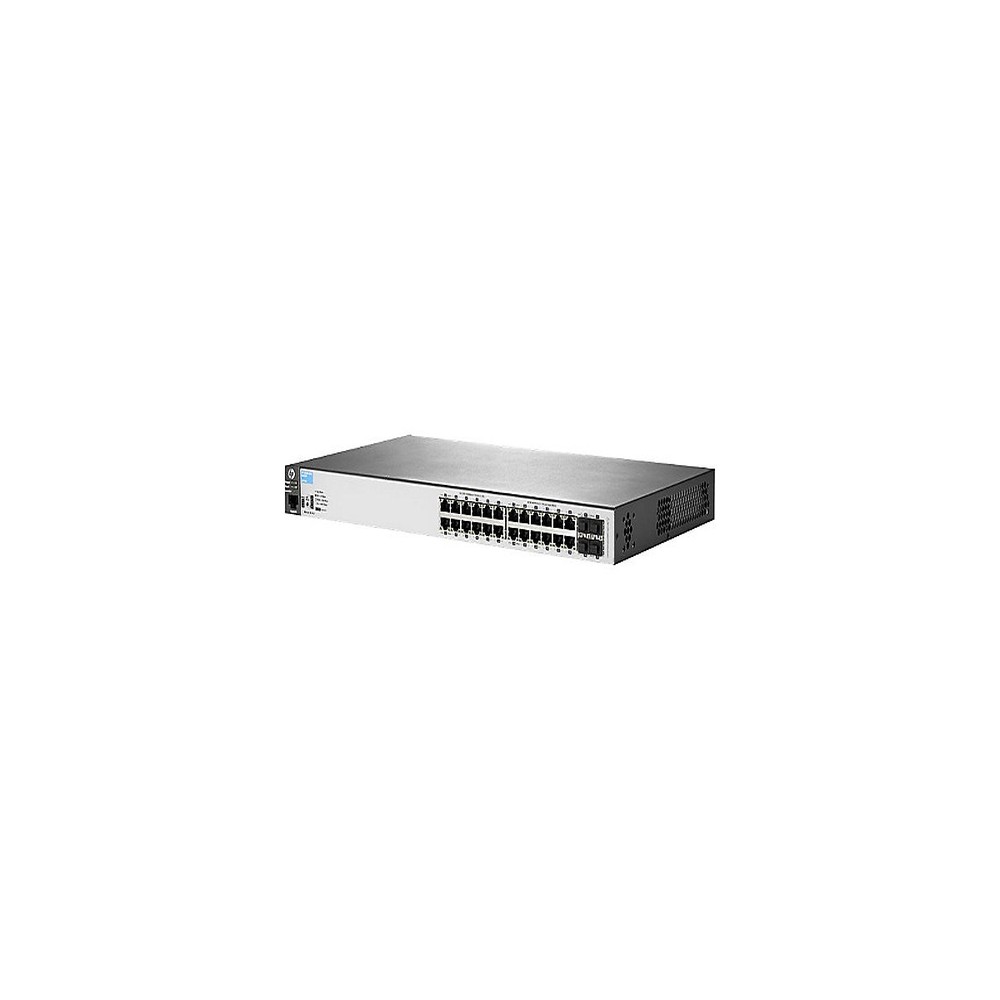

HPE J9776A Aruba 2530 24G 1U non PoE Managed Switch View larger

HPE Aruba J9776A 2530 24G 1U Non-PoE Managed Switch

J9776A

Refurbished

HPE Aruba 2530 24G, 1U rack-mountable, 24 Gigabit ports, no PoE

×




Detailed Specifications

HPE Aruba J9776A Ethernet Switch

Overview :

Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy v Efficient Ethernet. The Aruba J9776A 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager, Airwave and cloud-based Central.

Key Features:

  • Device Type: Switch - 24 Ports - Managed.
  • Enclosure Type: Desktop, Rack-mountable, Wall-mountable - 1u.
  • Processor: 1 X Arm - 800 Mhz.
  • Ram: 128 Mb - Ddr3 Sdram.
  • Flash Memory: 256 Mb.
  • Throughput: 41.6 Mbps.
  • Switching Capacity: 56 Gbps.

    Networking:
  • Ports: 24 X 10/100/1000 + 4 X Gigabit Sfp.
  • Mac Address Table Size: 16000 Entries.
  • Jumbo Frame Support: 9220.
  • Remote Management Protocol: Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli.
  • Encryption Algorithm: Ssl.
  • Authentication Method: Radius, Tacacs+, Secure Shell V.2 (ssh2).

Technical Specifications :

Port Ethernet Switch:

SpecificationDetails
Part Number J9776A
Product Type Managed Ethernet Switch
Brand HPE Aruba
Model 2530-24G-PoE+ 24-Port Switch
Total Ports 24 x 10/100/1000BASE-T (Gigabit Ethernet)
Uplink Ports 4 x Gigabit SFP (fiber)
PoE Support Yes, PoE+ (IEEE 802.3at)
PoE Power Budget 195W
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
Layer Layer 2 Switching
VLAN Support Up to 256 VLANs
MAC Address Table 16K entries
Management Web-based GUI, CLI, SNMP
Advanced Features Spanning Tree, ACLs, QoS, RADIUS, TACACS+
Stacking Capability No
Jumbo Frames Yes, up to 9,216 bytes
Energy Efficiency Energy-Efficient Ethernet (EEE), Auto Power Down
Security Features 802.1X, Port Security, DHCP Snooping, DoS Protection
Operating Temperature 0°C to 40°C (32°F to 104°F)
Dimensions 17.42 x 8.13 x 1.73 inches (442.5 x 206.5 x 44 mm)
Weight 6.6 lbs (3.0 kg)
Power Supply Internal power supply
