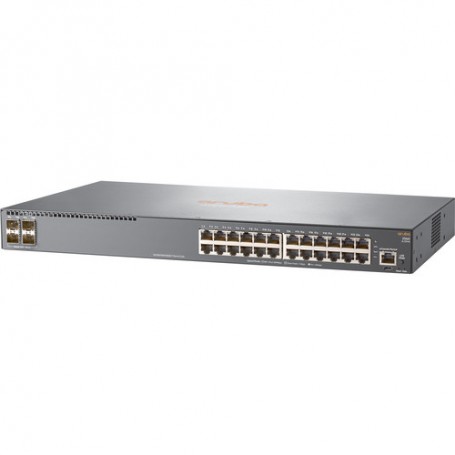

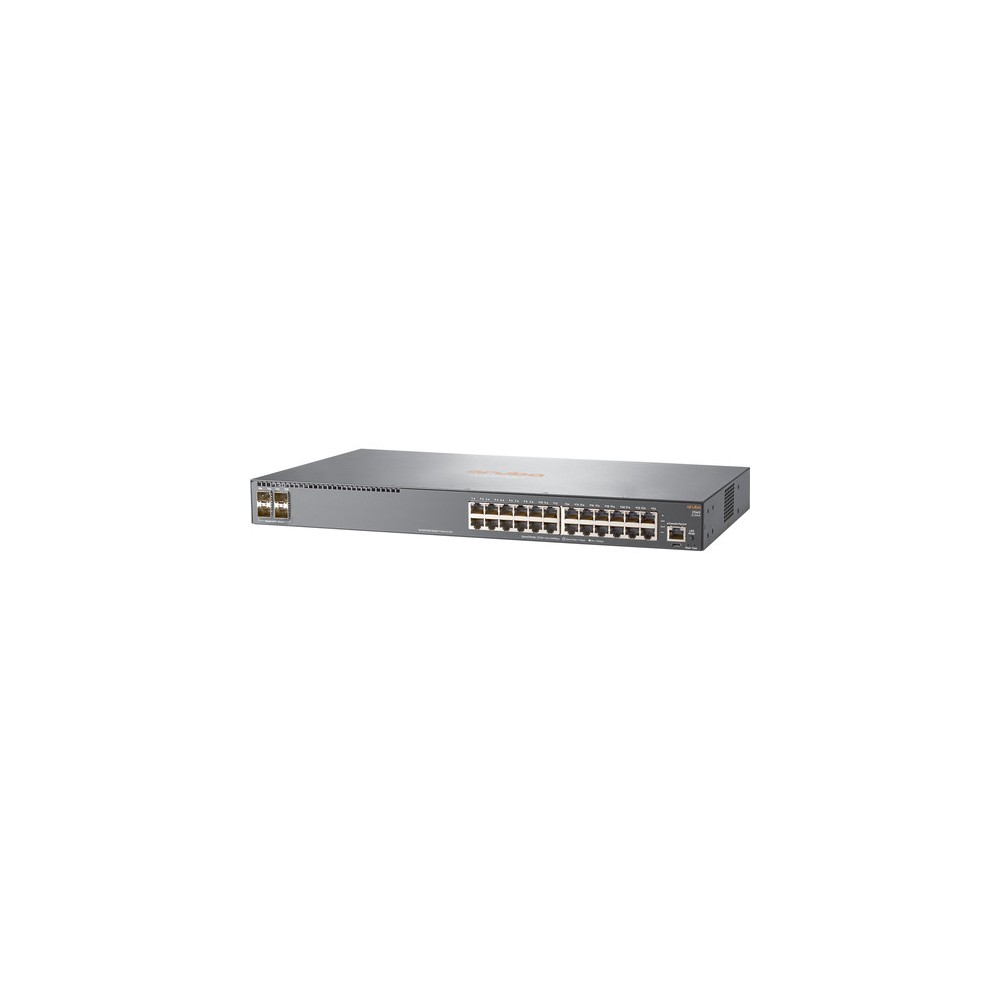

HPE Aruba JL354A 2540 24G 4SFP+24 ports switch View larger
Previous Next

HPE Aruba JL354A 2540 4SFP+24 ports Ethernet switch

New

HPE Aruba JL354A is a 24-port Gigabit Ethernet switch with 4 SFP+ ports
×




  • New

Detailed Specifications

HPE JL354A

Aruba 2540 24G 4SFP+ Ethernet Switch

The HPE Aruba JL354A 2540 24G 4SFP+ Ethernet Switch is a versatile Layer 3 managed switch built to meet the networking demands of SMBs and enterprise edge deployments. With 24 Gigabit ports and 4 high-speed SFP+ uplinks, it offers high throughput, security, and simplified management in a compact form factor. Designed for high availability and performance, this switch streamlines connectivity while maintaining energy efficiency.

Features :

The Aruba JL354A is part of the Aruba 2540 Series, purpose-built for reliable Layer 2 and basic Layer 3 connectivity. It supports VLANs, static routing, and policy-based traffic control, giving administrators the tools to segment and optimize network traffic. With a switching capacity of 128 Gbps, the JL354A ensures fast and uninterrupted data flow even in dense edge environments.

Advanced Options :

Its 4 SFP+ ports allow for flexible 10GbE uplinks, ideal for connecting to aggregation or core switches. Cloud-based management via Aruba Central offers a streamlined and modern interface for configuration, monitoring, and updates across distributed sites. The switch features built-in security measures like access control lists (ACLs), RADIUS-based authentication, and secure management protocols to safeguard network integrity. Its fanless, energy-conscious design also makes it suitable for open office spaces and classrooms where noise is a concern.

Product Key Features

  • 24 Gigabit Ethernet ports + 4 high-speed SFP+ uplink ports

  • Layer 3 static routing and robust traffic management

  • 128 Gbps switching capacity with 95.2 Mpps throughput

  • Energy-efficient design with fanless operation for quieter deployments

  • Enhanced security features including ACLs and 802.1X authentication

  • Simple web GUI, CLI, and cloud-based Aruba Central management

Reliability & Performance :

Engineered for operational efficiency, the JL354A delivers enterprise-grade reliability with advanced features like LLDP-MED, sFlow, and IPv6 host support. It integrates seamlessly into Aruba’s mobile-first architecture and supports software-defined network (SDN) applications. Its silent, fanless chassis enhances MTBF and is ideal for environments where low noise is crucial. The switch consumes minimal power, reducing both heat and long-term energy costs.

Key Features :

  • 24 x 10/100/1000Base-T ports

  • 4 x SFP+ 1/10G ports for uplink flexibility

  • 128 Gbps switching capacity

  • 16K MAC address table

  • Static Layer 3 routing

  • VLAN support, ACLs, and QoS

  • Aruba Central cloud-based or on-prem management

  • Energy-efficient, fanless design

  • IPv6 support and PoE+ ready architecture (via other 2540 models)

  • Compact 1U rackmount form factor

Specifications :

SpecificationDetails
Model Number JL354A
Product Name Aruba 2540 24G 4SFP+ Ethernet Switch
Type Layer 2/3 Managed Switch
Total Ports 24× 10/100/1000Base-T
Uplink Ports 4× 1/10G SFP+
Switching Capacity 128 Gbps
Forwarding Rate 95.2 Mpps
MAC Address Table 16,000 entries
Management Interface Web GUI, CLI, SNMP, Aruba Central
Dimensions (W×D×H) 44.25 × 24.61 × 4.39 cm (1U rackmount)
Weight 3.7 kg
Power Supply Internal AC Power Supply
Operating Temperature 0°C to 45°C
Mounting Rackmount (1U)
